CC 4033 (26A-BPH3710) - Cub Cadet Pressure Washer (2015) Engine-Fuel Tank Parts Diagram

Pressure Washer

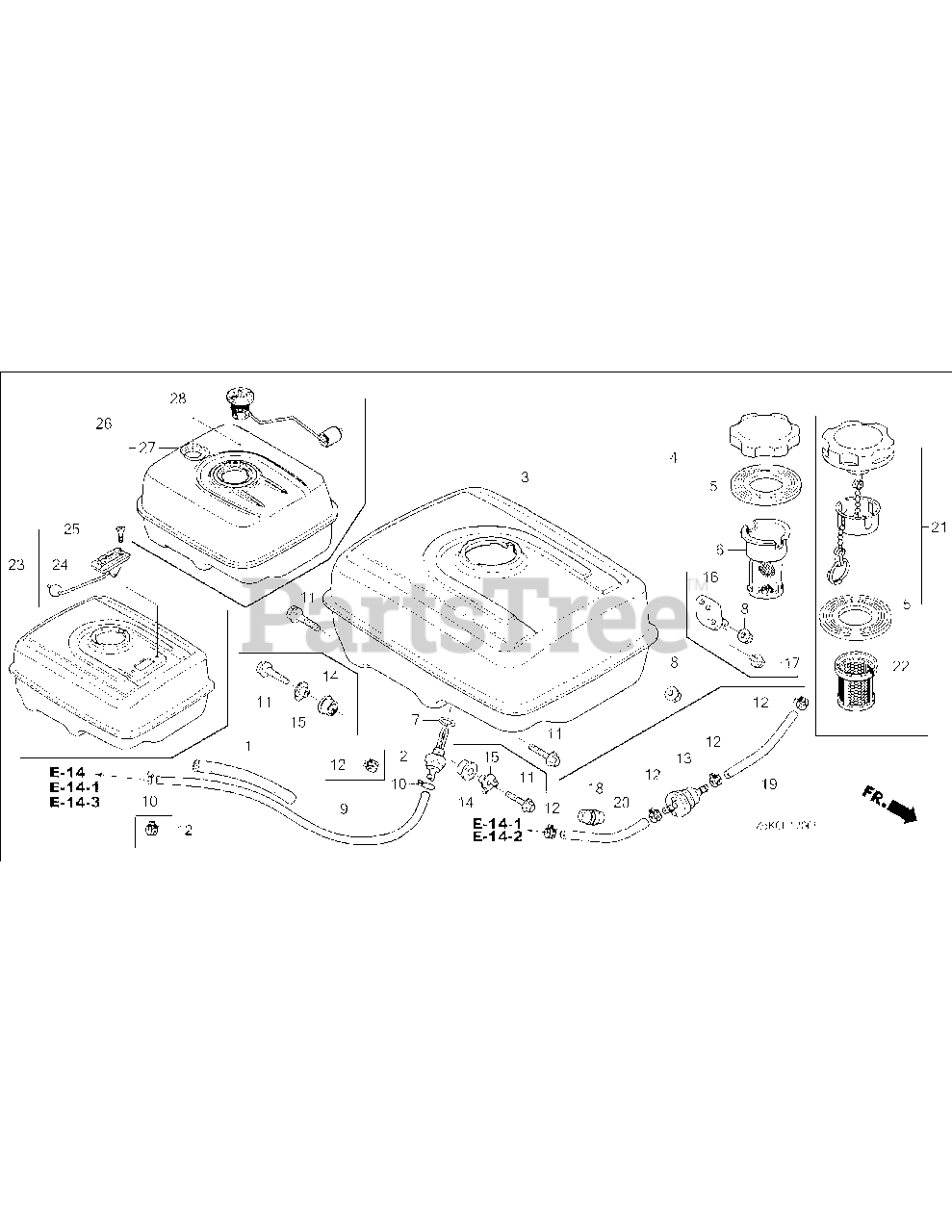

Engine-Fuel Tank Parts Diagram

  • Title

1

Honda 16854-ZH8-000

Rubber, Supporter(107Mm)

$5.49

$

In Stock, Qty 12

0

2

Honda 16955-ZE1-010

Joint, Fuel Tank

$8.99

$

In Stock, Qty 20+

0

3

Cub Cadet n/a

Tank Comp., Fuel

Note: Not used on this spec

$

$

Currently unavailable

4

Cub Cadet n/a

Cap Comp., Fuel Filler(Chrome Plated)(Radicon)

Note: Not used on this spec

$

$

Currently unavailable

5

Honda 17631-Z0T-801

Packing, Fuel Filler Cap(39X62X3)

$0.99

$

In Stock, Qty 8

0

6

Cub Cadet n/a

Filter, Fuel

Note: Not used on this spec

$

$

Currently unavailable

7

Honda 91353-671-004

O-Ring, 14Mm(Nok)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

8

Honda 94050-08000

Nut, Flange, 8Mm

$1.49

$

In Stock, Qty 20+

0

9

Honda 91424-Z5K-003

Tube, Fuel, 4.5X210(Fkm)
(Superseded to 91424-Z5K-013)

$12.99

$

In Stock, only 2 left!

0

10

Cub Cadet n/a

Clip, Tube(B8)

Note: Not used on this spec

$

$

Currently unavailable

11

Honda 95701-08025-00

Bolt, Flange, 8X25

$2.49

$

In Stock, only 1 left!

0

12

Honda 95002-40800-08

Clamp, Tube(D8)

$2.99

$

In Stock, only 4 left!

0

13

Cub Cadet n/a

Strainer Comp., Fuel

Note: Not used on this spec

$

$

Currently unavailable

14

Cub Cadet n/a

Rubber A, Tank Mounting

Note: Not used on this spec

$

$

Currently unavailable

15

Cub Cadet n/a

Nut, Tank Mounting

Note: Not used on this spec

$

$

Currently unavailable

16

Cub Cadet n/a

Rubber Comp., Tank Mounting

Note: Not used on this spec

$

$

Currently unavailable

17

Cub Cadet n/a

Bolt, Flange, 6X10

Note: Not used on this spec

$

$

Currently unavailable

18

Cub Cadet n/a

Rubber, Fuel(9X15X20)

Note: Not used on this spec

$

$

Currently unavailable

19

Cub Cadet n/a

Tube, Fuel, 4.5X150(Fkm)

Note: Not used on this spec

$

$

Currently unavailable

20

Cub Cadet n/a

Tube, Fuel, 4.5X120(Fkm)

Note: Not used on this spec

$

$

Currently unavailable

21

Honda 17620-Z4H-030

Cap Comp., Fuel Filler
(Superseded to 17620-Z4H-900)

$79.99

$

Usually ships in 3-6 days

0

22

Honda 17672-Z4H-000

Filter, Fuel

$11.99

$

In Stock, only 4 left!

0

23

Cub Cadet n/a

Tank Assy., Fuel(Gauge)

Note: Not used on this spec

$

$

Currently unavailable

24

Cub Cadet n/a

Gauge Assy., Fuel

Note: Not used on this spec

$

$

Currently unavailable

25

Cub Cadet n/a

Screw, Flat, 5X10

Note: Not used on this spec

$

$

Currently unavailable

26

Cub Cadet n/a

Tank Assy., Fuel(Gauge)

Note: Not used on this spec

$

$

Currently unavailable

27

Honda 17510-Z5K-000ZA

Tank Comp., Fuel

$66.99

$

Usually ships in 3-6 days

0

28

Cub Cadet n/a

Gauge Assy., Fuel

Note: Not used on this spec

$

$

Currently unavailable
