CC 4025 (41ADC42C712) - Cub Cadet String Trimmer (2006) Boom And Trimmer Parts Diagram

String Trimmer

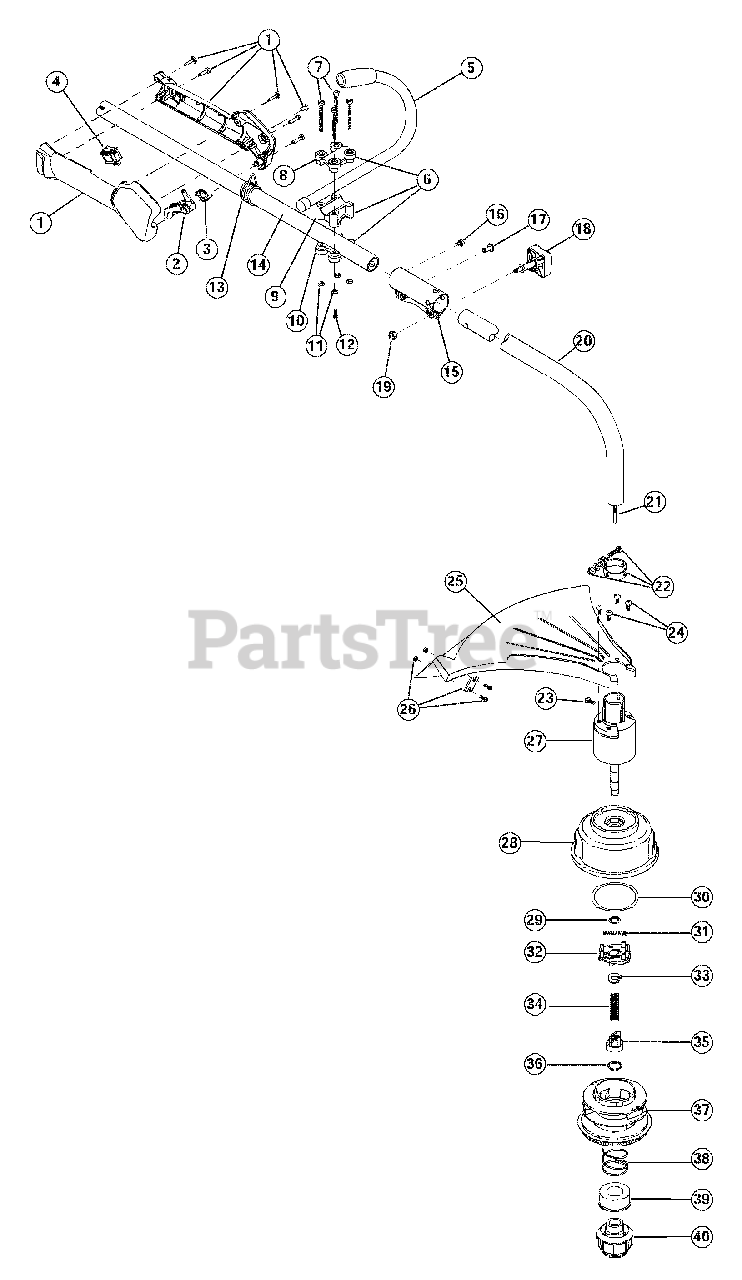

Boom And Trimmer Parts Diagram

  • Title

1

Cub Cadet 791-00057

Throttle Housing Assembly (includes 2-4)

$

$

Not available

2

Cub Cadet 791-00058

Throttle Trigger
(Superseded to 753-06754)

$7.49

$

In Stock, only 1 left!

0

3

Cub Cadet 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

Cub Cadet 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

5

Cub Cadet 791-180687

J-Handle Assembly

$41.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 791-683295

Handle Bracket Assembly (includes 7-12)

$45.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 791-181812

Upper Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 791-181814

Lower Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 791-181815

Nut

$4.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

13

Cub Cadet 791-610327

Harness Clip

$32.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 753-04503

Upper Drive Shaft Housing Assembly

$

$

Not available

15

Cub Cadet 791-181616B

Split Boom Coupler (includes 16-19)
(Superseded to 753-1190)

$23.99

$

In Stock, only 1 left!

0

16

Cub Cadet 791-182057

Screw

$4.49

$

In Stock, only 3 left!

0

17

Cub Cadet 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

18

Cub Cadet 791-181618

Adjustment Knob (includes 19)
(Superseded to 791-181981)

$

$

Not available

19

Cub Cadet 753-04386

Knob Retaining Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 5

0

20

Cub Cadet 753-04304

Lower Drive Shaft Housing Assembly

$57.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 791-181852

Lower Flexible Drive Shaft

$59.99

$

In Stock, Qty 11

0

22

Cub Cadet 791-153597

Lower Clamp Assembly

$

$

Not available

23

Cub Cadet 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

24

Cub Cadet 791-180531

Shield Mounting Hardware
(Superseded to 791-181858)

$

$

Not available

25

Cub Cadet 791-181659

Shield Assembly (includes 26)

$

$

Not available

26

Cub Cadet 791-181823

Blade Assembly

$12.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 791-181857

Bushing Housing Assembly

$

$

Not available

28

Cub Cadet 791-181457

Outer Spool Assembly (includes 29)

$39.99

$

In Stock, only 1 left!

0

29

Cub Cadet 791-181458

Retaining Ring

$4.49

$

In Stock, Qty 12

0

30

Cub Cadet 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 5

0

31

Cub Cadet 791-181459

Small Spring

$4.49

$

In Stock, only 2 left!

0

32

Cub Cadet 753-04257

Slider

$7.49

$

In Stock, Qty 20+

0

33

Cub Cadet 791-181532

E-Clip

$4.49

$

In Stock, Qty 8

0

34

Cub Cadet 791-181531

Spring

$4.49

$

In Stock, Qty 9

0

35

Cub Cadet 791-181462

Plunger

$

$

Not available

36

Cub Cadet 791-181463

C-Clip

$3.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 791-181464

Inner Reel
(Superseded to 791-181460B)

$32.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 791-181465B

Large Spring

$10.99

$

In Stock, only 1 left!

0

39

Cub Cadet 791-181467

Foam Seal

$

$

Not available

40

Cub Cadet 791-181468

Bump Head Knob Assembly (includes 38 & 39)
(Superseded to 791-181468B)

$

$

Not available

Cub Cadet 791-180120

Replacement Line, 0.095 Diameter Optional Accessory
(Superseded to 953-1156)

Note: Not Shown

$31.99

$

In Stock, only 1 left!

0

Cub Cadet 753-04218

Reel and Line Assembly Optional Accessory

Note: Not Shown

$

$

Not available

Cub Cadet 791-682075

Shoulder Strap Assembly Optional Accessory
(Superseded to 791-682075B)

Note: Not Shown

$38.99

$

Usually ships in 3-6 days

0

Cub Cadet 791-181469B

Head Assembly Optional Accessory

Note: includes 27 - 40, Not Shown

$

$

Not available
