CC 370 (41ADZ37C912) - Cub Cadet String Trimmer (2014) General Assembly Parts Diagram

String Trimmer

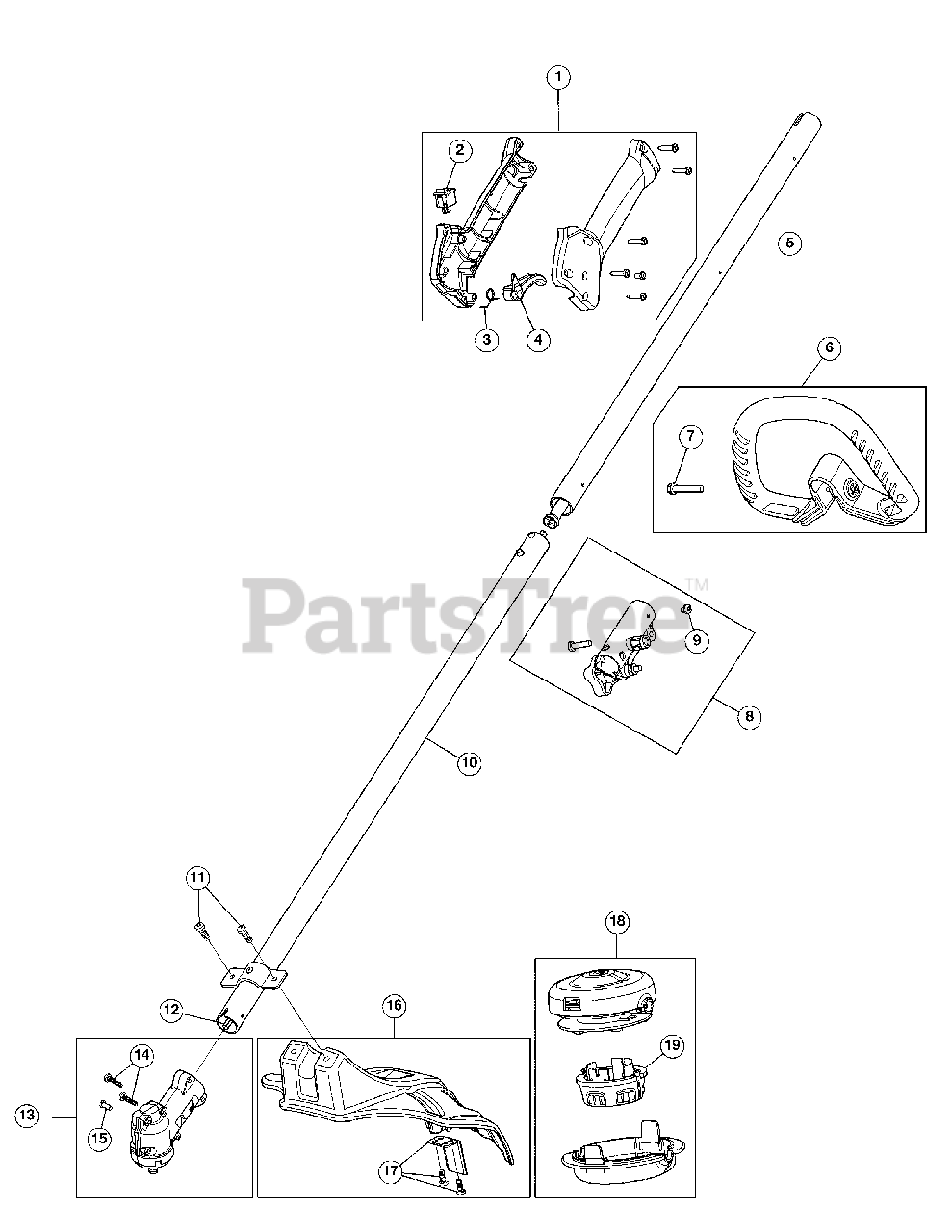

General Assembly Parts Diagram

  • Title

1

Cub Cadet 753-06917

Throttle Housing Assembly (Incl. 2 - 4)

$5.99

$

In Stock, only 4 left!

0

2

Cub Cadet 791-182405

Trigger Switch Assembly

$10.99

$

In Stock, Qty 12

0

3

Cub Cadet 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

Cub Cadet 753-06918

Throttle Trigger

$3.49

$

In Stock, Qty 6

0

5

Cub Cadet 753-08147

Upper Drive Shaft Assembly

$21.99

$

In Stock, only 3 left!

0

6

Cub Cadet 753-06039

D-Handle Assembly (Incl. 7)

$11.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 753-06040

Bolt

$6.99

$

In Stock, only 1 left!

0

8

Cub Cadet 753-08148

Split Boom Coupler (Incl. 9)

$15.99

$

In Stock, only 1 left!

0

9

Cub Cadet 791-182057

Coupler Anti-Rotation Screw

$4.49

$

In Stock, Qty 6

0

10

Cub Cadet 753-08150

Lower Drive Shaft Housing

$

$

Not available

11

Cub Cadet 753-06125

Shield Mounting Screws

$6.99

$

In Stock, only 4 left!

0

12

Cub Cadet 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, only 1 left!

0

13

Cub Cadet 753-08122

Gearbox Assembly (Incl. 14 and 15)

$24.99

$

In Stock, Qty 16

0

14

Cub Cadet 7039

Gearbox Mounting Hardware

$4.99

$

In Stock, only 2 left!

0

15

Cub Cadet 791-182519

Gearbox Anti-Rotation Screw

$4.99

$

In Stock, only 4 left!

0

16

Cub Cadet 753-08177

Shield Assembly (Incl. 17)

$12.99

$

In Stock, only 2 left!

0

17

Cub Cadet 753-08178

Blade Assembly

$2.99

$

In Stock, Qty 5

0

18

Cub Cadet 753-08151

Cutting Head Assembly (Incl. 19)

$18.99

$

In Stock, only 1 left!

0

19

Cub Cadet 753-08152

Bump Knob
(Superseded to 753-08157)

$5.49

$

In Stock, Qty 9

0
