CC 370 (41ADZ37C912) - Cub Cadet String Trimmer (2014) Engine Assembly Parts Diagram

String Trimmer

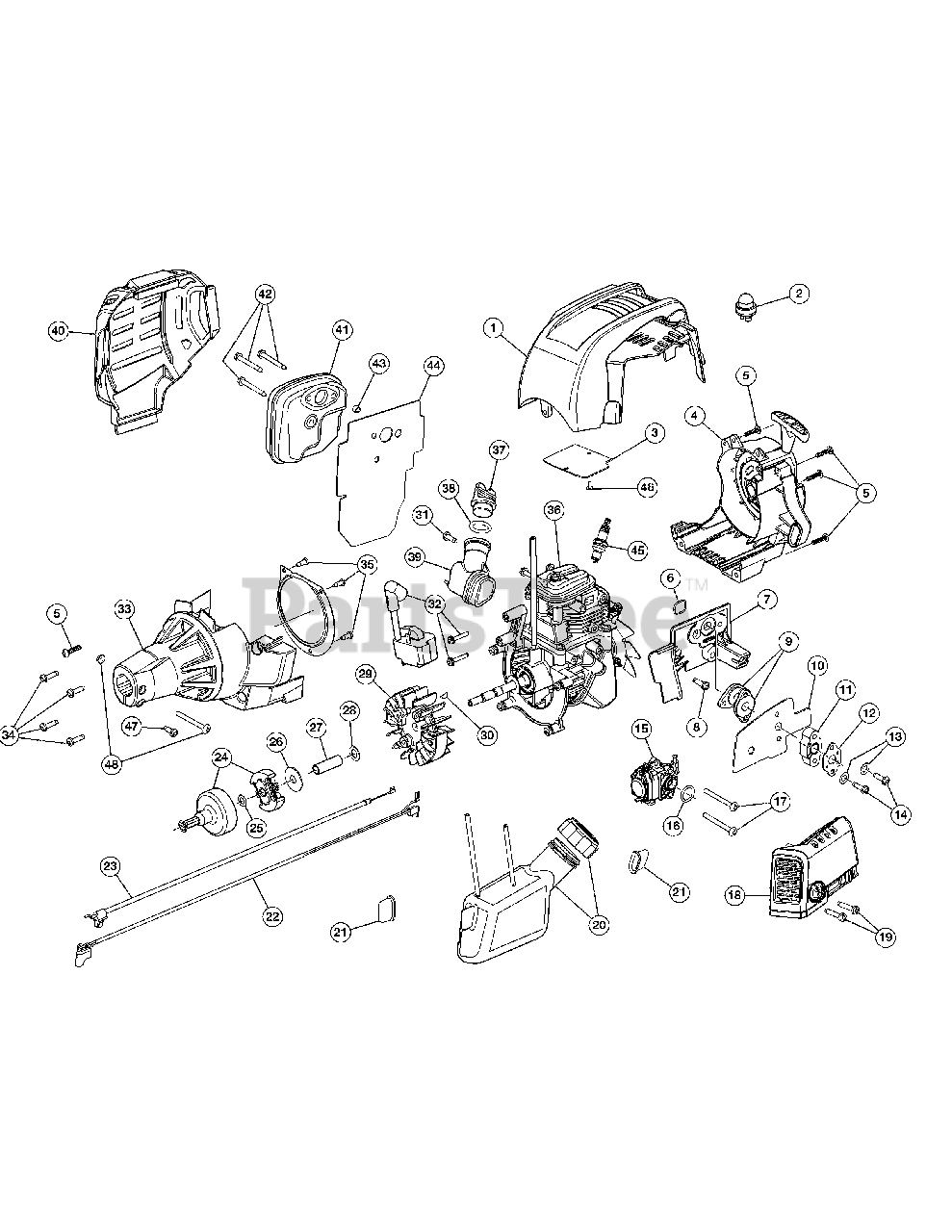

Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 753-08117

Top Housing Assembly (Incl. 3 & 46)

$15.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 731-05509

Air Purge Primer

$

$

Not available

3

Cub Cadet 721-04637

Top Cover Gasket

$2.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 753-08110

Starter Housing Assembly (Incl. 5)

$23.99

$

In Stock, Qty 8

0

5

Cub Cadet 710-04194

Screw

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 721-04466

O-Ring

$2.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 731-08365

Intake Port

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

9

Cub Cadet 753-08053

Boot Assembly

$21.99

$

In Stock, only 1 left!

0

10

Cub Cadet 721-04644

Carburetor Gasket

$2.99

$

In Stock, only 4 left!

0

11

Cub Cadet 731-08857A

Insulator
(Superseded to 753-06938)

$3.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 791-181709

Insulator Gasket

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 791-182409

Washer

$4.99

$

In Stock, Qty 5

0

14

Cub Cadet 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

15

Cub Cadet 753-08203

Carburetor Assembly (Incl. 16)
(Superseded to 753-08057)

$36.99

$

In Stock, Qty 10

0

16

Cub Cadet 791-181751

O-Ring

$4.49

$

In Stock, Qty 19

0

17

Cub Cadet 710-04517

Screw

$5.49

$

In Stock, Qty 20+

0

18

Cub Cadet 753-08111

Air Cleaner Assembly (Incl. 19)

$14.99

$

In Stock, only 3 left!

0

19

Cub Cadet 710-06106

Screw

$2.99

$

In Stock, Qty 9

0

20

Cub Cadet 941-031506S

Fuel Tank Assembly

$17.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 753-05259

Fuel Tank Pad

$6.99

$

In Stock, Qty 20+

0

22

Cub Cadet 753-06167

Lead Wire
(Superseded to 794-00047A)

$5.99

$

In Stock, Qty 7

0

23

Cub Cadet 746-05053

Throttle Cable

$5.49

$

In Stock, only 1 left!

0

24

Cub Cadet 753-05860

Clutch Assembly (Incl. 25 & 26)

$25.99

$

In Stock, Qty 9

0

25

Cub Cadet 791-182569

Thrust Washer
(Superseded to 6674)

$3.49

$

In Stock, only 1 left!

0

26

Cub Cadet 9162-1

Clutch Washer

$4.49

$

In Stock, only 3 left!

0

27

Cub Cadet 2557

Power Shaft Spacer

$2.99

$

In Stock, only 2 left!

0

28

Cub Cadet 936-0314

Washer
(Superseded to 736-0314)

$

$

Not available

29

Cub Cadet 753-06246

Flywheel Assembly (Incl. 30)

$21.99

$

In Stock, only 1 left!

0

30

Cub Cadet 914-04016

Key

$4.49

$

In Stock, Qty 11

0

31

Cub Cadet 9054

Screw

$4.49

$

In Stock, only 4 left!

0

32

Cub Cadet 753-08209

Module Assembly

$34.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 753-08056

Clutch Cover Assembly (Incl. 35)

$

$

Not available

34

Cub Cadet 710-04604

Screw

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 1755

Screw

$3.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 941-012021S

Short Block Assembly

$130.99

$

In Stock, only 1 left!

0

37

Cub Cadet 731-08920-9

Oil Fill Plug
(Superseded to 731-08920A-9)

$2.99

$

In Stock, only 2 left!

0

38

Cub Cadet 721-04509

O-Ring

$2.99

$

In Stock, only 4 left!

0

39

Cub Cadet 753-08204

Oil Fill Tube Assembly (Incl. 37 & 38)

$11.99

$

In Stock, only 4 left!

0

40

Cub Cadet 731-08903T-1

Muffler Housing
(Superseded to 753-08338)

$6.99

$

In Stock, only 1 left!

0

41

Cub Cadet 753-08205

Muffler Assembly (Incl. 42 - 44)

$15.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 710-04487

Screw
(Superseded to 710-04809)

$3.49

$

In Stock, Qty 5

0

43

Cub Cadet 750-06057

Air Cleaner Spacer

$

$

Not available

44

Cub Cadet 721-04508

Muffler Gasket

$2.99

$

In Stock, Qty 9

0

45

Cub Cadet 794-00043

Spark Plug
(Superseded to 794-00082)

$7.49

$

In Stock, Qty 5

0

46

Cub Cadet 710-05279A

Screw

$2.99

$

In Stock, only 3 left!

0

47

Cub Cadet 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 4 left!

0

48

Cub Cadet 753-04291

Clamp Hardware

$

$

Not available
