CC 3425 (26A-AJH2710) - Cub Cadet Pressure Washer (2015) Engine-Cylinder Head Parts Diagram

Pressure Washer

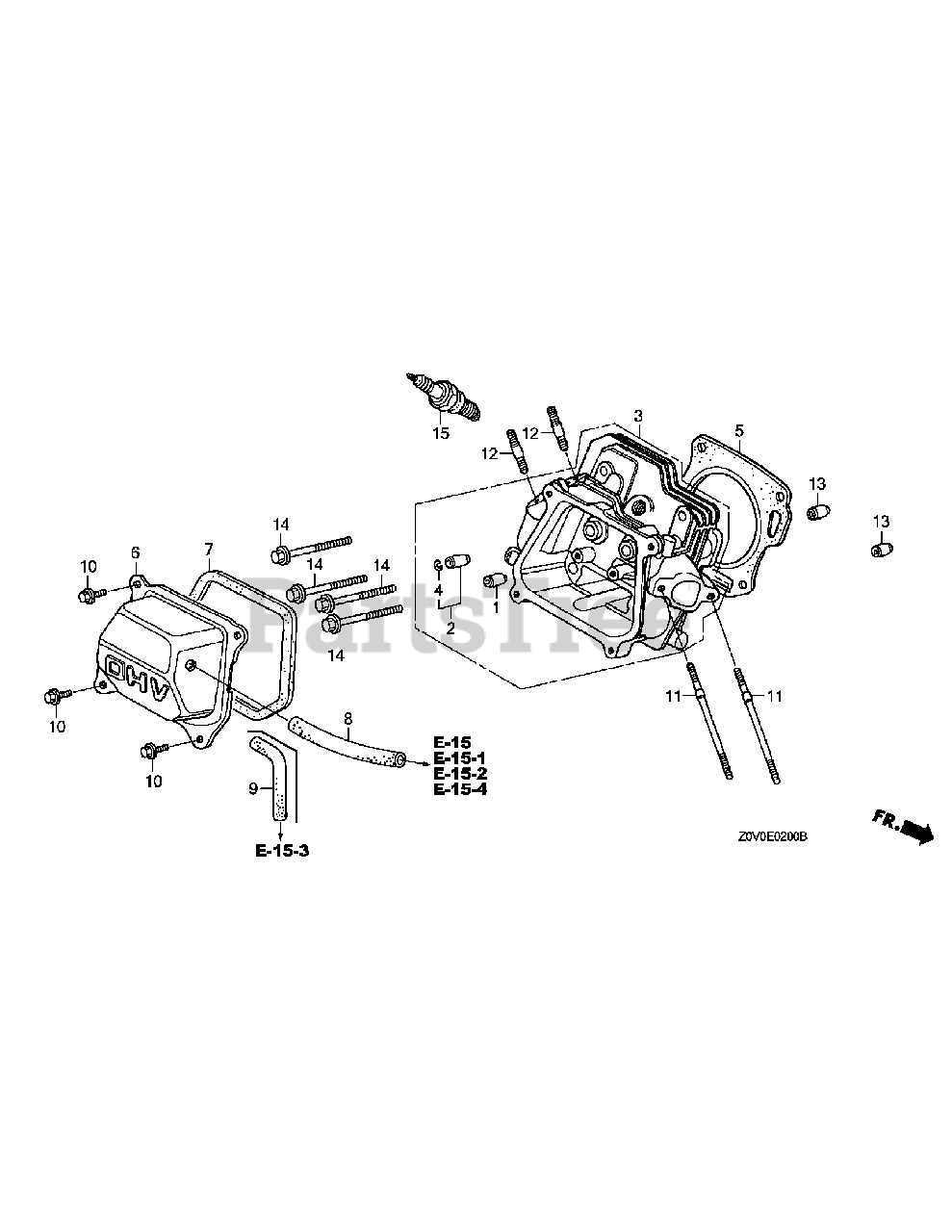

Engine-Cylinder Head Parts Diagram

  • Title

1

Honda 12204-ZE1-306

Guide, In. Valve(O.S.)

$9.99

$

Usually ships in 3-6 days

0

2

Honda 12205-ZE1-315

Guide, Ex. Valve(O.S.)

$10.99

$

In Stock, only 2 left!

0

3

Honda 12210-ZL0-415

Head Comp., Cylinder
(Superseded to 12210-ZL0-425)

$79.99

$

Usually ships in 3-6 days

0

4

Honda 12216-ZE5-300

Clip, Valve Guide

$1.99

$

In Stock, Qty 17

0

5

Honda 12251-ZL0-003

Gasket, Cylinder Head

$26.99

$

In Stock, only 4 left!

0

6

Honda 12310-Z4M-000

Cover Comp., Head

$5.49

$

Usually ships in 3-6 days

0

7

Honda 12391-ZE1-000

Packing, Head Cover

$5.49

$

In Stock, Qty 20+

0

8

Honda 15721-ZH8-000

Tube, Breather

$4.99

$

In Stock, Qty 11

0

9

Cub Cadet n/a

Tube, Breather

Note: Not used on this spec

$

$

Currently unavailable

10

Honda 90013-883-000

Bolt, Flange, 6X12(Ct200)

$2.49

$

In Stock, Qty 17

0

11

Honda 90043-ZE1-020

Bolt, Stud, 6X112

$6.99

$

In Stock, only 1 left!

0

12

Honda 90047-ZE1-000

Bolt, Stud, 8X32

$4.99

$

In Stock, only 1 left!

0

13

Honda 94301-10160

Dowel Pin, 10X16

$3.49

$

In Stock, only 3 left!

0

14

Cub Cadet 95701-0806-000

Bolt, Flange, 8X60

$2.49

$

Usually ships in 3-6 days

0

15

Honda 98079-56846

Plug, Spark(Bpr6Es)(Ngk)

$3.99

$

In Stock, Qty 20+

0

15

Honda 98079-55846

Plug, Spark(Bpr5Es)(Ngk)

$3.99

$

In Stock, Qty 20+

0
