CC 3425 (26A-AJH2710) - Cub Cadet Pressure Washer (2015) Engine-Cylinder Barrel Parts Diagram

Pressure Washer

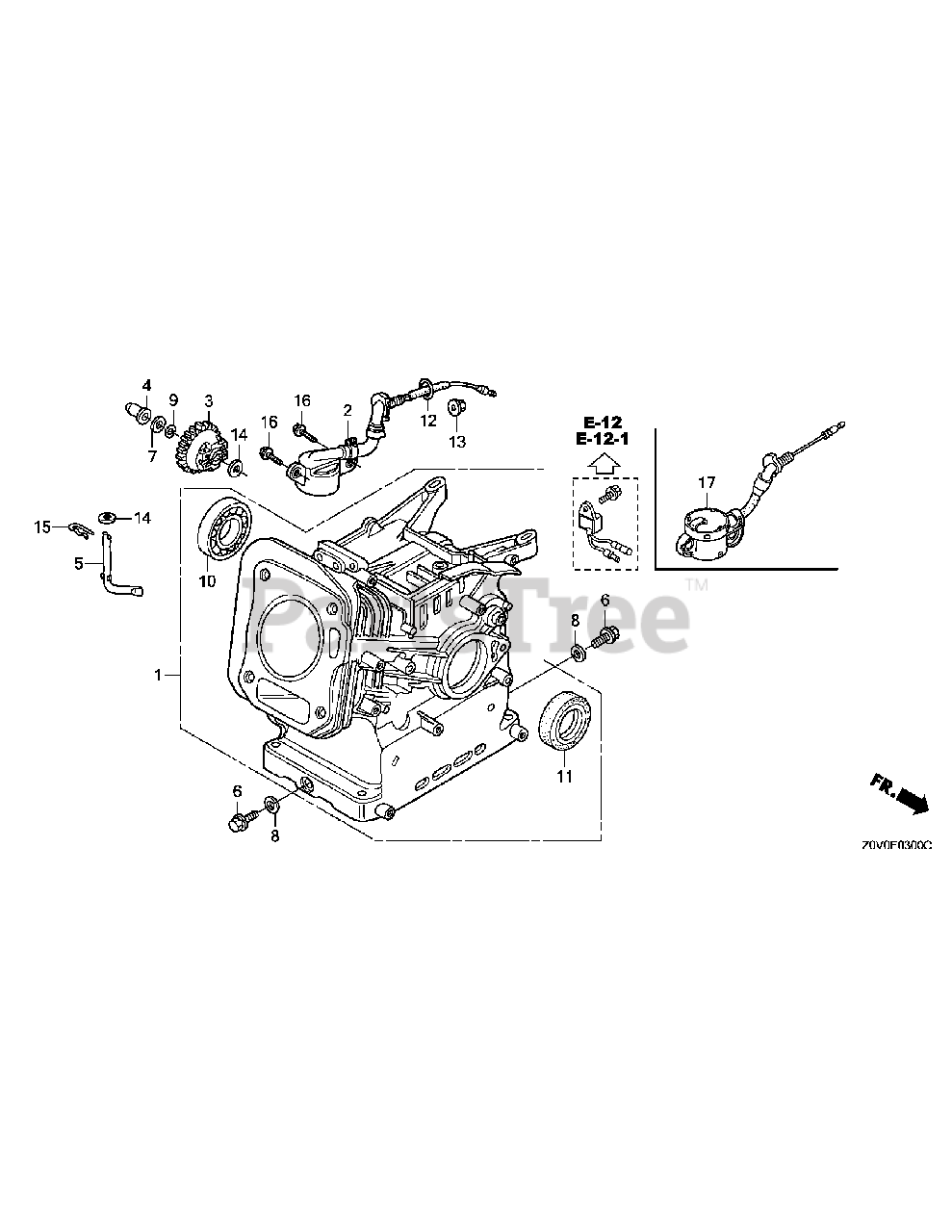

Engine-Cylinder Barrel Parts Diagram

  • Title

1

Honda 12000-Z4V-416

Barrel Assy., Cylinder
(Superseded to 12000-Z4V-426)

$108.99

$

Usually ships in 3-6 days

0

2

Cub Cadet n/a

Switch Assy., Oil Level

Note: Not used on this model

$

$

Currently unavailable

3

Honda 16506-ZL0-000

Governor Assy.

$31.99

$

In Stock, only 1 left!

0

4

Honda 16531-ZE1-000

Slider, Governor

$3.49

$

In Stock, only 1 left!

0

5

Honda 16541-ZE1-000

Shaft, Governor Arm

$13.99

$

Usually ships in 3-6 days

0

6

Honda 90131-ZE1-000

Bolt, Drain Plug

$3.49

$

In Stock, only 1 left!

0

7

Honda 90451-ZE1-000

Washer, Thrust, 6Mm

$1.99

$

In Stock, Qty 5

0

8

Honda 90601-ZE1-000

Washer, Drain Plug, 10.2Mm

$1.49

$

In Stock, Qty 20+

0

9

Honda 90602-ZE1-000

Clip, Governor Holder

$1.99

$

In Stock, Qty 6

0

10

Honda 91001-Z4X-003

Bearing, Radial Ball, 6205 (Nsk)

$12.99

$

Usually ships in 3-6 days

0

11

Honda 91201-Z0T-801

Oil Seal, 25X41X6

$8.99

$

Usually ships in 3-6 days

0

12

Honda 91353-671-004

O-Ring, 14Mm(Nok)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

13

Honda 94050-10000

Nut, Flange, 10Mm

$1.99

$

In Stock, Qty 6

0

14

Honda 94101-06800

Washer, Plain, 6Mm

$0.99

$

In Stock, Qty 20+

0

15

Honda 94251-08000

Pin, Lock, 8Mm

$1.99

$

In Stock, Qty 13

0

16

Honda 95701-06012-00

Bolt, Flange, 6X12

$2.49

$

In Stock, Qty 20+

0

17

Honda 35480-Z0T-003

Switch Assy., Oil Level

$77.99

$

Usually ships in 3-6 days

0
