CC 3400 (26B-AJM1710) - Cub Cadet Pressure Washer (2019) General Assembly (CA) Parts Diagram

Pressure Washer

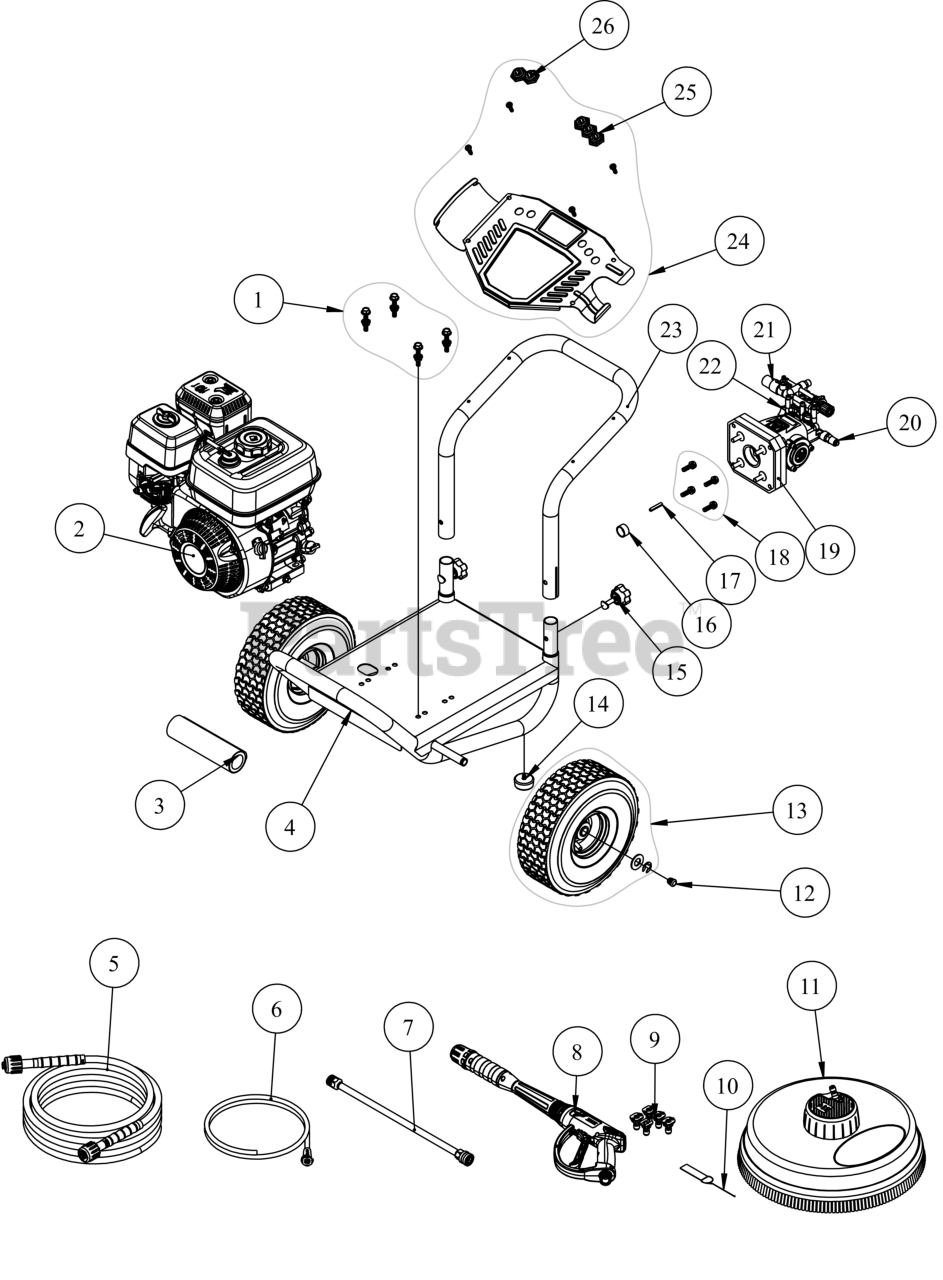

General Assembly (CA) Parts Diagram

  • Title
1

Cub Cadet FNA-7103750

MOUNTING KIT: ENGINE

$16.99

$

Usually ships in 3-6 days

0

2

Cub Cadet FNA-110035

ENGINE, GB210 208CC 50 STATE BLK HORIZ

$

$

Currently unavailable

3

Cub Cadet FNA-7107408

GRIP-HANDLE

$29.99

$

Usually ships in 3-6 days

0

4

Cub Cadet FNA-7109092

FRAME, BASE WELDMENT

$

$

Currently unavailable

5

Cub Cadet FNA-7106622

MORFLEX HOSE (5/16 x 25')

$

$

Not available

6

Cub Cadet FNA-7102207

HOSE-SOAP W/FILTER

$

$

Not available

7

Cub Cadet FNA-7103550

WAND-SPRAY GUN 16"

$

$

Not available

8

Cub Cadet FNA-7109565

SPRAY GUN (3600PSI M22)

$

$

Not available

9

Cub Cadet FNA-7109338

5 PIECE NOZZLE SET

$

$

Not available

10

Cub Cadet FNA-7102045

TOOL-NOZZLE CLEANING

$8.49

$

Usually ships in 3-6 days

0

11

Cub Cadet FNA-7108237

15" SURFACE SCRUBBER

$

$

Currently unavailable

12

Cub Cadet FNA-7111195

CAP, PLASTIC, 5/8 HOLLOW AXLE

$

$

Currently unavailable

13

Cub Cadet FNA-7108473

10" WHEEL (BEIGE)

$47.99

$

Usually ships in 3-6 days

0

14

$

$

Not available

15

Cub Cadet FNA-7107941

KNOB-HANDLE MTG

$9.49

$

Usually ships in 3-6 days

0

16

Cub Cadet FNA-7111995

SPACER, 3/4" ENGINE SHAFT

$

$

Currently unavailable

17

Cub Cadet FNA-7104174

SHAFT KEY (3/16x3/16x1.25)

$8.49

$

Usually ships in 3-6 days

0

18

Cub Cadet FNA-7105474

HARDWARE KIT: PUMP MOUNTING

$21.99

$

Usually ships in 3-6 days

0

19

Cub Cadet FNA-540001

AX300 PUMP

Note: (See separate breakdown)

$

$

Not available

20

Cub Cadet FNA-7101359

VALVE-THERMAL RELIEF

$

$

Not available

21

Cub Cadet FNA-7106686

CONNECTOR-OUTLET PRESR WASH

$

$

Not available

22

Cub Cadet FNA-7112362

INLET KIT-WATER PRESR WASH

$

$

Not available

23

Cub Cadet FNA-7110737

HANDLE, CUB YELLOW

$

$

Currently unavailable

24

Cub Cadet FNA-7113434

DASHBOARD SVC ASSY

$

$

Currently unavailable

25

Cub Cadet FNA-7107068

HOLDER-NOZZLE 3 PC

$4.49

$

Usually ships in 3-6 days

0

26

Cub Cadet FNA-7107067

HOLDER-NOZZLE 2 PC

$3.49

$

Usually ships in 3-6 days

0
