CC 3400 (26B-AJM1710) - Cub Cadet Pressure Washer (2019) GB210 FNA Engine Parts Diagram

Pressure Washer

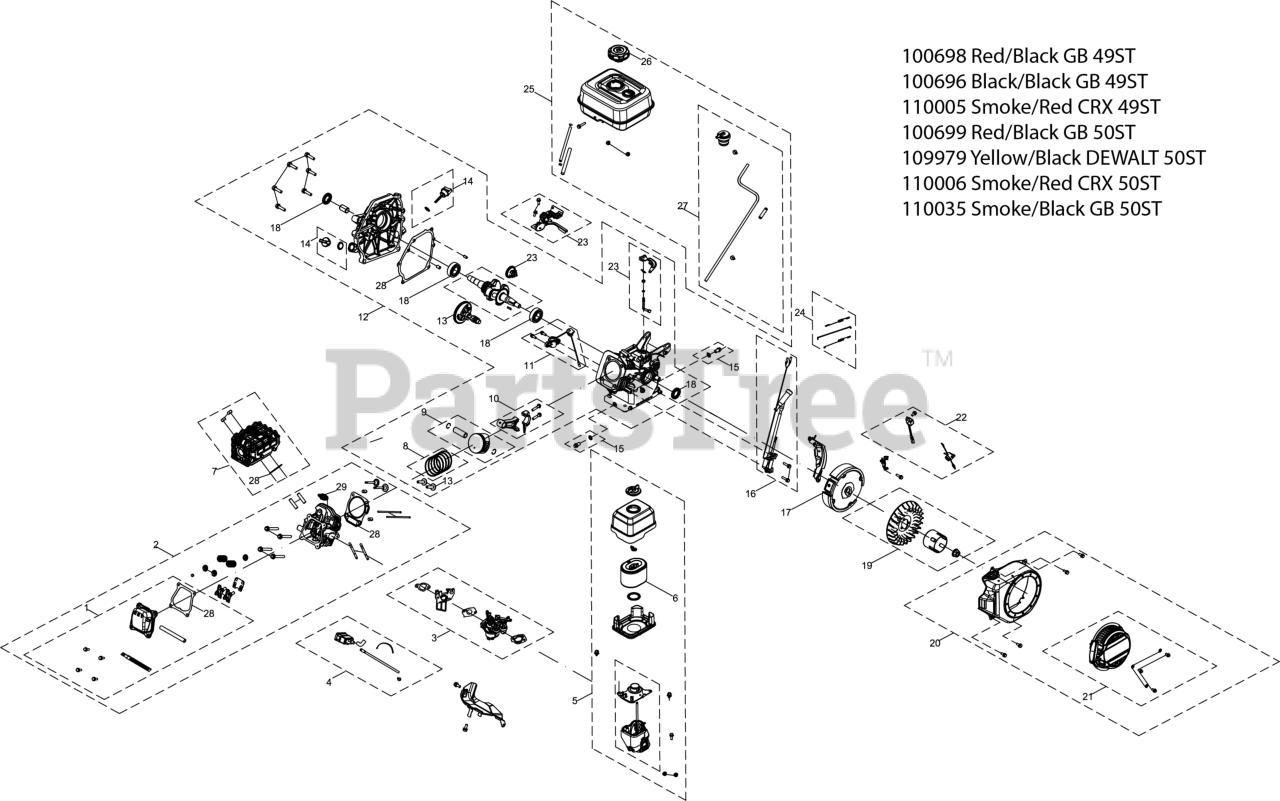

GB210 FNA Engine Parts Diagram

  • Title

1

Cub Cadet 7111111

VALVE COVER KIT

Note: 100698/100696/110005(49ST) 100699/109979/110006/110035(50ST)

$

$

Currently unavailable

2

Cub Cadet 7111112

CYLINDER HEAD KIT

Note: 100698/100696/110005(49ST)

$

$

Currently unavailable

2

Cub Cadet 7117104

CYLINDER HEAD KIT

Note: 100699/109979/110006/110035(50ST)

$

$

Currently unavailable

3

Cub Cadet 7111113

CARBURETOR KIT

Note: 100698/100696/110005(49ST) 100699/109979/110006/110035(50ST)

$

$

Currently unavailable

4

Cub Cadet 7117151

CARBON CANISTER KIT

Note: 100699/109979/110006/110035(50ST)

$

$

Currently unavailable

5

Cub Cadet 7111114

AIR FILTER ASSEMBLY

Note: 100698/100696/110005(49ST) 100699/109979/110006/110035(50ST)

$

$

Currently unavailable

6

Cub Cadet 7111115

AIR FILTER ELEMENT

Note: 100698/100696/110005(49ST) 100699/109979/110006/110035(50ST)

$

$

Currently unavailable

7

Cub Cadet 7111133

MUFFLER KIT

Note: 100698/100696/110005(49ST) 100699/109979/110006/110035(50ST)

$

$

Currently unavailable

8

Cub Cadet 7111116

PISTON RING SET

Note: 100698/100696/110005(49ST) 100699/109979/110006/110035(50ST)

$

$

Currently unavailable

9

Cub Cadet 7111117

PISTON KIT

Note: 100698/100696/110005(49ST) 100699/109979/110006/110035(50ST)

$

$

Currently unavailable

10

Cub Cadet 7111118

CONNECTING ROD KIT

Note: 100698/100696/110005(49ST) 100699/109979/110006/110035(50ST)

$

$

Currently unavailable

11

Cub Cadet 7114209

LOW OIL SENSOR KIT

Note: 100698/100696/110005(49ST) 100699/109979/110006/110035(50ST)

$

$

Currently unavailable

12

Cub Cadet 7111137

SHORT BLOCK KIT

Note: 100698/100696/110005(49ST) 100699/109979/110006/110035(50ST)

$

$

Currently unavailable

13

Cub Cadet 7111119

CAM&TAPPET SET

Note: 100698/100696/110005(49ST) 100699/109979/110006/110035(50ST)

$

$

Currently unavailable

14

Cub Cadet 7111128

OIL DIP STICK KIT

Note: 100698/100696/110005(49ST) 100699/109979/110006/110035(50ST)

$

$

Currently unavailable

15

Cub Cadet 7111129

OIL DRAIN PLUG KIT

Note: 100698/100696/110005(49ST) 100699/109979/110006/110035(50ST)

$

$

Currently unavailable

16

Cub Cadet 7111132

IGNITION MODULE KIT

Note: 100698/100696/110005(49ST) 100699/109979/110006/110035(50ST)

$

$

Currently unavailable

17

Cub Cadet 7117126

FLY WHEEL

Note: 100698/100696/110005(49ST) 100699/109979/110006/110035(50ST)

$

$

Currently unavailable

18

Cub Cadet 7114230

OIL SEAL AND BEARING KIT

Note: 100698/100696/110005(49ST) 100699/109979/110006/110035(50ST)

$

$

Currently unavailable

19

Cub Cadet 7111125

STARTER CUP/FAN KIT

Note: 100698/110005(49ST) 100699/109979/110006(50ST)

$

$

Currently unavailable

19

Cub Cadet 7117128

STARTER CUP/FAN KIT

Note: 100696(49ST)/110035(50ST)

$

$

Currently unavailable

20

Cub Cadet 7117130

RECOIL & BLOWER HOUSING KIT

Note: 100698(49ST)/100699(50ST)

$

$

Currently unavailable

20

Cub Cadet 7117131

RECOIL & BLOWER HOUSING KIT

Note: 110005(49ST)/110006(50ST)

$

$

Currently unavailable

20

Cub Cadet 7117132

RECOIL & BLOWER HOUSING KIT

Note: 100696(49ST)

$

$

Currently unavailable

20

Cub Cadet 7117133

RECOIL & BLOWER HOUSING KIT

Note: 110035(50ST)

$

$

Currently unavailable

20

Cub Cadet 7117134

RECOIL & BLOWER HOUSING KIT

Note: 109979(50ST)

$

$

Currently unavailable

21

Cub Cadet 7117136

RECOIL STARTER KIT

Note: 110005/100698(49ST) 110006/100699(50ST)

$

$

Currently unavailable

21

Cub Cadet 7117137

RECOIL STARTER KIT

Note: 100696(49ST)

$

$

Currently unavailable

21

Cub Cadet 7114238

RECOIL STARTER KIT

Note: 109979(50ST)

$

$

Currently unavailable

21

Cub Cadet 7117139

RECOIL STARTER KIT

Note: 110035(50ST)

$

$

Currently unavailable

22

Cub Cadet 7111122

ON/OFF SWITCH KIT

Note: 100698/100696/110005(49ST) 100699/109979/110006/110035(50ST)

$

$

Currently unavailable

23

Cub Cadet 7117108

ADJUSTABLE THROTTLE & GOVERNOR KIT

Note: 100698/100696/110005(49ST) 100699/109979/110006/110035(50ST)

$

$

Currently unavailable

24

Cub Cadet 7114214

GOVERNOR SPRING KIT

Note: 100698/100696/110005(49ST) 100699/109979/110006/110035(50ST)

$

$

Currently unavailable

25

Cub Cadet 7117143

FUEL TANK KIT

Note: 100698/100696(49ST)

$

$

Currently unavailable

25

Cub Cadet 7117144

FUEL TANK KIT

Note: 100699/109979(50ST)

$

$

Currently unavailable

25

Cub Cadet 7117145

FUEL TANK KIT

Note: 110005(49ST)

$

$

Currently unavailable

25

Cub Cadet 7117150

FUEL TANK KIT

Note: 110006/110035(50ST)

$

$

Currently unavailable

26

Cub Cadet 7111121

FUEL CAP

Note: 100698/100696/110005(49ST) 100699/109979/110006/110035(50ST)

$

$

Currently unavailable

27

Cub Cadet 7117146

ROLL OVER VALVE KIT

Note: 100698/100696/110005(49ST)

$

$

Currently unavailable

27

Cub Cadet 7114239

ROLL OVER VALVE KIT

Note: 100699/109979/110006/110035(50ST)

$

$

Currently unavailable

28

Cub Cadet 7111130

ENGINE GASKET KIT

Note: 100698/100696/110005(49ST) 100699/109979/110006/110035(50ST)

$

$

Currently unavailable

29

Cub Cadet 7111151

SPARK PLUG

Note: 100698/100696/110005(49ST) 100699/109979/110006/110035(50ST)

$

$

Currently unavailable
