CC 3075 (41BDC75C010) - Cub Cadet String Trimmer (2004) Boom And Trimmer Parts 41A Parts Diagram

String Trimmer

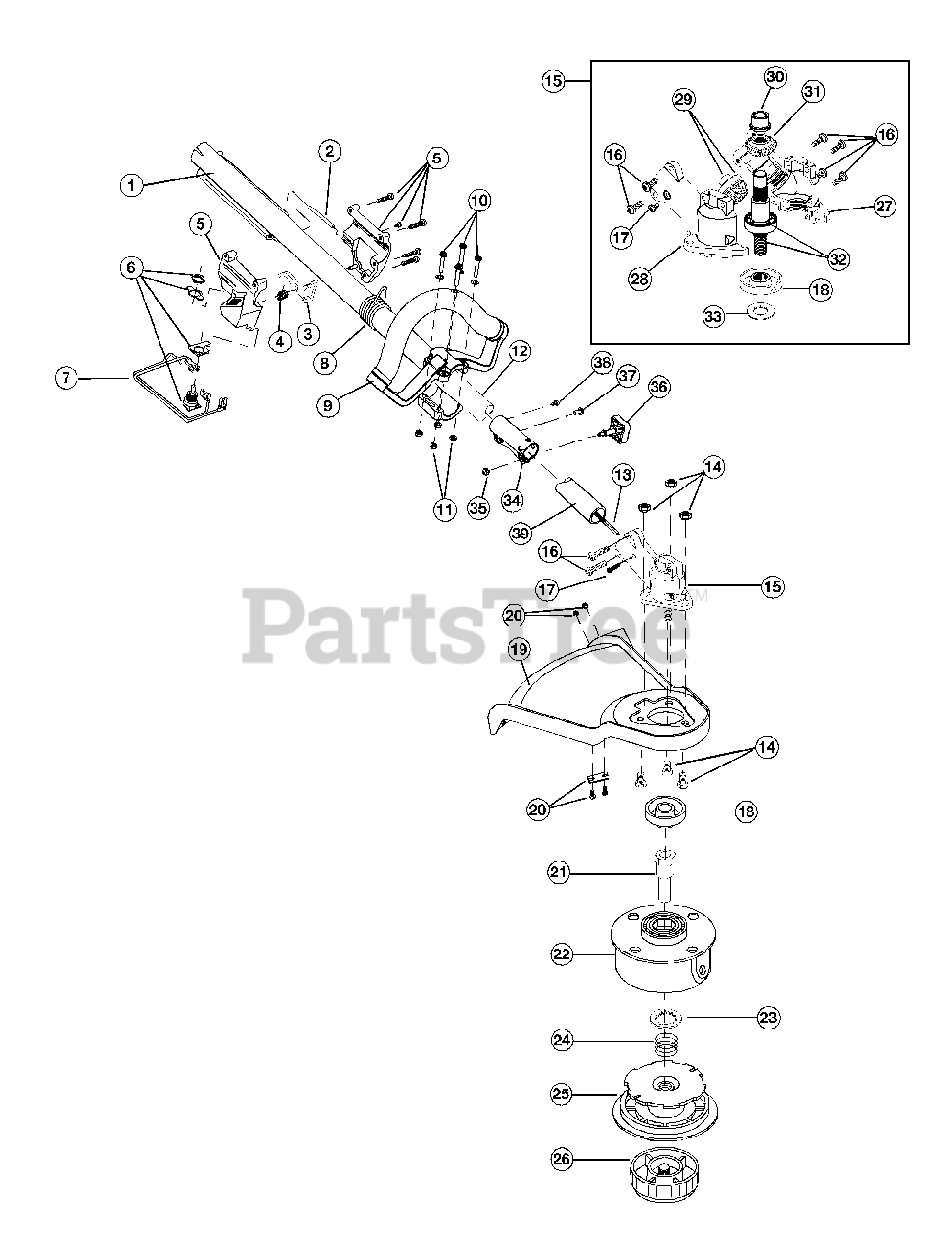

Boom And Trimmer Parts 41A Parts Diagram

  • Title

1

Cub Cadet 791-180866

Grip

$

$

Not available

2

Cub Cadet 791-181688

Throttle Cable Assembly
(Superseded to 753-05088)

$20.99

$

In Stock, only 3 left!

0

3

Cub Cadet 791-180975

Throttle Trigger
(Superseded to 791-181807)

$9.99

$

In Stock, Qty 7

0

4

Cub Cadet 791-610314

Throttle Trigger Spring

$9.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 791-181689

Throttle Trigger Assembly

Note: (includes 3 & 4)

$

$

Not available

6

Cub Cadet 791-180252

Switch Assembly

$

$

Not available

7

Cub Cadet 791-181690

Wire Lead Assembly

$

$

Not available

8

Cub Cadet 791-610327

Shoulder Harness Clamp

$32.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 753-1151

Handle Assembly

Note: (includes 10-11)

$

$

Not available

10

Cub Cadet 753-1152

Screw

$

$

Not available

11

Cub Cadet 753-1154

Nut
(Superseded to 9072)

$

$

Not available

12

Cub Cadet 753-04503

Drive Shaft Housing Assembly

$

$

Not available

13

Cub Cadet 791-181570

Lower Drive Shaft

$61.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 791-182200

Shield Mount Screw Assembly

$6.99

$

In Stock, only 2 left!

0

15

Cub Cadet 791-182193

2 piece Gearbox Assembly

Note: (includes 27-33)

$99.99

$

In Stock, only 2 left!

0

16

Cub Cadet 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, Qty 20+

0

17

Cub Cadet 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

18

Cub Cadet 791-182196

Blade Driver

$22.99

$

In Stock, only 1 left!

0

19

Cub Cadet 753-1158

Shield and Blade Assembly

Note: (includes 20)

$

$

Not available

20

Cub Cadet 791-682061

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

21

Cub Cadet 791-612483

Spool Shaft

$55.99

$

In Stock, only 1 left!

0

22

Cub Cadet 791-683301

Outer Spool Assembly

Note: (includes 23)

$48.99

$

In Stock, Qty 6

0

23

Cub Cadet 791-612026

Retainer
(Superseded to 1772)

$6.99

$

In Stock, Qty 13

0

24

Cub Cadet 791-610636B

Spring

$10.99

$

In Stock, only 2 left!

0

25

Cub Cadet 791-147495

Inner Reel

$26.99

$

In Stock, Qty 7

0

26

Cub Cadet 791-180814B

Bump Head Knob Assembly

$21.99

$

In Stock, Qty 20+

0

27

Cub Cadet 791-182191

Left Housing

Note: 2 Piece Gearbox Assembly Parts - Item 15

$

$

Not available

28

Cub Cadet 791-182192

Right Housing

Note: 2 Piece Gearbox Assembly Parts - Item 15

$

$

Not available

29

Cub Cadet 791-182194

Pinion Gear Assembly

Note: 2 Piece Gearbox Assembly Parts - Item 15

$31.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 791-182199

Output Shaft Bushing

Note: 2 Piece Gearbox Assembly Parts - Item 15

$

$

Not available

31

Cub Cadet 791-182198

Output Shaft Gear

Note: 2 Piece Gearbox Assembly Parts - Item 15

$

$

Not available

32

Cub Cadet 791-182197

Output Shaft Assembly

Note: (includes 30 & 31); 2 Piece Gearbox Assembly Parts - Item 15

$

$

Not available

33

Cub Cadet 753-04348

Palnut

Note: 2 Piece Gearbox Assembly Parts - Item 15

$6.99

$

In Stock, only 3 left!

0

34

Cub Cadet 791-181616B

Split Boom Coupler Assmbly
(Superseded to 753-1190)

Note: (includes 35-38); 2 Piece Gearbox Assembly Parts - Item 15

$23.99

$

In Stock, only 1 left!

0

35

Cub Cadet 791-181886

Nut

Note: 2 Piece Gearbox Assembly Parts - Item 15

$3.49

$

In Stock, only 4 left!

0

36

Cub Cadet 791-181618B

Knob
(Superseded to 791-181981)

Note: (Includes 35)

$

$

Not available

37

Cub Cadet 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

38

Cub Cadet 791-182057

Screw

$4.49

$

In Stock, only 3 left!

0

39

Cub Cadet 753-04099

Lower Boom Assembly
(Superseded to 753-04504)

$69.99

$

In Stock, only 1 left!

0

Cub Cadet 753-1160

Reel and Line Assembly
(Superseded to 753-1224)

Note: Not Shown; Optional Accessory

$32.99

$

Usually ships in 3-6 days

0

Cub Cadet 41AM079G100

Brush Cutter Accessory Kit

Note: Not Shown; Optional Accessory

$

$

Currently unavailable

Cub Cadet 753-1161

Bump Head Assembly
(Superseded to 791-147498)

Note: Not Shown; (includes 21-26); Optional Accessory

$117.99

$

In Stock, only 1 left!

0

Cub Cadet 682075B

Shoulder Harness

Note: Not Shown; Optional Accessory

$

$

Currently unavailable
