CC 3075 (41ADC75C010) - Cub Cadet String Trimmer (2004) Engine Parts 41B Parts Diagram

String Trimmer

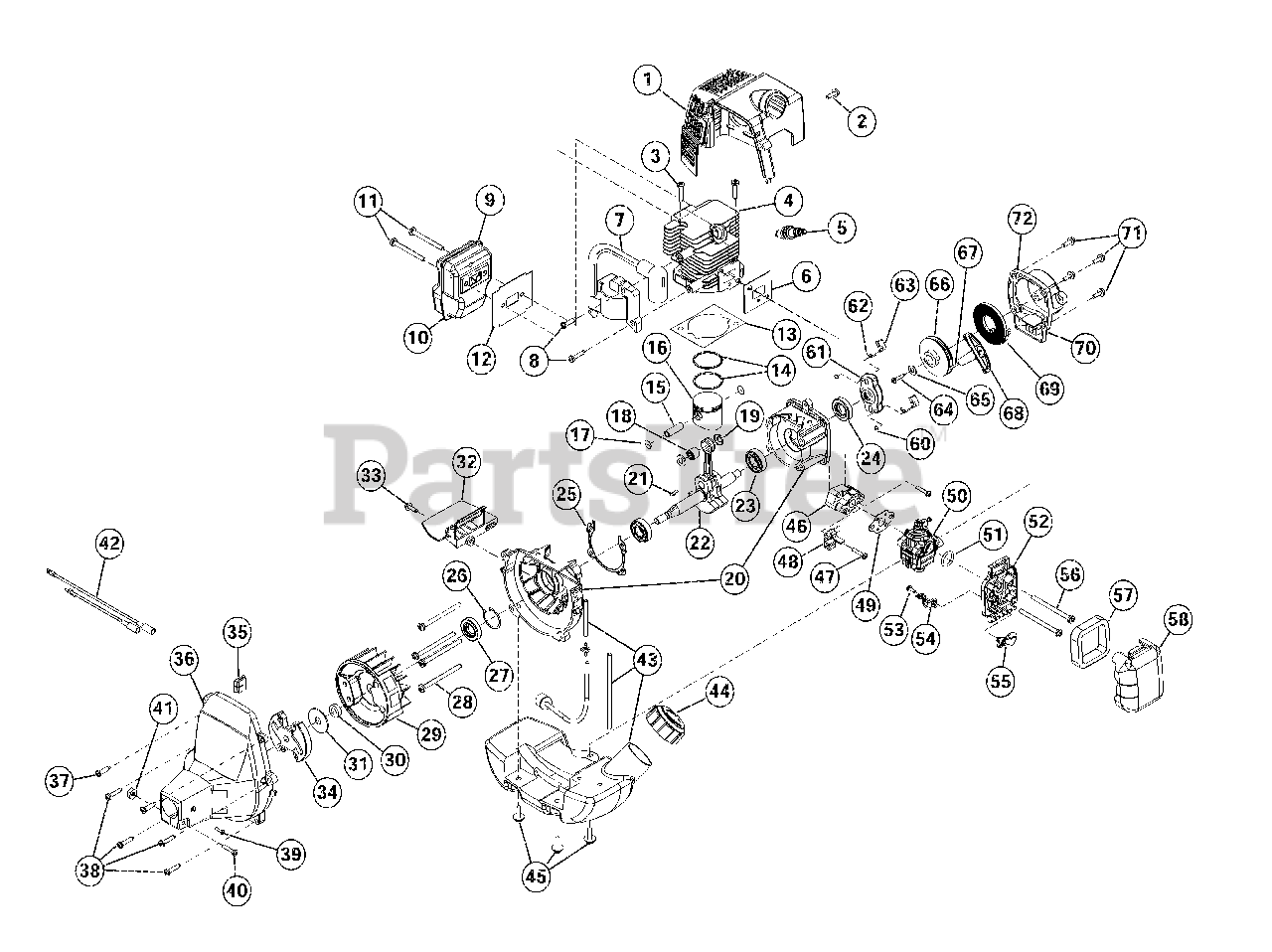

Engine Parts 41B Parts Diagram

  • Title

1

Cub Cadet 753-04730

Engine Cover

$

$

Not available

2

Cub Cadet 791-181716

Cover Screw

$4.99

$

In Stock, only 2 left!

0

3

Cub Cadet MC-9SRCB-05-22

Cylinder Bolt

$

$

Not available

4

Cub Cadet MC-9292-MD0101F

Cylinder

$

$

Currently unavailable

5

Cub Cadet 791-610311B

Spark Plug

$14.99

$

In Stock, only 3 left!

0

6

Cub Cadet MC-9014-MD0104

Insulator Gasket

$

$

Not available

7

Cub Cadet 753-04731

Module Assembly

Note: (includes 8)

$

$

Not available

8

MC-9SQKBM-04-20

Module Screw

$

$

Not available

9

Cub Cadet 753-04842

Muffler Assembly

Note: (includes 10 & 11)

$

$

Not available

10

Cub Cadet 753-04838

Muffler

$

$

Currently unavailable

11

Cub Cadet 791-181713

Muffler Mounting Bolt

$

$

Not available

12

Cub Cadet 791-181714

Muffler Gasket

$

$

Not available

13

Cub Cadet MC-9014-MD0101

Cylinder Gasket

$

$

Not available

14

Cub Cadet MC-9189-MD0101

Piston Ring

$

$

Not available

15

Cub Cadet MC-9115-MD0101

Piston Pin

$

$

Not available

16

Cub Cadet MC-9290-MD0101

Piston

$

$

Not available

17

Cub Cadet MC-9131-MD0101

Piston Clip

$

$

Not available

18

Cub Cadet MC-9NR-081187

Needle Baring

$

$

Not available

19

Cub Cadet MC-9057-MD0101

Piston Spacer

$

$

Currently unavailable

20

Cub Cadet 753-04839

Crankcase Assembly

Note: (includes 22-28)

$

$

Not available

21

Cub Cadet MC-9221-310001

Flywheel Key

$

$

Not available

22

Cub Cadet MC-9228-MD0101

Crankshaft Assembly
(Superseded to 753-04543)

$

$

Not available

23

Cub Cadet MC-9DB-600102

Ball Baring

$

$

Not available

24

Cub Cadet MC-9157-332101

Rear Oil Seal

$

$

Not available

25

Cub Cadet MC-9014-MD0102

Crankcase Gasket

$

$

Not available

26

Cub Cadet MC-9CB-28

C-Clip

$

$

Not available

27

Cub Cadet MC-9157-332102

Front Oil Seal

$

$

Not available

28

Cub Cadet MC-9SGKB-05-30

Crankcase Screw

$

$

Currently unavailable

29

Cub Cadet MC-9151-MD0103

Flywheel

$31.99

$

In Stock, only 1 left!

0

30

Cub Cadet MC-9131-MD0201

Spacer

$

$

Not available

31

Cub Cadet MC-9043-MD0201

Clutch Washer

$

$

Not available

32

Cub Cadet 791-181715

Muffler Plate

$

$

Not available

33

Cub Cadet 791-181716

Muffler Plate Screw

$4.99

$

In Stock, only 2 left!

0

34

Cub Cadet 791-181730

Clutch

$46.99

$

In Stock, Qty 7

0

35

Cub Cadet 791-182157

Wire Grommet

$

$

Not available

36

Cub Cadet 753-1178

Clutch Housing

$

$

Not available

37

Cub Cadet 791-181844

Upper Housing Screw

$6.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 791-181762

Lower Housing Screw

$

$

Not available

39

Cub Cadet 791-182188

Anti-Rotation Screw

$

$

Not available

40

Cub Cadet 791-181761

Clamp Screw

$

$

Not available

41

Cub Cadet 791-181762

Clamp Nut

$

$

Not available

42

Cub Cadet 753-04732

Lead Wire Assembly

$

$

Not available

43

Cub Cadet 791-181766

Fuel Tank Assembly

$

$

Not available

44

Cub Cadet 791-182612

Fuel Cap

$20.99

$

In Stock, Qty 9

0

45

Cub Cadet 791-181768

Fuel Tank Screw

$

$

Not available

46

Cub Cadet MC-9072-MD0101

Insulator

$

$

Not available

47

Cub Cadet MC-9SKKB-05-19

Insulator Screw

$

$

Not available

48

Cub Cadet 791-181748

Throttle Bracket

$

$

Not available

49

Cub Cadet 791-181709

Carburetor Gasket

$4.99

$

In Stock, Qty 20+

0

50

Cub Cadet 753-04697

Carburetor

$75.99

$

In Stock, only 1 left!

0

51

Cub Cadet 791-181751

O-Ring

$4.49

$

In Stock, Qty 20+

0

52

Cub Cadet 791-181752

Air Cleaner Assembly

Note: (includes 52-54, 57 & 58)

$25.99

$

In Stock, Qty 5

0

53

Cub Cadet 791-181756

Choke Screw

$

$

Not available

54

Cub Cadet 791-181755

Choke Lever

$

$

Not available

55

Cub Cadet 791-181754

Choke Plate

$

$

Not available

56

Cub Cadet 791-181750

Air Cleaner Screw

$6.49

$

Usually ships in 3-6 days

0

57

Cub Cadet 791-181757

Air Filter

$3.99

$

In Stock, Qty 20+

0

58

Cub Cadet 791-181758

Air Cleaner Cover

$

$

Not available

59

Cub Cadet MC-9228-MD0107

Pawls Assembly

$

$

Not available

60

Cub Cadet MC-9CE-04

E-Clip

$

$

Not available

61

Cub Cadet MC-9133-MD0101

Pawls Cover

$

$

Currently unavailable

62

Cub Cadet MC-9024-MD0102

Pawl Spring

$

$

Currently unavailable

63

Cub Cadet MC-9133-MD0102

Pawl

$

$

Currently unavailable

64

Cub Cadet 791-181740

Recoil Pulley Retaining Screw

$

$

Not available

65

Cub Cadet 791-181741

Recoil Pulley Retaining Washer

$

$

Not available

66

Cub Cadet 791-181738

Recoil Pulley

$

$

Not available

67

Cub Cadet 791-181742

Rope

$8.99

$

In Stock, only 1 left!

0

68

Cub Cadet 791-181079

Starter Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 1 left!

0

69

Cub Cadet 791-181739

Recoil Spring

$17.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 791-181737

Recoil Pulley Cover

$

$

Not available

71

Cub Cadet 791-181716

Recoil Pulley Screw

$4.99

$

In Stock, only 2 left!

0

72

Cub Cadet 791-181777

Recoil Assembly

Note: (includes 64-71)

$

$

Not available

Cub Cadet 753-04696

Short Block
(Superseded to 753-05006)

Note: Not Shown

$

$

Not available

Cub Cadet 753-04735

Spark Arrestor

Note: Not Shown

$

$

Currently unavailable
