CC 3000 (41CDC03G100) - Cub Cadet String Trimmer (2002) Boom And Trimmer (Loop Handle Style) Parts Diagram

String Trimmer

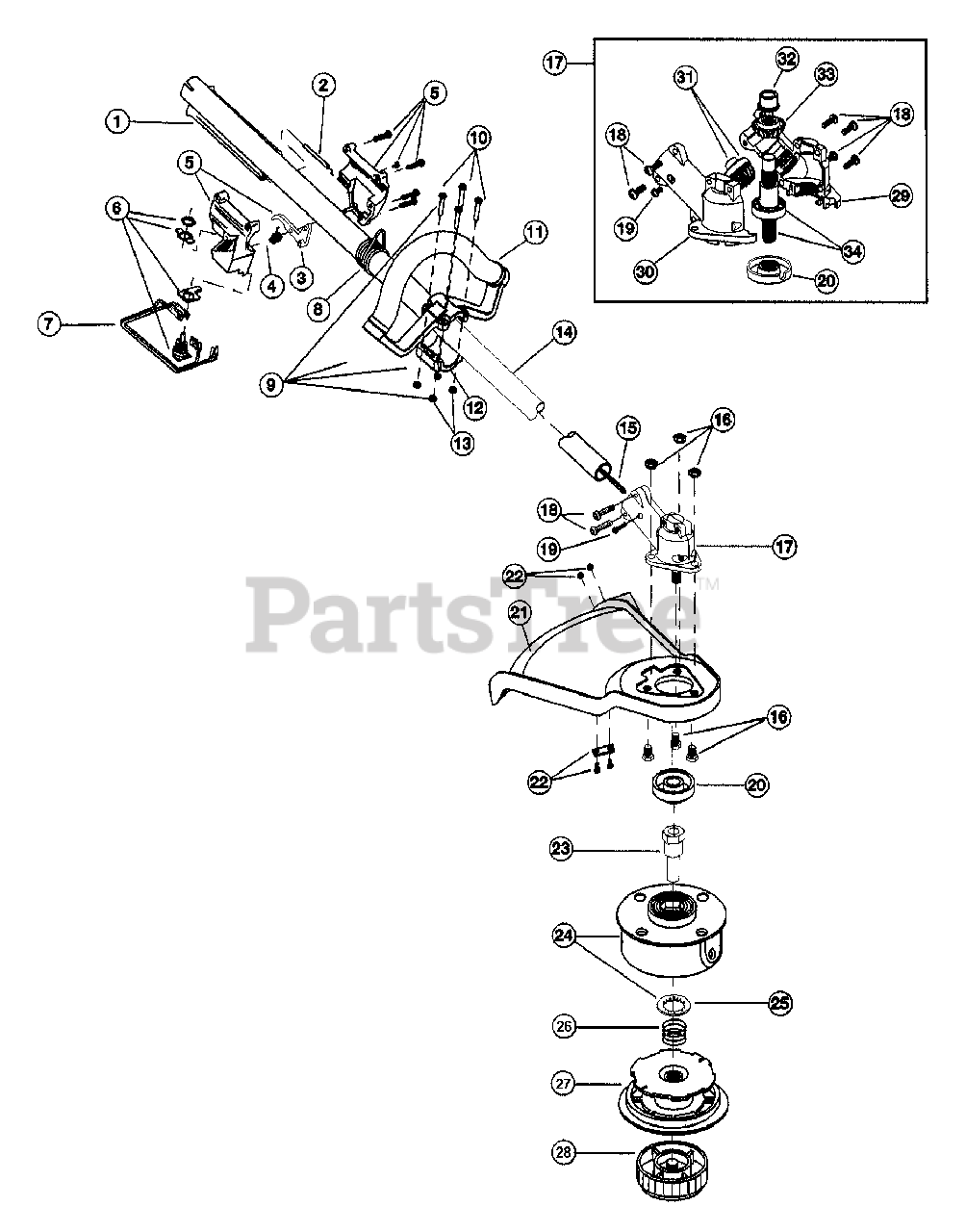

Boom And Trimmer (Loop Handle Style) Parts Diagram

  • Title

1

Cub Cadet 791-180866

Grip

$

$

Not available

2

Cub Cadet 791-181688

Throttle Cable Assembly
(Superseded to 753-05088)

$20.99

$

In Stock, only 3 left!

0

3

Cub Cadet 791-180975

Throttle Trigger
(Superseded to 791-181807)

$9.99

$

In Stock, Qty 7

0

4

Cub Cadet 791-610314

Throttle Trigger Spring

$9.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 791-181689

Throttle Trigger Assembly

Note: (Includes 4)

$

$

Not available

6

Cub Cadet 791-180252

Switch Assembly

$

$

Not available

7

Cub Cadet 791-181690

Wire Lead Assembly

$

$

Not available

8

Cub Cadet 791-610327

Shoulder Harness Clamp

$32.99

$

Usually ships in 3-6 days

0

9

Loop Handle Assembly

Note: (Use 10-13)

$

$

Not available

10

Cub Cadet 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 791-182167

Loop Handle

$76.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 791-182168

Bottom Clamp

$

$

Not available

13

Cub Cadet 791-181810

Nut

$

$

Not available

14

Cub Cadet 791-182836

Drive Shaft Housing Assembly

$

$

Not available

15

Cub Cadet 791-182833

Drive Shaft

$

$

Not available

16

Cub Cadet 791-182200

Shield Mount Screw Assembly

$6.99

$

In Stock, only 2 left!

0

17

Cub Cadet 791-182193

2 piece Gearbox Assembly

Note: (Includes 18-20)

$99.99

$

In Stock, only 2 left!

0

18

Cub Cadet 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, Qty 20+

0

19

Cub Cadet 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

20

Cub Cadet 791-182196

Blade Driver

$22.99

$

In Stock, only 1 left!

0

21

Cub Cadet 791-182189

Shield and Blade Assembly

Note: (Includes 22)

$65.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 791-682061

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

23

Cub Cadet 791-612483

Spool Shaft

$55.99

$

In Stock, only 1 left!

0

24

Cub Cadet 791-683301

Outer Spool & Eyelet Assembly

Note: (Includes 25)

$48.99

$

In Stock, Qty 6

0

25

Cub Cadet 791-612026

Retainer
(Superseded to 1772)

$6.99

$

In Stock, Qty 13

0

26

Cub Cadet 791-610636B

Spring

$10.99

$

In Stock, only 2 left!

0

27

Cub Cadet 791-147495

Inner Reel

$26.99

$

In Stock, Qty 7

0

28

Cub Cadet 791-180814B

Bump Head Knob Assembly

$21.99

$

In Stock, Qty 20+

0

29

Cub Cadet 791-182191

Left Housing

Note: 2 Piece Gearbox Assembly Parts - Item 17

$

$

Not available

30

Cub Cadet 791-182192

Right Housing

Note: 2 Piece Gearbox Assembly Parts - Item 17

$

$

Not available

31

Cub Cadet 791-182194

Pinion Gear Assembly

Note: 2 Piece Gearbox Assembly Parts - Item 17

$31.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 791-182199

Output Shaft Bushing

Note: 2 Piece Gearbox Assembly Parts - Item 17

$

$

Not available

33

Cub Cadet 791-182198

Output Shaft Gear

Note: 2 Piece Gearbox Assembly Parts - Item 17

$

$

Not available

34

Cub Cadet 791-182197

Output Shaft Assembly

Note: (Includes 32 & 33); 2 Piece Gearbox Assembly Parts - Item 17

$

$

Not available

Cub Cadet 753-1160

Replacement Line, 0.105 Diameter
(Superseded to 753-1224)

Note: Optional Accessory; Not Shown

$32.99

$

Usually ships in 3-6 days

0

Cub Cadet 41AM079G100

Brush Cutter Accessory Kit (Complete Goods)

Note: Optional Accessory; Not Shown

$

$

Currently unavailable

Cub Cadet 791-147498B

Bump Head Assembly
(Superseded to 791-147498)

Note: (Includes 23-28); Optional Accessory; Not Shown

$117.99

$

In Stock, only 1 left!

0

Cub Cadet 791-682075B

Shoulder Harness

Note: Optional Accessory; Not Shown

$38.99

$

Usually ships in 3-6 days

0
