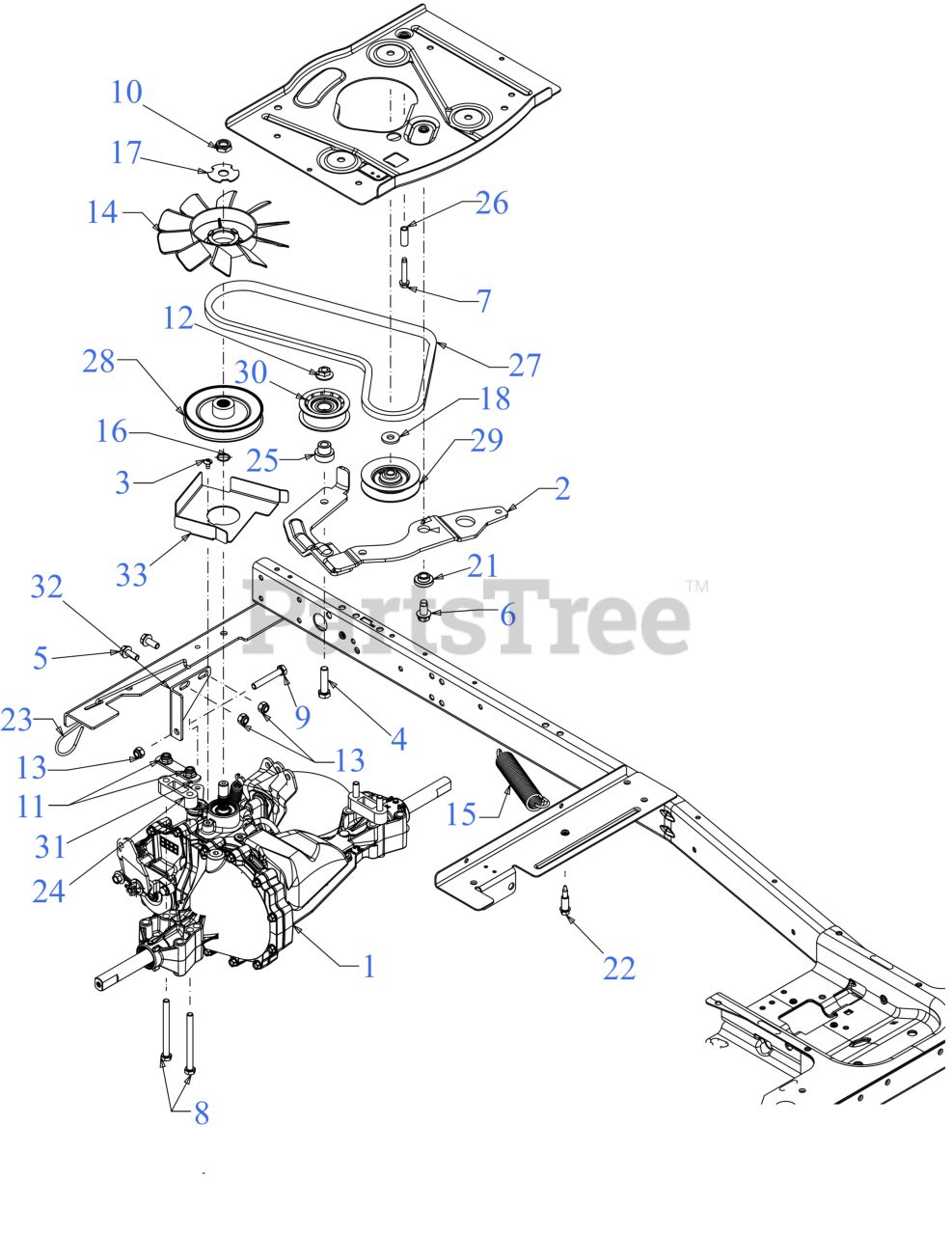

CC 30 H (13AC21JD010) - Cub Cadet Hydro Mini Rider (2021) Drive Parts Diagram

Hydro Mini Rider

Drive Parts Diagram

  • Title

1

Cub Cadet 918-07144

TRANSMISSION ASSEMBLY

Note: (See Separate Breakdown)

$1034.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 683-05251

DRIVE IDLER ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 683-05251-0637

IDLER ASM-DRIVE - POWDER BLACK (0637)

$54.99

$

Usually ships in 3-6 days

0

$44.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-04997

SCREW-#10-24 x .400 SELF TAP

$3.49

$

In Stock, only 1 left!

0

4

Cub Cadet 710-0520

SCREW 3/8-16 x 1.50

$4.49

$

In Stock, Qty 7

0

5

Cub Cadet 710-06194

SCREW 5/16-18 x .750 GR8

$3.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0623

SCREW 3/8-16 x 3/4

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 710-0778

SCREW 1/4-20 x 1.50"

$4.49

$

In Stock, only 3 left!

0

8

Cub Cadet 710-1266

SCREW 5/16-18X3.5 GR5

$9.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-3103

SCREW 5/16-18 x 2.0 GR5

$4.49

$

In Stock, only 4 left!

0

10

Cub Cadet 712-0346

NUT

$4.99

$

In Stock, Qty 9

0

11

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0429

HEX NUT

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 731-11508

HYDRO FAN

$19.99

$

In Stock, only 1 left!

0

15

Cub Cadet 732-05573

EXTENSION SPRING (.99 x 6.18)
(Superseded to 732-05573A)

$8.99

$

In Stock, only 2 left!

0

16

Cub Cadet 732-0729

WIRE RING

$4.99

$

In Stock, Qty 5

0

17

Cub Cadet 736-04263

LOCK WASHER

$6.99

$

In Stock, only 4 left!

0

18

Cub Cadet 736-3072

WASHER

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 738-0372B

SHOULDER SPACER 1.00 x .38 x .38

$9.49

$

In Stock, Qty 20+

0

22

Cub Cadet 738-05016A

SHOULDER SCREW .368 x .75 x 1/4-20

$3.99

$

In Stock, only 1 left!

0

23

Cub Cadet 747-06617

HYDRO BYPASS ROD

$10.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 948-0334

TRANSAXLE SPACER

$10.99

$

In Stock, only 1 left!

0

25

Cub Cadet 748-05029A

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 750-0566A

SPACER

$9.99

$

In Stock, only 1 left!

0

27

Cub Cadet 954-05130

V-BELT A SEC x 38.24"

$38.99

$

In Stock, only 1 left!

0

27

Cub Cadet 490-501-M088

Genuine Factory Parts TRANS BELT (754-05130)

Note: Retail Packaged Part

$33.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 756-04308

INPUT PULLEY

$31.99

$

In Stock, only 3 left!

0

29

Cub Cadet 756-04325

V-IDLER PULLEY A x 3.06 OD

$24.99

$

In Stock, Qty 20+

0

30

Cub Cadet 756-05209

FLAT IDLER PULLEY

$31.99

$

In Stock, only 1 left!

0

31

Cub Cadet 783-08131-0637

TRANSAXLE BRACKET

$4.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 783-08916A

TRANSMISSION MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$10.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 783-08933

BELT KEEPER BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 783-08933-0637

BRKT-BELT KEEPER - POWDER BLACK (0637)

$31.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0
