CC 30 H (13A721JD056) - Cub Cadet Hydro Mini Rider (2017) Fender Parts Diagram

Hydro Mini Rider

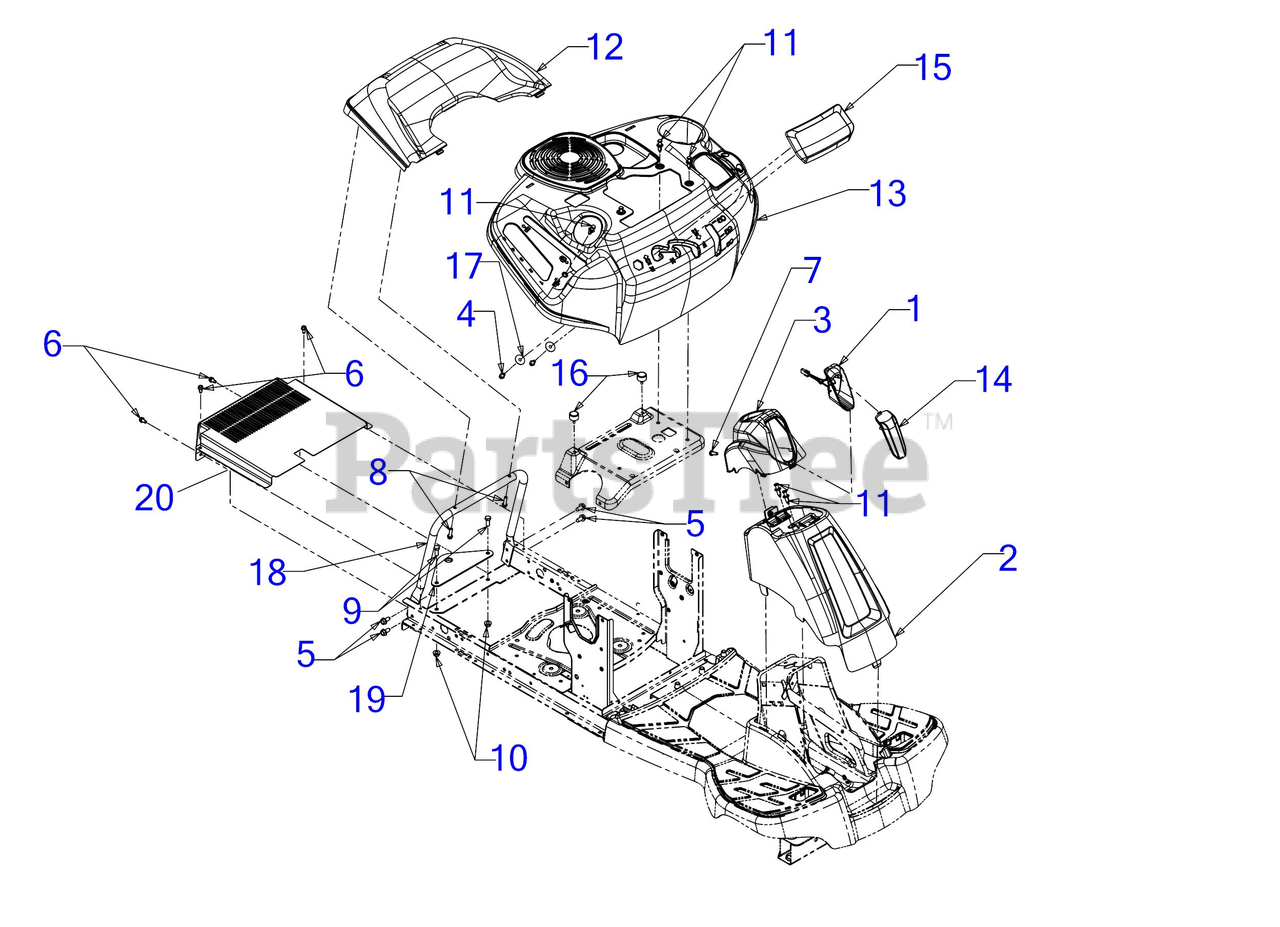

Fender Parts Diagram

  • Title

1

Cub Cadet 925-05119

HEADLIGHT HARNESS ASSEMBLY

$60.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 931-05041

COLUMN COVER ASSEMBLY (CUB)

$31.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 712-04092

U NUT

Note: (Not Shown)

$5.99

$

In Stock, only 2 left!

0

3

Cub Cadet 631-05364

COLUMN CAP (CUB YELLOW)

$38.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04187A

HEX SCREW 1/4-15 x .50

$6.99

$

In Stock, Qty 7

0

5

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0924

SCREW 1/4-20X.75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-1241

SCREW 1/4-15 x 1.00

$6.99

$

In Stock, Qty 19

0

9

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 728-0199

PLASTIC RIVET

$4.49

$

In Stock, Qty 15

0

12

Cub Cadet 731-09129A

REAR COVER

$37.99

$

In Stock, only 1 left!

0

13

Cub Cadet 931-10151

FENDER

$

$

Not available

14

Cub Cadet 731-11484

LED HEADLIGHT LENS

$10.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 731-11496

FENDER COVER

$13.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 735-05006

BUMPER .62 DIA x .50

$4.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 736-3092

FLAT WASHER

$3.99

$

In Stock, Qty 9

0

18

Cub Cadet 749-04932

REAR SUPPORT TUBE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 749-04932-0637

Support Tube, Rear - POWDER BLACK (0637)

$33.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 783-07208-0637

HITCH PLATE
(Superseded to 783-07208A-0637)

$8.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 783-09147B

HYDRO COVER HEAT SHIELD (B&S)
(Superseded to 783-09147D)

$82.99

$

Usually ships in 3-6 days

0
