CC 30 E (33BA27JDB10) - Cub Cadet Electric Mini Rider (2023) Fender Parts Diagram

Electric Mini Rider

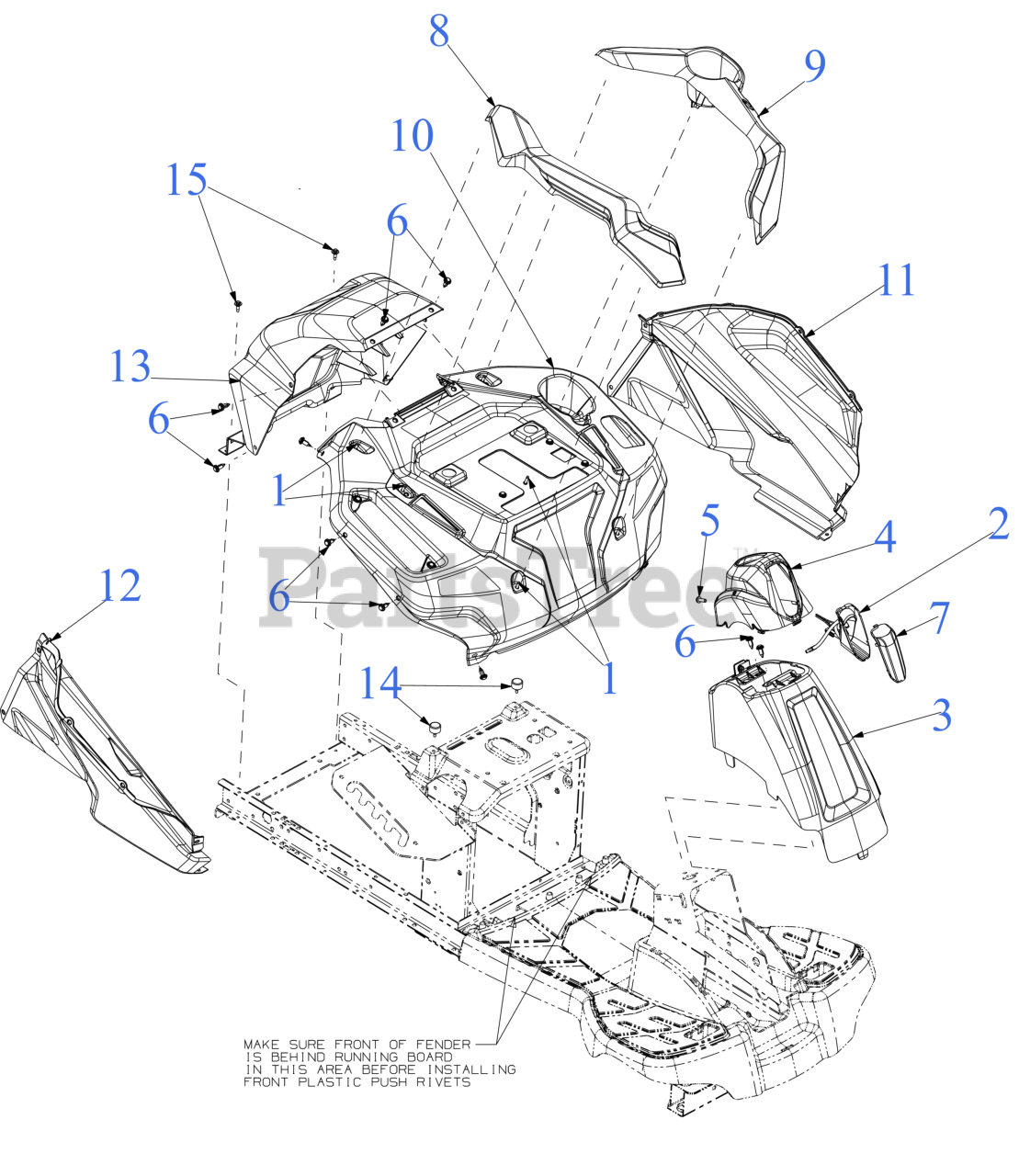

Fender Parts Diagram

  • Title

1

Cub Cadet 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 925-05119

LED HEADLIGHT HARNESS ASSEMBLY

$60.99

$

In Stock, Qty 5

0

3

Cub Cadet 931-05041

COLUMN COVER ASSEMBLY

$31.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 631-05364

COLUMN CAP (CUB YELLOW)

$38.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0924

SCREW 1/4-20X.75

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 728-0199

PLASTIC RIVET

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 731-11484

LED HEADLIGHT LENS

$10.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 731-13482

FENDER TRIM (RH) (CUB YELLOW)

$21.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 731-13483A

FENDER TRIM (LH) (CUB YELLOW)

$23.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 731-27035

FENDER

$

$

Not available

11

Cub Cadet 731-27036

BODY PANEL (LH)

$

$

Not available

12

Cub Cadet 731-27037

BODY PANEL (RH)

$

$

Not available

13

Cub Cadet 731P27038B

REAR COVER

$47.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 735-05006

BUMPER .62 DIA x .50

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 738-05090

SHOULDER SCREW M6-1 .368 X.115

$3.49

$

In Stock, Qty 20+

0
