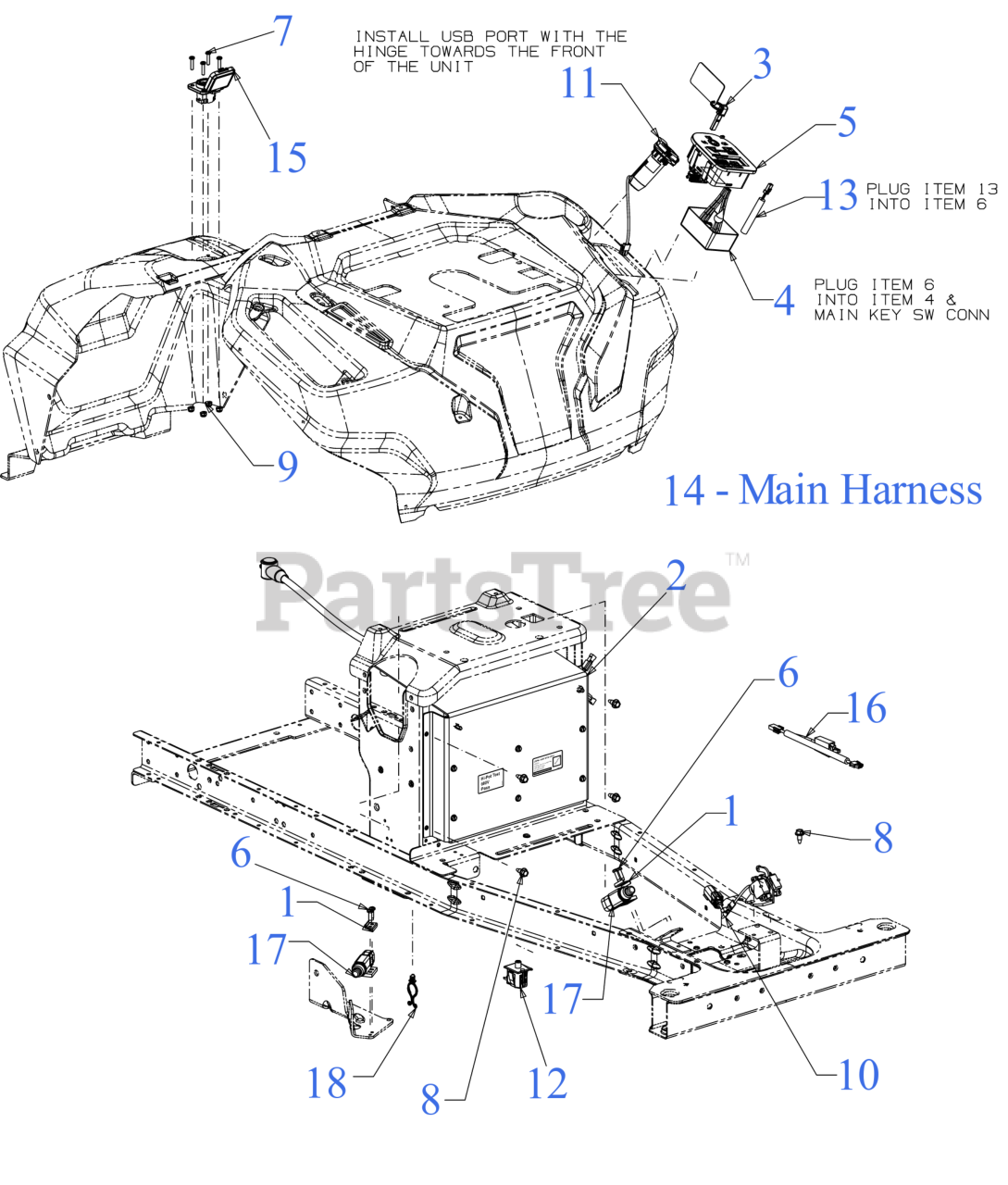

CC 30 E (33AA27JDB10) - Cub Cadet Electric Mini Rider (2021) Electrical Parts Diagram

Electric Mini Rider

Electrical Parts Diagram

  • Title

1

Cub Cadet 17962

PLATE-SWITCH

$4.99

$

In Stock, only 3 left!

0

2

Cub Cadet 625P06230A

MOTOR CONTROL PANEL

$1428.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 625-06990A

MAGNETIC KEY

$

$

Not available

4

Cub Cadet 625-07791A

ELECTRIC MODULE

$673.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 625P08831

VCM SWITCH ASSEMBLY
(Superseded to 625P08831A)

$

$

Not available

6

Cub Cadet 791-182195

SCREW #

$7.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-04879

SCREW #8-32 x .750

$3.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04144

HEX NUT #8-32

$1.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 725-07539B

THROTTLE SENSOR (DUEL CLIP)

$171.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 725-09965A

USB RECEPTACLE (12V W/JUMPER)

$90.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 725P14006

SEAT SWITCH (NC/NO)

$28.99

$

In Stock, only 1 left!

0

13

Cub Cadet 725P15085

HARNESS

$39.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 725P16265

HARNESS (VCM/SPDM/GEN 1)

$301.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 725P17073

CHARGER PORT HARNESS (8-PIN)
(Superseded to 725P17073C)

$190.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 725-17280

HARNESS (2-PIN HDLT FUSE 1A)
(Superseded to 725P17280)

$35.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 929-05136

SEALED PLUNGER SWITCH

$43.99

$

In Stock, only 1 left!

0

18

Cub Cadet 729-07541

TWIST LOCK CLIP

$3.49

$

Usually ships in 3-6 days

0
