CC 30 E (33AA27JD710) - Cub Cadet Electric Mini Rider (2019) Seat Parts Diagram

Electric Mini Rider

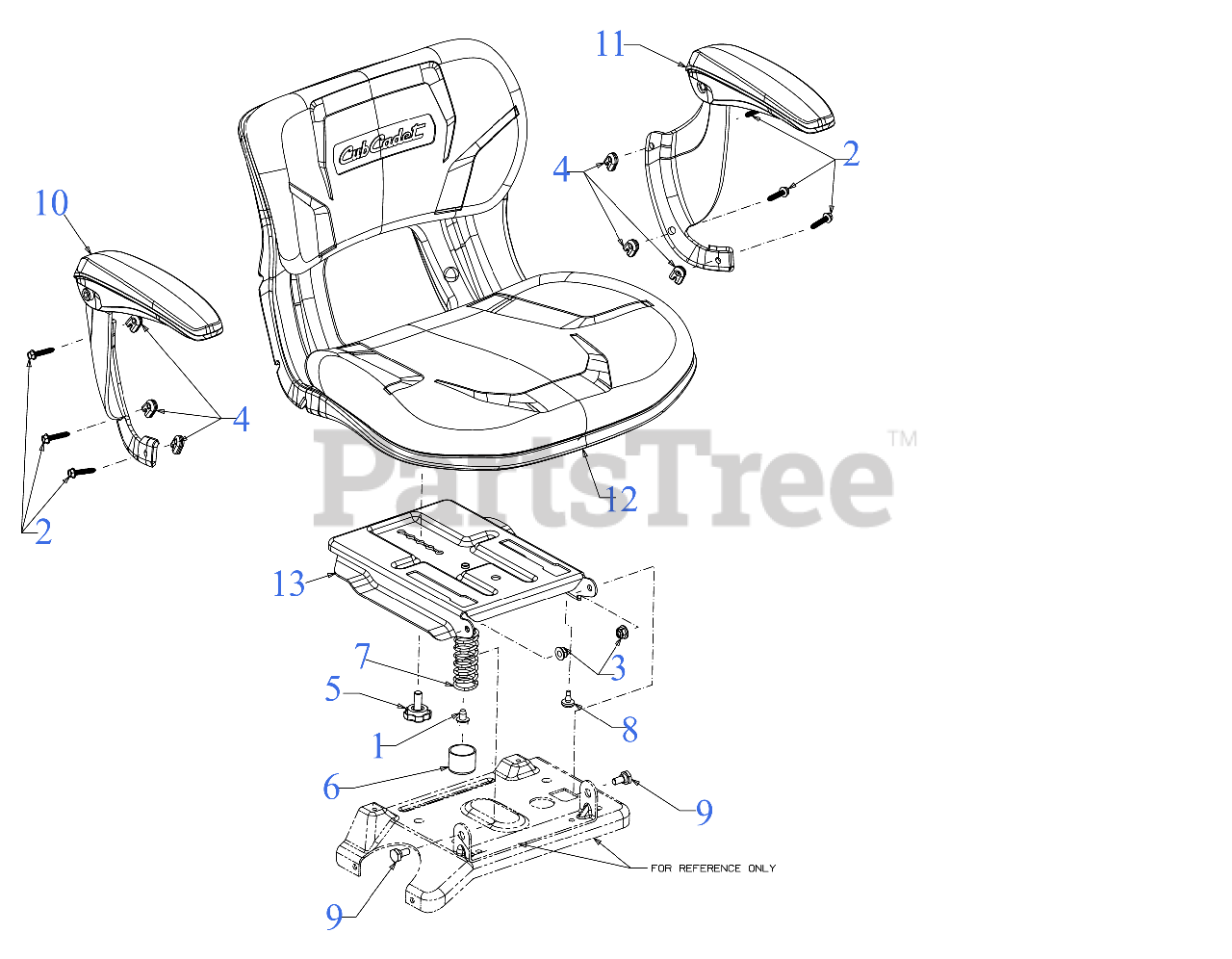

Seat Parts Diagram

  • Title

1

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 9

0

2

Cub Cadet 710-06313A

SCREW 1/4-14X 1.25

$3.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 712-05110

ARMREST NUT

$5.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 720-04009A

SEAT ADJUSTMENT KNOB

$16.99

$

In Stock, only 2 left!

0

6

Cub Cadet 720-05005

SEAT SPRING CAP

$3.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 732-04905

SEAT SPRING

$3.99

$

In Stock, only 2 left!

0

8

Cub Cadet 935-0199A

RUBBER BUMPER
(Superseded to 735-0199A)

$7.99

$

In Stock, only 2 left!

0

9

Cub Cadet 938-0140

SHOULDER SCREW .437 DIA x .180
(Superseded to 738-0140)

$

$

Not available

10

Cub Cadet 957-05043A

HIGH BACK SEAT ARM (RH)

$111.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 957-05047A

HIGH BACK SEAT ARM (LH)

$111.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 757-05101

HIGH SEAT (ARM OPT)

$420.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 783-09771

SEAT PIVOT MANUAL ADJUSTMENT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 783-09771-0637

BLACK BRKTSEAT PIVOT - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0
