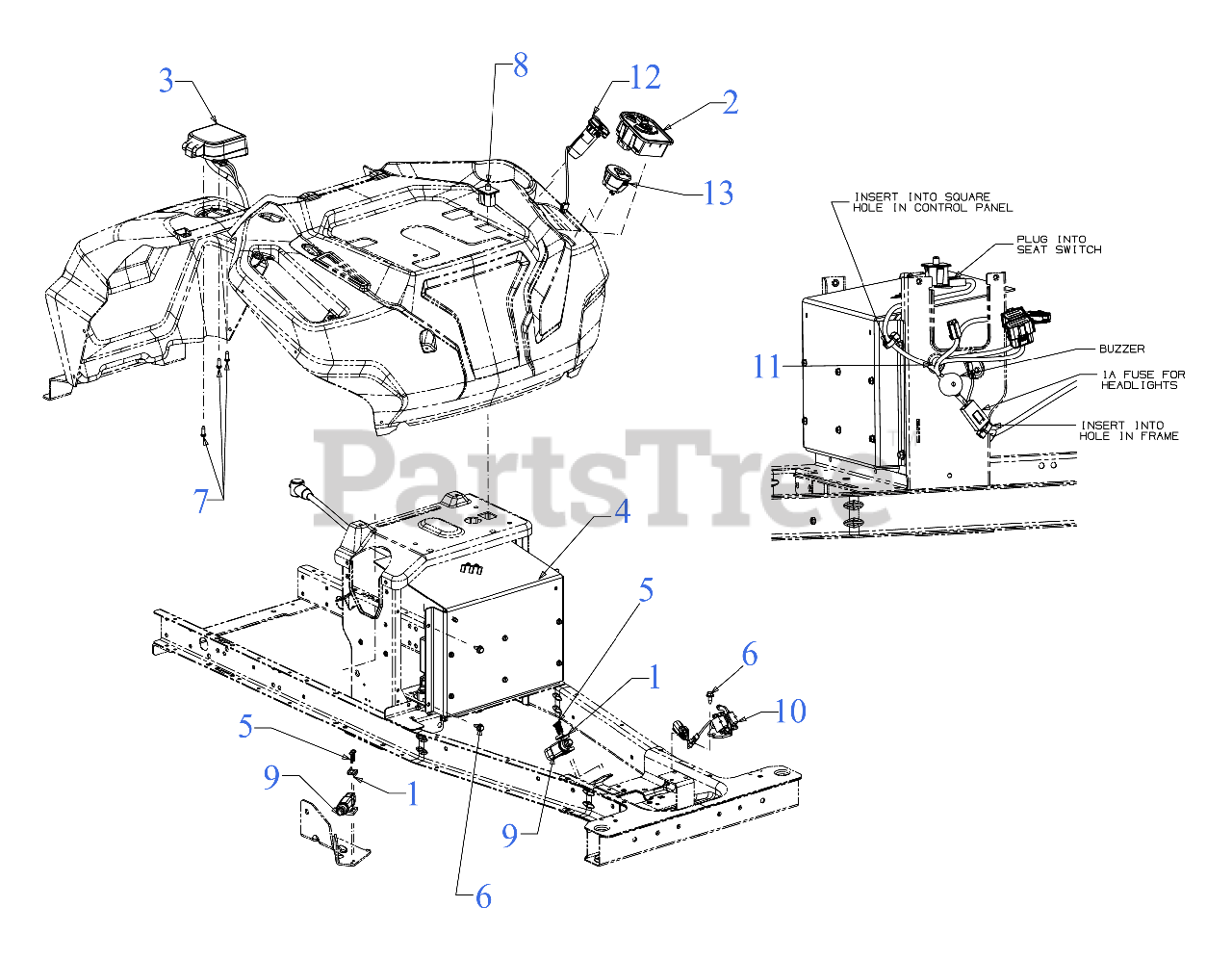

CC 30 E (33AA27JD710) - Cub Cadet Electric Mini Rider (2019) Electrical Parts Diagram

Electric Mini Rider

Electrical Parts Diagram

  • Title

1

Cub Cadet 17962

PLATE-SWITCH

$4.99

$

In Stock, only 3 left!

0

2

Cub Cadet 925-05174A

VCM MODULE
(Superseded to 753-11121B)

$451.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 625-05181

CHARGE PORT PLUG ASSEMBLY

$400.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 625P06230

MOTOR CONTROL PANEL
(Superseded to 625P06230A)

$1428.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 791-182195

SCREW #

$7.49

$

In Stock, only 1 left!

0

6

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1823

SCREW #12-16 x .625

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 725-05472

SEAT SWITCH

$19.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 725-07432

PLUNGER SWITCH (NO/NO)

$48.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 725-07539A

THROTTLE SENSOR (DUEL CLIP)
(Superseded to 725-07539B)

$171.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 924-04153

ROTARY SENSOR MAGNET

Note: (Not Shown)

$10.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 729-0359

HARNESS CLIP

Note: (Not Shown)

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 725P09445

MAIN HARNESS (VCM HPD BATTERY)

$571.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 725-09965

USB RECEPTACLE (12V W/JUMPER)

$107.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 725P10266

KEY SWITCH (2 POSITION)

$41.99

$

Usually ships in 3-6 days

0
