CC 30 E (13AZ27JD710) - Cub Cadet Electric Mini Rider (2018) Drive Parts Diagram

Electric Mini Rider

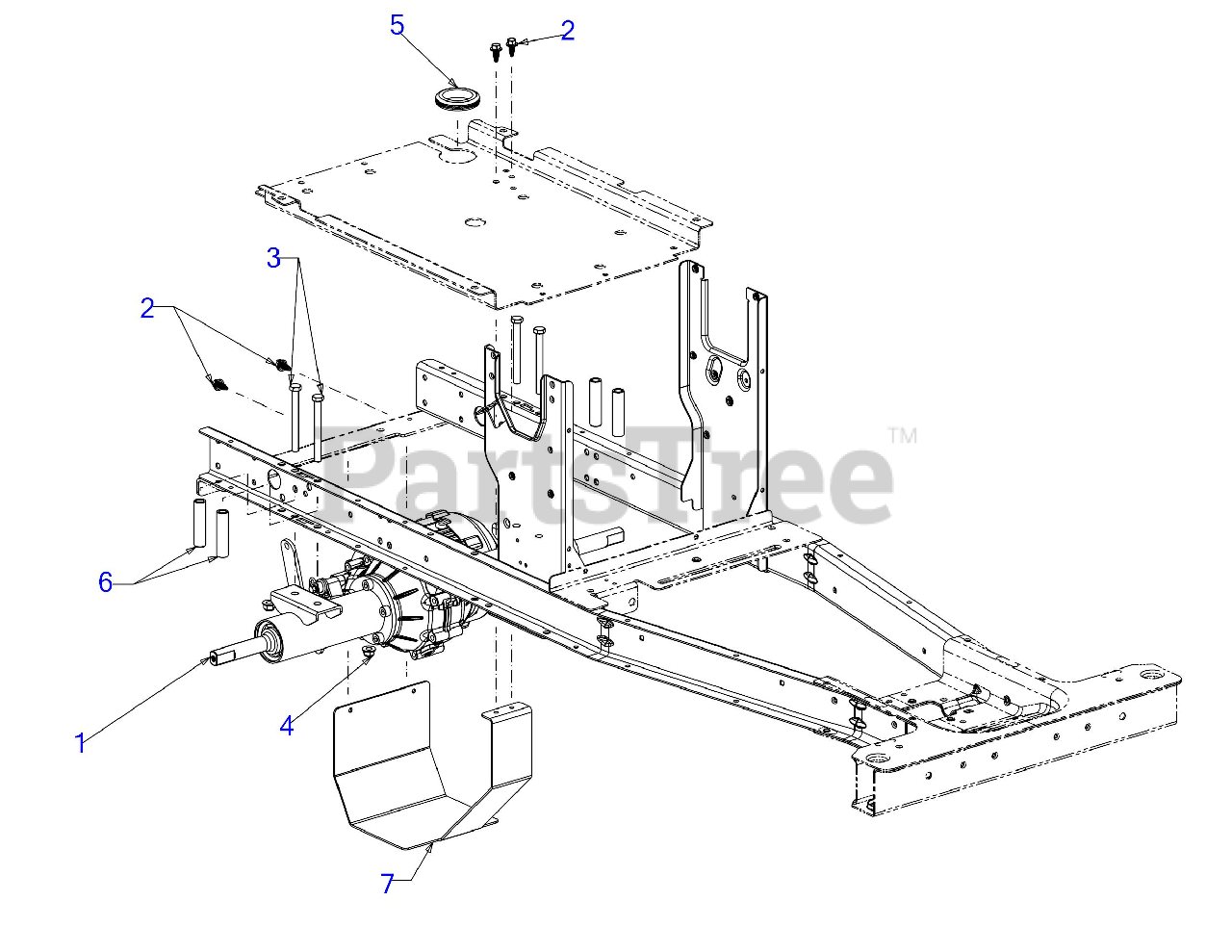

Drive Parts Diagram

  • Title
1

Cub Cadet 918-07424

TRANSMISSION ASSEMBLY

Note: (See Separate Breakdown)

$850.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-3056

SCREW 5/16-18 x 3.25 GR5

$10.99

$

In Stock, only 1 left!

0

4

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 735-05272

GROMMET (1.50 X 1.75 X 0.06)

$4.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 750-06788

SPACER (.35 X .55 X 2.345)

$5.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 783-09767

TRANSMISSION MOTOR COVER

Variations

Cub Cadet 783-09767-0637

BLACK TRANSMISSION MO - POWDER BLACK (0637)

$14.99

$

Usually ships in 3-6 days

0

$14.99

$

Usually ships in 3-6 days

0
