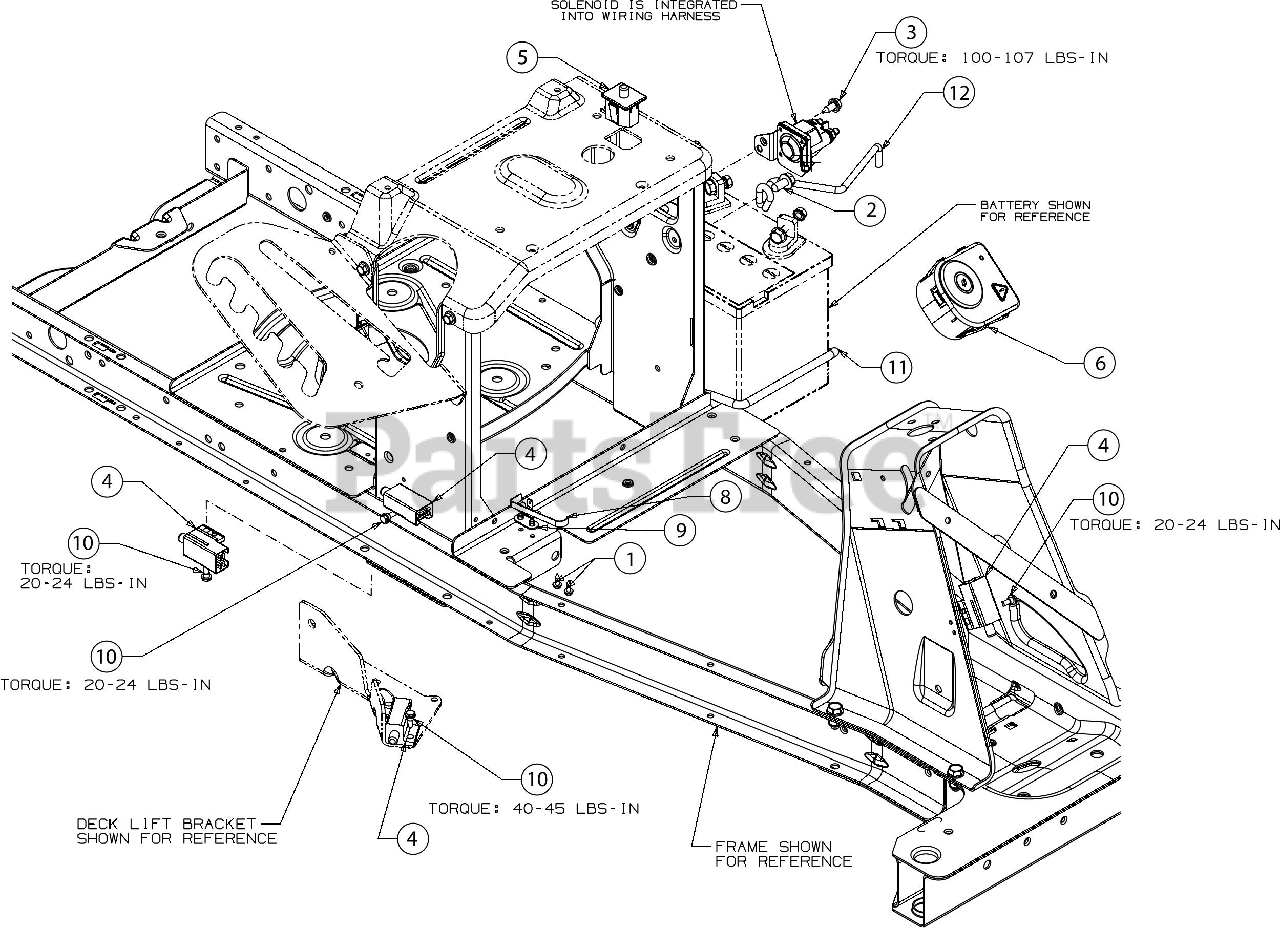

CC 30 (13A726JD010) - Cub Cadet Mini Rider (2017) Electrical Parts Diagram

Mini Rider

Electrical Parts Diagram

  • Title

1

Cub Cadet 710-0227

HEX SCREW WASHER HD #8-18 x 0.500

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 725-04363

INTERLOCK SWITCH (NO/NC)

$15.99

$

In Stock, Qty 14

0

5

Cub Cadet 925-05013

SEAT SWITCH

$31.99

$

In Stock, only 2 left!

0

6

Cub Cadet 925-06119B

IGNITION MODULE SWITCH RMC (MAN PTO BLK)
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

8

Cub Cadet 725-1643

SPRING SWITCH

$10.99

$

In Stock, only 1 left!

0

9

Cub Cadet 926-0320

INSULATOR PLATE

$6.99

$

In Stock, Qty 11

0

10

Cub Cadet 738-04237A

SHOULDER SCREW

$6.49

$

In Stock, Qty 7

0

11

Cub Cadet 747-06131B

BATTERY TRAY ROD

$19.99

$

In Stock, Qty 10

0

12

Cub Cadet 747-06148

BATTERY HOLD DOWN ROD

$6.49

$

In Stock, only 1 left!

0

Cub Cadet 725-06274

HARNESS
(Superseded to 925-06274B)

Note: (Not Shown)

$148.99

$

In Stock, only 1 left!

0

Cub Cadet 712-0271

SEMS NUT 1/4-20

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-04064

FLANGE LOCK NUT

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 725-06153

SOLENOID-12V 100A
(Superseded to 725-06153A)

Note: (Not Shown)

$42.99

$

In Stock, Qty 8

0

Cub Cadet 729-0125

ELECTRICAL CONNECTOR

Note: (Not Shown)

$11.99

$

Usually ships in 3-6 days

0
