CC 30 (13A226JD010) - Cub Cadet Mini Rider (2015) Pedal Controls Parts Diagram

Mini Rider

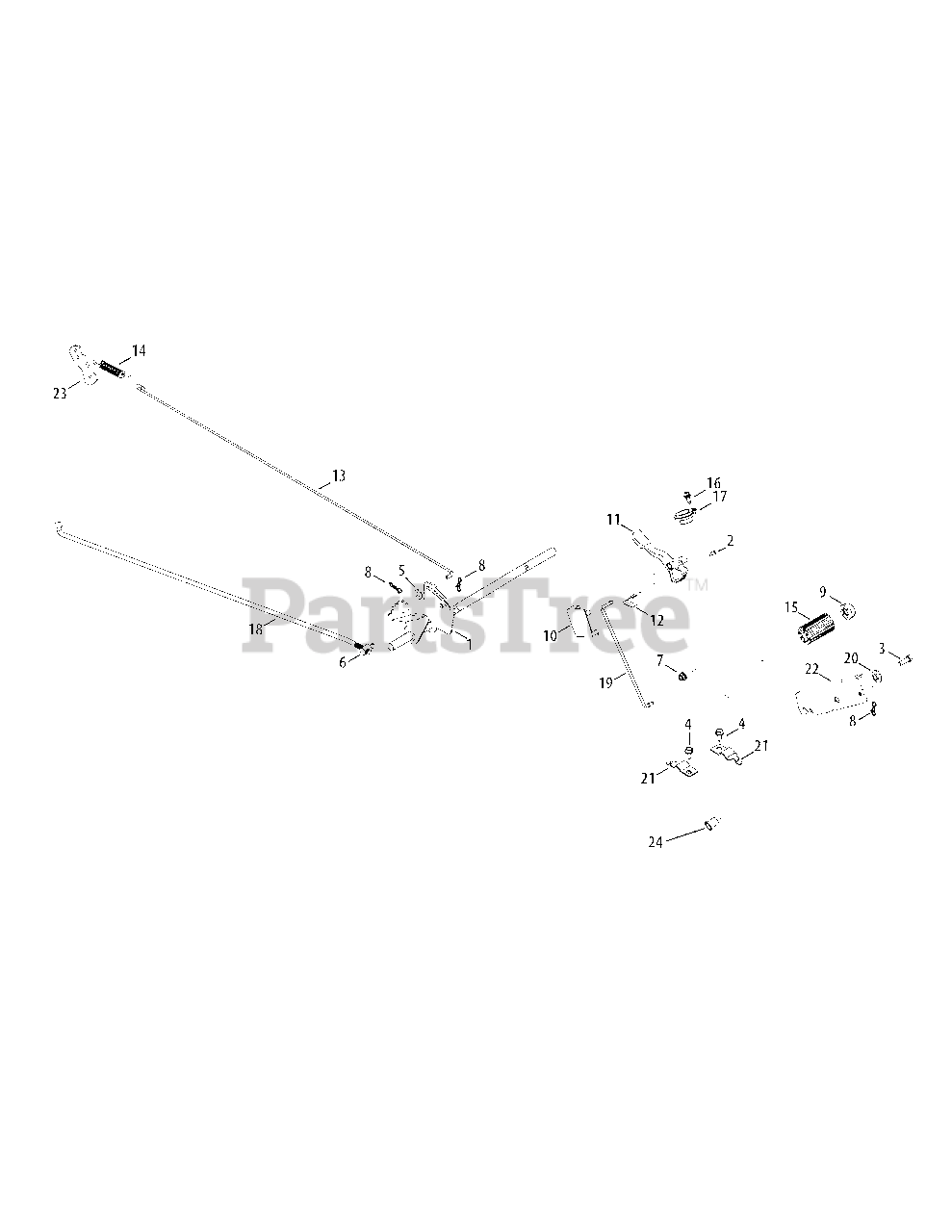

Pedal Controls Parts Diagram

  • Title
1

Cub Cadet 683-05017-0637

Brake Pedal Assembly
(Superseded to 683-05017B-0637)

$42.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 910-0224

Screw, #10-16:0.500

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0376

Hex Head Scerw, 5/16-18:1.00

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-04484

Tap Screw, 5/16-18:.750

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 936-0264

Flat Washer, .330 x .630 x .064

$6.99

$

In Stock, only 2 left!

0

6

Cub Cadet 711-06103

Ferrule 3/8-24 X .375 Dia.

$4.49

$

In Stock, Qty 11

0

7

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

9

Cub Cadet 726-0214

Push Cap, 5/8

$10.99

$

In Stock, Qty 5

0

10

Cub Cadet 731-08656A

Speed Control Cover
(Superseded to 731-08656B)

$4.49

$

In Stock, Qty 12

0

11

Cub Cadet 731-08743B

Speed Lever, 6-SPEED

$7.49

$

In Stock, Qty 20+

0

12

Cub Cadet 732-04937

Shift Spring

$3.99

$

In Stock, only 1 left!

0

13

$18.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 732-0716D

Extension Spring, .59 OD x 4.00 LG

$13.99

$

In Stock, only 1 left!

0

15

Cub Cadet 735-04279

Foot Pad, 2.5" LG.

$8.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 738-04184A

Shoulder Screw, .368 X.113, 1/4-20

$6.99

$

In Stock, Qty 5

0

17

Cub Cadet 741-0356A

Steering Col. Bearing, .880 ID X 1.36

$7.49

$

In Stock, only 2 left!

0

18

Cub Cadet 747-05506

Variable Speed Control Rod

$22.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 747-06449

Speed Selector Control Rod

$14.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 783-05940

Pedal Strap Support Bracket, 5/8

$7.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 783-08116B-0637

Speed Latch Bracket
(Superseded to 783-08116C-0637)

$10.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 717-0772B

Brake lever Bracket

$12.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 741-05135

Flange Bearing, .626 x .938 x .875

$6.49

$

Usually ships in 3-6 days

0
