CC 30 (13A226JD010) - Cub Cadet Mini Rider (2014) Drive System Parts Diagram

Mini Rider

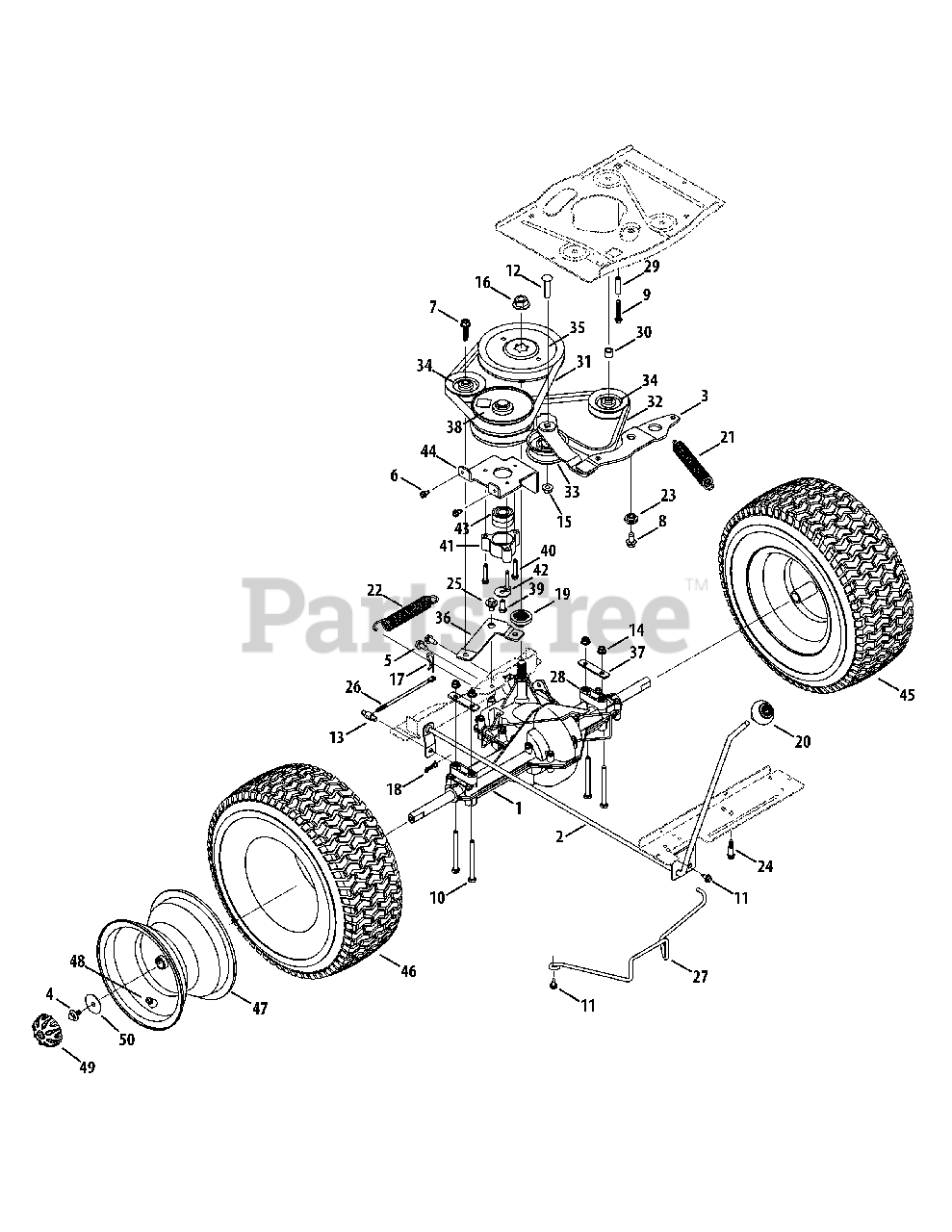

Drive System Parts Diagram

  • Title

1

Cub Cadet 918-05056A

Transmission Assembly
(Superseded to 918-05056C)

$636.99

$

In Stock, only 1 left!

0

2

Cub Cadet 647-04262C

Shift Handle Assembly
(Superseded to 647-05114)

$48.99

$

In Stock, only 1 left!

0

3

Cub Cadet 683-04768A-0637

Drive Assembly Idler

$19.99

$

In Stock, only 1 left!

0

4

Cub Cadet 710-05339

Screw, 5/16-24 x .750
(Superseded to 710-05339A)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-04484

Tap Screw, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0599

Tap Scew, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-06016

Screw, 3/8-16 x 1.375

$4.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0623

Tap Screw, 3/8-16, 0.750

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-1026

Screw, 1/4-20 x 1.750

$6.99

$

In Stock, Qty 13

0

10

Cub Cadet 710-1266

Hex Cap Screw, 5/16-18 x 3.5, Gr5

$9.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-1652

Tap Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0560

Screw, Carriage: 3/8-16 x 1.75"

$6.99

$

In Stock, Qty 11

0

13

Cub Cadet 711-06141

Adjustable Ferrule, 1/4-20 X 1.00

$42.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 712-04063

Flange Locknut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0700

Flange Nut, 9/16-18

$10.99

$

In Stock, only 2 left!

0

17

Cub Cadet 914-0209

Internal Cotter Pin, .125 Dia.

$3.99

$

In Stock, only 2 left!

0

18

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

19

Cub Cadet 718-04407

Pulley Hub, 5/8 Spline

$12.99

$

In Stock, Qty 20+

0

20

Cub Cadet 720-04028

Shift Knob

$10.99

$

In Stock, only 4 left!

0

21

Cub Cadet 732-0459C

Extension Spring, .94 Dia. X 6.74 Lg.

$18.99

$

In Stock, only 3 left!

0

22

Cub Cadet 732-04934

Extension Spring, .97 OD X 6.18

$7.99

$

In Stock, only 1 left!

0

23

Cub Cadet 738-0372B

Shoulder Spacer, 1.00 X .38 X .38

$9.49

$

In Stock, Qty 18

0

24

Cub Cadet 738-05016

Shoulder Screw, .368 x .75, 1/4-20
(Superseded to 738-05016A)

$3.99

$

In Stock, only 1 left!

0

25

Cub Cadet 738-05019

Shoulder Screw, .560 x .165, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 747-05593

Shift Rod

$5.99

$

In Stock, only 4 left!

0

27

Cub Cadet 747-06126

Deck Belt Keeper, 30"
(Superseded to 747-06126A)

$17.99

$

In Stock, only 1 left!

0

28

Cub Cadet 948-0334

Spacer

$10.99

$

In Stock, only 1 left!

0

29

Cub Cadet 750-04456

Spacer, .260 X .372 X 1.420

$7.49

$

In Stock, only 3 left!

0

30

Cub Cadet 750-05563

Spacer, .385 x .625 x .500

$7.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 954-05040

V-Belt, 5L:35.25

$45.99

$

In Stock, Qty 5

0

32

Cub Cadet 954-04331

V-Belt, 5L:35.28

$45.99

$

In Stock, only 1 left!

0

33

Cub Cadet 756-04224

Flat Idler Pulley, 2.75 OD

$26.99

$

In Stock, Qty 20+

0

34

Cub Cadet 756-04325

V-Type Idler Pulley, 3.06

$24.99

$

In Stock, Qty 20+

0

35

Cub Cadet 756-04464

V-Type Pulley, 6.56

$20.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 783-07248

Rear Idler Arm Bracket
(Superseded to 783-07248A)

$8.49

$

In Stock, only 1 left!

0

37

Cub Cadet 783-08131-0637

Transaxle Mounting Bracket

$4.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 956-04015A

Variable Speed Pulley Assembly
(Superseded to 956-04015B)

$103.99

$

In Stock, Qty 20+

0

39

Cub Cadet 710-0627

Hex Head Lock Screw, 5/16-24:.750

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 710-0778

Tap Screw, 1/4-20:1.500

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 718-04261

Bearing Cup

$20.99

$

In Stock, only 1 left!

0

42

Cub Cadet 736-0362

Flat Washer, .330x1.250x.060

$4.49

$

In Stock, only 4 left!

0

43

Cub Cadet 941-0600

Ball Bearing, 17 X 40 X 12

$25.99

$

In Stock, Qty 20+

0

44

Cub Cadet 783-08210-0637

Variable Bracket
(Superseded to 783-08210A-0637)

$12.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 634-0139

Complete Wheel Assembly

Variations

Cub Cadet 634-0139-0911

Wheel Assembly, Gray - Carlisle Gray (0911)

$319.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0139-0931

WHEEL ASM-COMPLETE - Carlisle Beige (0931)

$319.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0139-0961

WHEEL ASM-COMPLETE - Carlisle Gray (0961)

$108.99

$

In Stock, only 2 left!

0

Cub Cadet 634-0139-0941

WHEEL ASM-COMPLETE - Carlisle Yellow (0941)

$297.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0139-0976

WHEEL ASM-COMPLETE - Kenda Yellow (0976)

$297.99

$

Usually ships in 3-6 days

0

$259.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 734-04641

Tire, 16 x 6.5 x 8 Sq. Shldr.
(Superseded to 734-1727)

$56.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 634-04174-0499

Rim Assembly, 8.0 x 5.38

$67.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 934-0255

Air Valve

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 736-0430

Flat Washer, .35 x 1.59 x .062

$4.49

$

In Stock, Qty 8

0
