CC 25GHT (41AQ25HG950) - Cub Cadet Double Sided Hedge Trimmer General Assembly Parts Diagram

Double Sided Hedge Trimmer

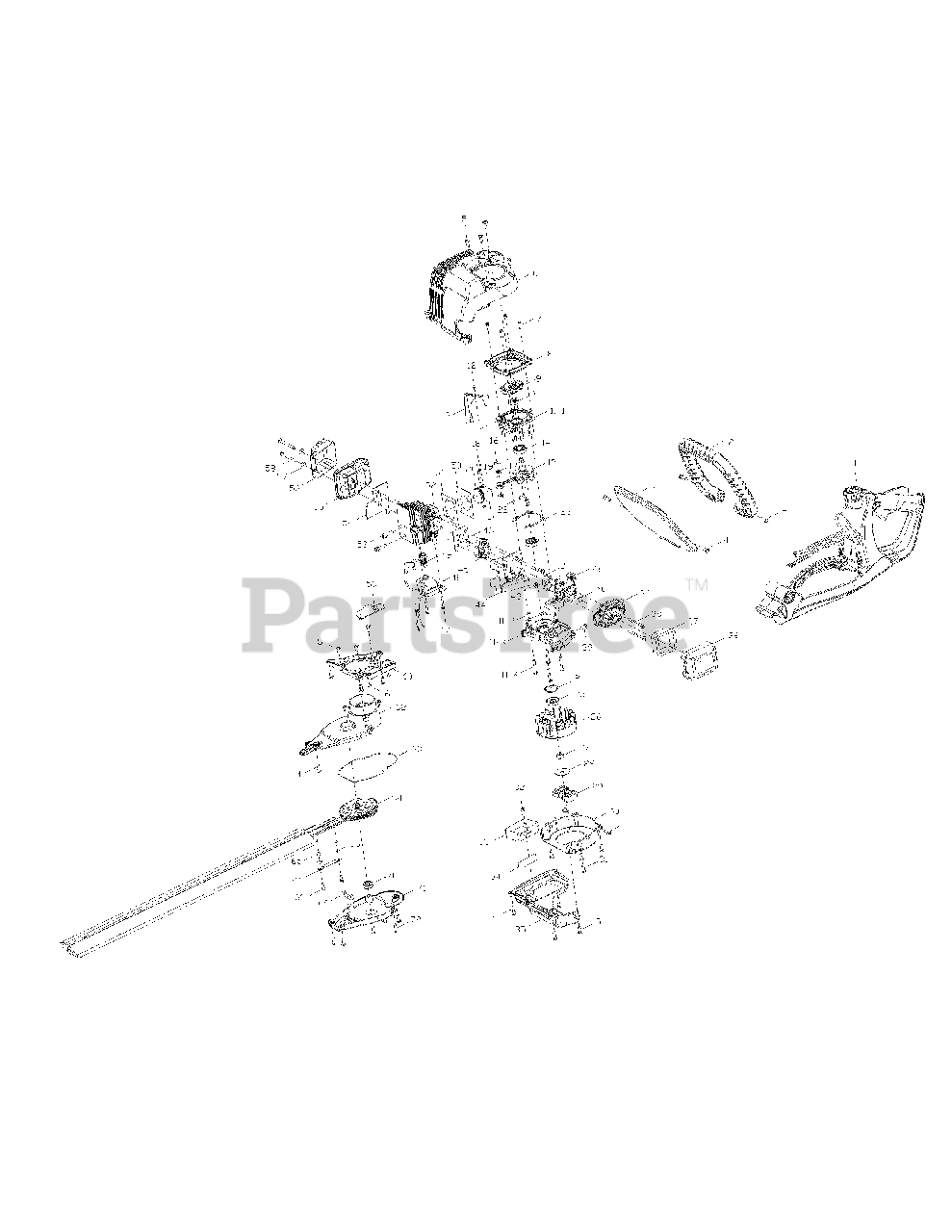

General Assembly Parts Diagram

  • Title

1

Cub Cadet MC-9228-MD2015

HOUSING ASS'Y

Note: NLA

$

$

Not available

2

Cub Cadet MC-9068-MD2001

HANDLE

$

$

Not available

3

Cub Cadet MC-9263-MD2001

GUARD

Note: NLA

$

$

Not available

4

Cub Cadet MC-9SGKBY10/14-0.625

SCREW

Note: NLA

$

$

Currently unavailable

5

Cub Cadet MC-9SGKB-05-12.5

SCREW

Note: NLA

$

$

Currently unavailable

6

Cub Cadet MC-9228-MD2016

STARTER HOUSING ASS'Y

$

$

Not available

7

Cub Cadet MC-9SGKBM04-12

SCREW

Note: NLA

$

$

Not available

8

Cub Cadet MC-9081-MD1801

CONNECT CASE

Note: NLA

$

$

Not available

9

Cub Cadet MC-9228-MD2017

PAWLS ASS'Y

$

$

Not available

10

Cub Cadet MC-9157-332101

OIL SEAL

$

$

Not available

11

Cub Cadet 753-04839

CRANK CASE ASS'Y

$

$

Not available

11-1

Cub Cadet MC-9151-MD0102F

CRANK CASE (STARTER)

Note: NLA

$

$

Currently unavailable

11-2

Cub Cadet MC-6PC03-08

PIN

Note: NLA

$

$

Not available

11-3

Cub Cadet MC-9151-MD0101F

CRANK CASE (FLYWHEEL)

Note: NLA

$

$

Currently unavailable

11-4

Cub Cadet MC-9SRCBM05-30

SCREW

Note: NLA

$

$

Not available

12

Cub Cadet MC-9SQKB-04-08

SCREW

Note: NLA

$

$

Not available

13

Cub Cadet MC-9082-MD2003

BAFFLE CYLINDER

Note: NLA

$

$

Not available

14

Cub Cadet MC-9DB-600102

BALL BEARING

Note: NLA

$

$

Not available

15

Cub Cadet MC-9228-MD0112A

CRANK ASS'Y

Note: NLA

$

$

Not available

16

Cub Cadet MC-9057-MD0201

SPACER, PISTON

$

$

Not available

17

Cub Cadet MC-9NR-081190

NEEDLE BEARING

$

$

Not available

18

Cub Cadet MC-9131-MD0101

CLIP PISTON

$

$

Not available

19

Cub Cadet MC-9115-MD1501-CH

PIN PISTON

Note: NLA

$

$

Currently unavailable

20

Cub Cadet MC-9189-MD1501

PISTON RING

Note: NLA

$

$

Not available

21

Cub Cadet MC-9290-MD1501

PISTON

Note: NLA

$

$

Not available

22

Cub Cadet MC-9221-310001

KEY (FLYWHEEL)

Note: NLA

$

$

Not available

23

Cub Cadet MC-9014-MD0102

CRANK CASE GASKET

Note: NLA

$

$

Not available

24

Cub Cadet MC-9CB-28

C-CLIP

Note: NLA

$

$

Not available

25

Cub Cadet MC-9157-MD1501

OIL SEAL

Note: NLA

$

$

Not available

26

Cub Cadet MC-9151-MD0103

FLYWHEEL

$31.99

$

In Stock, only 1 left!

0

27

Cub Cadet MC-9131-MD0201

SPACER

Note: NLA

$

$

Not available

28

Cub Cadet MC-9057-332101

WASHER

Note: NLA

$

$

Not available

29

Cub Cadet MC-9228-MD2006

CLUTCH ASS'Y

$

$

Not available

30

Cub Cadet MC-9017-MD2003

CRANK CASE COVER

Note: NLA

$

$

Not available

31

Cub Cadet MC-9SKKB-05-16

SCREW

$

$

Not available

32

Cub Cadet MC-9SKKBB04-10

SCREW

Note: NLA

$

$

Not available

33

Cub Cadet MC-9082-MD2002

BAFFLE

Note: NLA

$

$

Not available

34

Cub Cadet MC-9082-MD2006

BAFFLE

Note: NLA

$

$

Not available

35

Cub Cadet MC-9017-MD2013

ENGINE COVER

Note: NLA

$

$

Not available

36

Cub Cadet MC-9228-MD1507

AIR CLEANER ASS'Y

Note: NLA

$

$

Not available

37

Cub Cadet MC-9183-MD0101

FILTER AIR

Note: NLA

$

$

Not available

38

Cub Cadet MC-9SKKBM05-64

SCREW

$

$

Not available

39

Cub Cadet MC-6SDAB-05-08

SCREW

Note: NLA

$

$

Not available

40

Cub Cadet MC-9012-MD0101

O-RING (AIR)

Note: NLA

$

$

Not available

41

Cub Cadet MC-9287-MD1501

CARBURETOR

Note: NLA

$

$

Not available

42

Cub Cadet MC-9014-MD2007

GASKET (CARBURETOR)

Note: NLA

$

$

Not available

43

Cub Cadet MC-9SKKB-05-19

SCREW

$

$

Not available

44

Cub Cadet MC-9211-MD2001

PLATE

Note: NLA

$

$

Not available

45

Cub Cadet MC-9072-MD1501

INSULATOR

Note: NLA

$

$

Not available

46

Cub Cadet MC-9014-MD1504

GASKET (INSULATOR)

$

$

Not available

47

Cub Cadet MC-9SQKBM04-20

SCREW

$

$

Not available

48

Cub Cadet 753-04731

IGNITION ASS'Y

$

$

Not available

49

Cub Cadet 791-610311B

SPARK PLUG

$14.99

$

In Stock, only 2 left!

0

50

Cub Cadet MC-9014-MD2006

GASKET CYLINDER

Note: NLA

$

$

Not available

51

Cub Cadet MC-9014-MD1505

GASKET CYLINDER

Note: NLA

$

$

Not available

52

Cub Cadet MC-9292-MD1501F

CYLINDER

$

$

Not available

53

Cub Cadet MC-9SRCB-05-22

SCREW

$

$

Not available

54

Cub Cadet MC-9014-MD2002

GASKET MUFFLER

Note: NLA

$

$

Not available

55

Cub Cadet MC-9228-MD2008

MUFFLER ASS'Y

Note: NLA

$

$

Not available

56

Cub Cadet MC-9082-MD2005

BAFFLE

Note: NLA

$

$

Not available

57

Cub Cadet MC-9WFB-5.64-12

WASHER

$

$

Not available

58

Cub Cadet MC-9SXMBJ05-53

SCREW

Note: NLA

$

$

Not available

59

Cub Cadet MC-9017-MD2004

COVER

Note: NLA

$

$

Not available

60

Cub Cadet MC-9072-MD2001

BRAKE COVER

$

$

Not available

61

Cub Cadet MC-9SLAZB2.5-6

SCREW

Note: NLA

$

$

Not available

62

Cub Cadet MC-9228-MD2013

BRAKE ASS'Y

$

$

Not available

63

Cub Cadet MC-9014-MD2003

WASHER

Note: NLA

$

$

Not available

64

Cub Cadet MC-9228-MD2014

GEAR ASS'Y

Note: NLA

$

$

Not available

65

Cub Cadet MC-9062-MD2001

SPACER

Note: NLA

$

$

Not available

66

Cub Cadet MC-9WFB-5.1-18

WASHER

Note: NLA

$

$

Not available

67

Cub Cadet MC-9158-MD2003

STEEL BOARD

Note: NLA

$

$

Not available

68

Cub Cadet MC-9SXQAB05-20

SCREW

$

$

Not available

69

Cub Cadet MC-9157-MD2001

FELT

Note: NLA

$

$

Not available

70

Cub Cadet MC-6MB-608-06

BEARING

$8.49

$

Usually ships in 3-6 days

0

71

Cub Cadet MC-9217-MD2002

PLATE

Note: NLA

$

$

Not available

72

Cub Cadet MC-9SKKBM05-15

SCREW

Note: NLA

$

$

Not available
