CC 2236 - Jonsered Brushcutter (2010-11) SHAFT Parts Diagram

Brushcutter

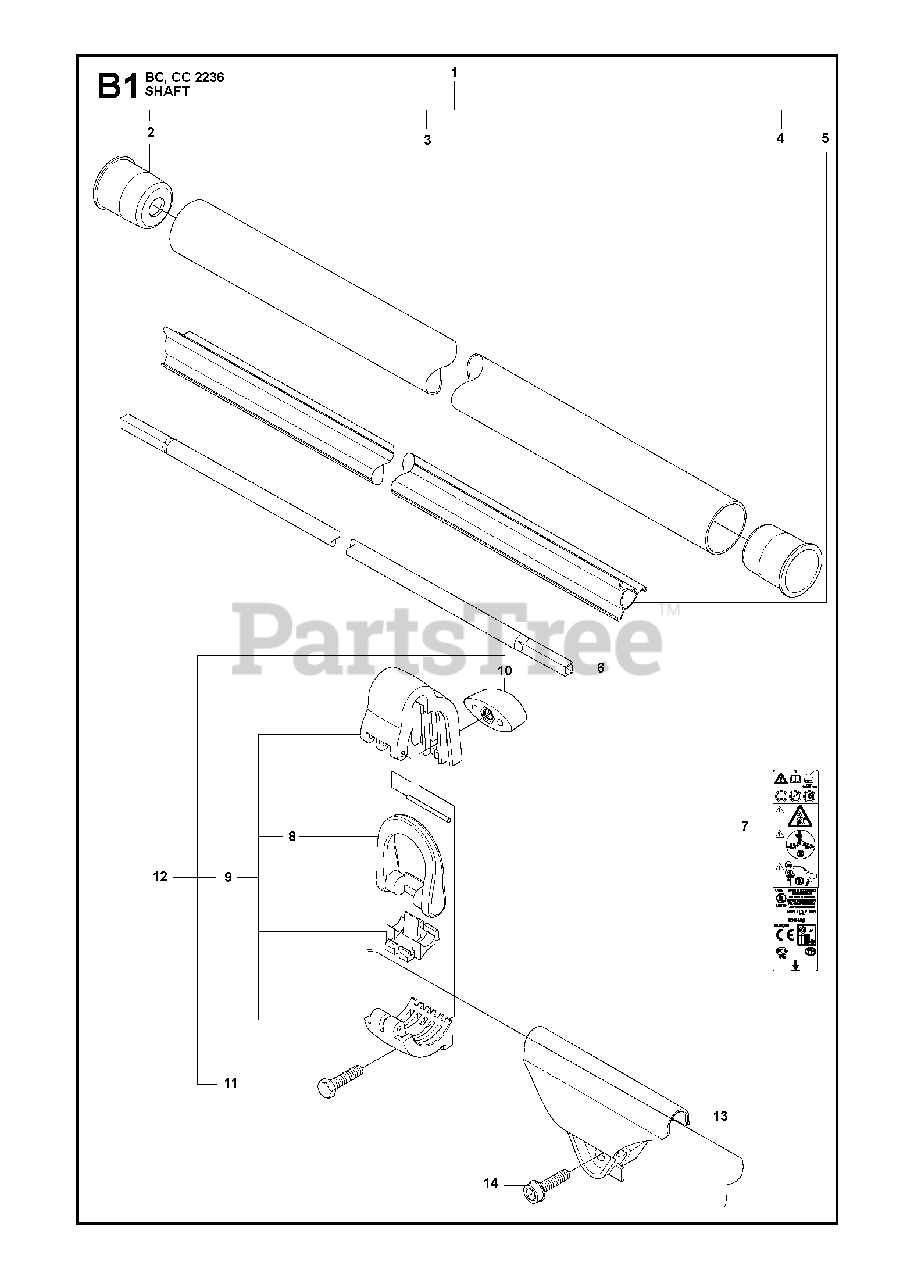

SHAFT Parts Diagram

  • Title

1

Jonsered 537214201

TUBE

Note: BC 2236 CC2236

$

$

Not available

2

Jonsered 537360202

PLUG
(Superseded to 537360201)

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

3

Jonsered 537214101

RP TUBE
(Superseded to 537214201)

Note: 28 mm L 1483 mm. 1

$

$

Not available

4

Jonsered 537360201

PLUG

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

5

Jonsered 537313901

GUIDE

Note: 9 mm L 1400 mm. 1

$28.99

$

Usually ships in 3-10 days

0

6

Jonsered 537355201

SHAFT

Note: 8 mm L 1527 mm

$74.99

$

In Stock, only 1 left!

0

7

Jonsered 537294801

RP WARNING DECAL
(Superseded to 522930205)

$

$

Not available

8

Jonsered 537350102

LOOP

Note: . 9 12

$

$

Not available

9

Jonsered 537349802

No Description Available

Note: . 12

$

$

Not available

10

Jonsered 537130403

No Description Available

Note: . 12

$6.91

$

Usually ships in 3-10 days

0

11

Jonsered 725233151

SCREW M6S 5X20

Note: . 12

$3.49

$

Usually ships in 3-10 days

0

12

Jonsered 537349702

No Description Available

$

$

Not available

13

Jonsered 537376102

No Description Available

$

$

Not available

14

Jonsered 503217516

SCREW

$4.99

$

In Stock, only 4 left!

0
