CC 2235 - Jonsered Brushcutter (2011-02) STARTER Parts Diagram

Brushcutter

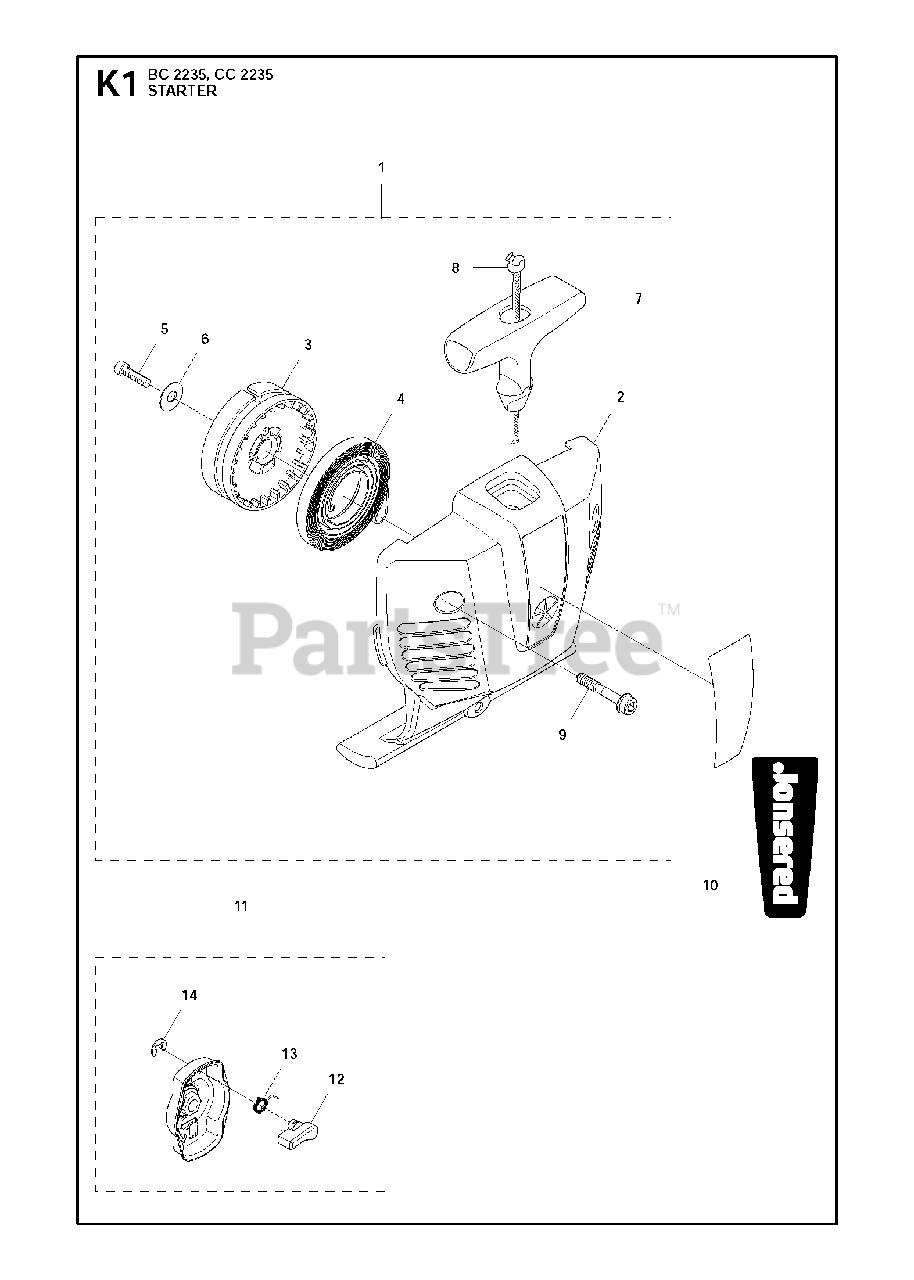

STARTER Parts Diagram

  • Title

1

Jonsered 544128402

STARTER HOUSING

$34.99

$

Usually ships in 3-10 days

0

2

Jonsered 544126402

STARTER HOUSING
(Superseded to 544126401)

Note: Spare part with Captive Screw. 1

$26.99

$

Usually ships in 3-10 days

0

3

Jonsered 537325002

%STARTER PULLEY
(Superseded to 537325003)

Note: . 1

$17.99

$

Usually ships in 3-10 days

0

4

Jonsered 503859901

STARTER SPRING

Note: . 1

$31.99

$

In Stock, only 1 left!

0

5

Jonsered 503217920

SCREW

Note: . 1

$8.99

$

Usually ships in 3-10 days

0

6

Jonsered 535072301

WASHER

Note: . 1

$5.99

$

Usually ships in 3-10 days

0

7

Jonsered 503997701

HANDLE

Note: . 1

$5.99

$

Usually ships in 3-10 days

0

8

Jonsered 505305125

STARTER ROPE

Note: . 1

$9.49

$

In Stock, Qty 6

0

9

Jonsered 573994305

SCREW IHSCFMO

Note: Captiv Screw. 1

$6.49

$

Usually ships in 3-10 days

0

10

Jonsered 537182801

DECAL

$4.99

$

Usually ships in 3-10 days

0

11

Jonsered 503873305

STARTER PAWL BRIDGE

$26.99

$

Usually ships in 3-10 days

0

12

Jonsered 503873502

STARTER PAWL
(Superseded to 544011401)

Note: . 11

$11.99

$

In Stock, only 3 left!

0

13

Jonsered 503873601

SPRING

Note: . 11

$7.49

$

In Stock, only 3 left!

0

14

Jonsered 735310820

E-RING 4

Note: . 11

$4.99

$

In Stock, Qty 20+

0
