CC 2235 - Jonsered Brushcutter (2011-02) BEVEL GEAR Parts Diagram

Brushcutter

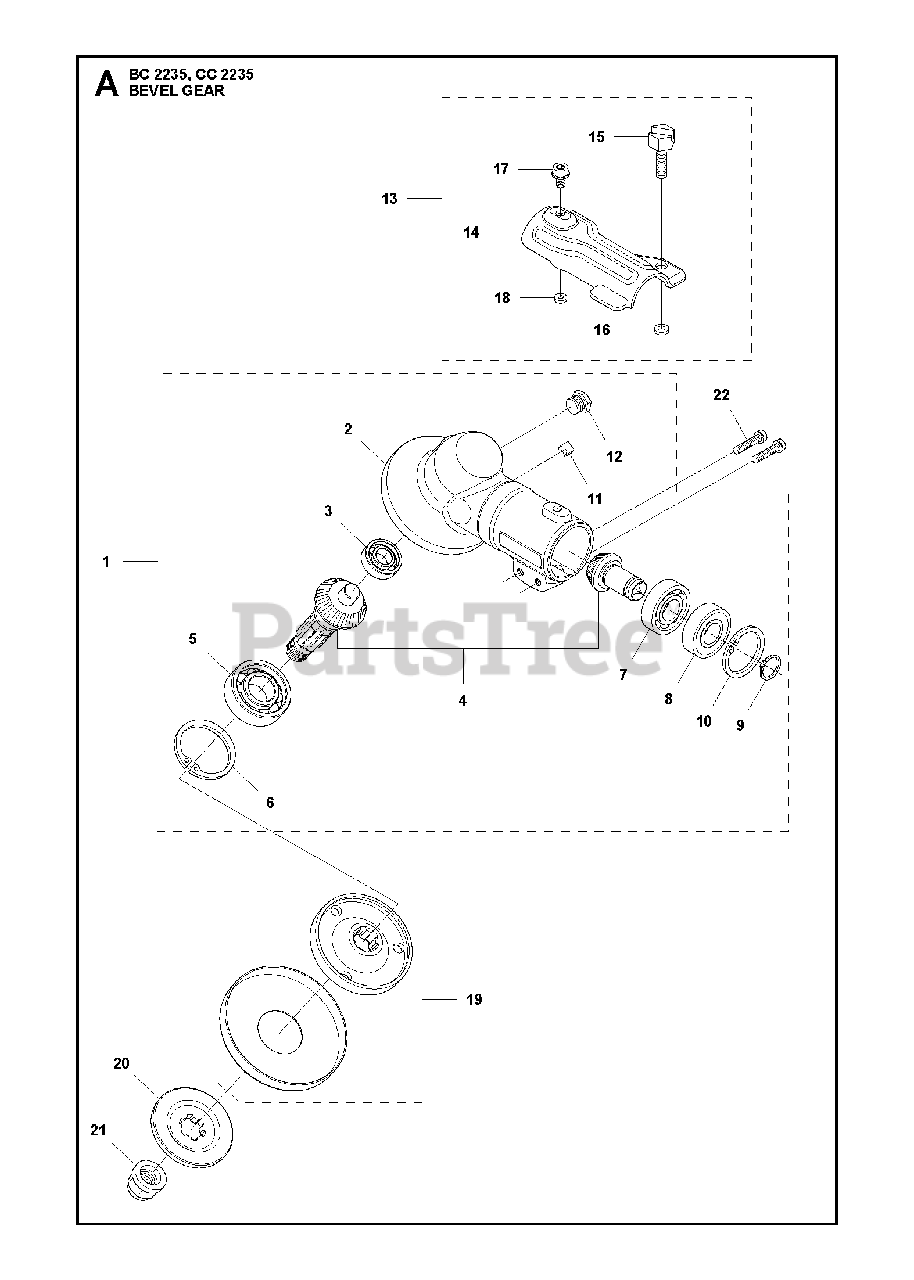

BEVEL GEAR Parts Diagram

  • Title
1

Jonsered 544216401

GEAR COMPLETE

$278.99

$

Usually ships in 3-10 days

0

2

Jonsered 537295902

GEAR CASE

Note: . 1

$121.99

$

Usually ships in 3-10 days

0

3

Jonsered 738219900

BALL BEARING 24X9X1/609ZR

Note: . 1

$13.99

$

In Stock, only 2 left!

0

4

Jonsered 505133301

SPARE PARTS KIT

Note: . 1

$72.99

$

Usually ships in 3-10 days

0

5

Jonsered 503252801

BALL BEARING

Note: . 1

$27.99

$

Usually ships in 3-10 days

0

6

Jonsered 735313110

RETAINING RING

Note: . 1

$4.99

$

In Stock, only 3 left!

0

7

Jonsered 738210110

BALL BEARING

Note: . 1

$24.99

$

Usually ships in 3-10 days

0

8

Jonsered 738210112

BALL BEARING

Note: . 1

$34.99

$

Usually ships in 3-10 days

0

9

Jonsered 735311400

SEEGER CLIP

Note: . 1

$6.49

$

Usually ships in 3-10 days

0

10

Jonsered 735312810

RETAINING RING SGH 28

Note: . 1

$7.49

$

In Stock, only 3 left!

0

11

Jonsered 537147401

MAGNET

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

12

Jonsered 503201501

PLUG

Note: . 1

$9.99

$

In Stock, only 1 left!

0

13

Jonsered 574306801

CLAMP
(Superseded to 574306803)

$10.99

$

Usually ships in 3-10 days

0

14

Jonsered 544087601

RP HOLDER
(Superseded to 574306801)

Note: . 13

$10.99

$

Usually ships in 3-10 days

0

15

Jonsered 537189501

SCREW

Note: . 13

$7.49

$

Usually ships in 3-10 days

0

16

Jonsered 732211601

LOCKNUT M6

Note: . 13

$5.99

$

In Stock, only 1 left!

0

17

Jonsered 503200210

SCREW
(Superseded to 503200710)

Note: . 13

$6.49

$

In Stock, Qty 20+

0

18

Jonsered 574039501

LOCKING NUT

Note: . 13

$3.99

$

Usually ships in 3-10 days

0

19

Jonsered 537351401

RP CARRIER
(Superseded to 537351402)

$53.99

$

In Stock, only 2 left!

0

20

Jonsered 537343501

RP FLANGE
(Superseded to 537343502)

$26.99

$

In Stock, only 1 left!

0

21

Jonsered 502291101

NUT BLADE

$7.99

$

In Stock, only 1 left!

0

$7.49

$

Usually ships in 3-10 days

0
