CC 2090 (41ADC90C912) - Cub Cadet String Trimmer (2009) Engine Assembly Parts Diagram

String Trimmer

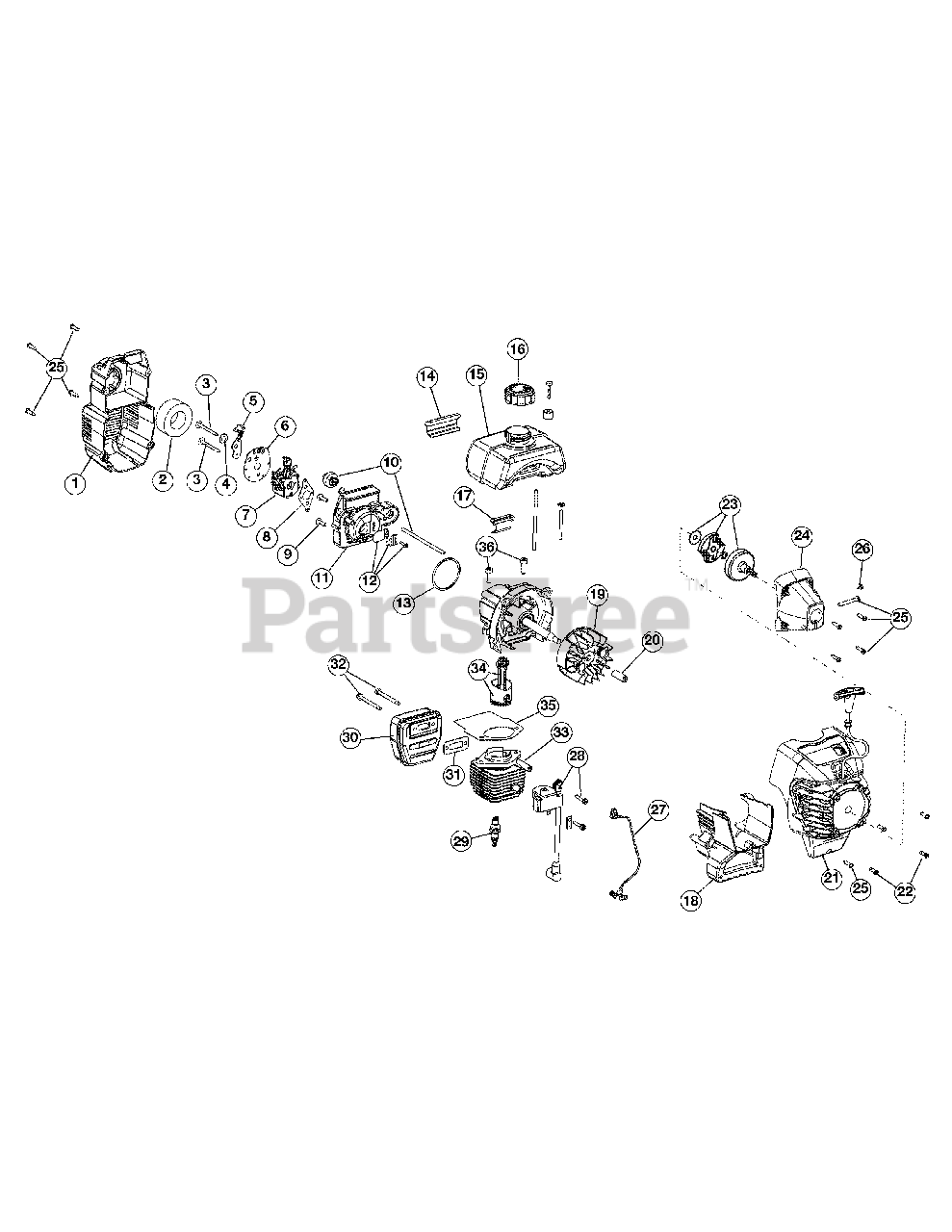

Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 753-04511

Air Cleaner Cover Assembly

Note: (Incl. Ref No. 2)

$38.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

Cub Cadet 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

Cub Cadet 936-0271

Wavey Washer

$4.49

$

In Stock, Qty 10

0

5

Cub Cadet 753-04418

Choke Lever

$

$

Not available

6

Cub Cadet 753-04419

Choke Plate

Note: (Incl. Ref No. 5)

$

$

Not available

7

Cub Cadet 753-05133

Carburetor Assembly

Note: (Incl. Ref No. 8)

$81.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 791-180602

Carburetor Kit - Walbro

$71.99

$

Usually ships in 3-6 days

0

7

Cub Cadet n/a

Carburetor Kit - Zama

Note: (use Zama RB-98 Carb kit, purchase locally)

$

$

Currently unavailable

7

Cub Cadet n/a

Carburetor Kit - Ruixing

Note: (No repair kit available)

$

$

Currently unavailable

8

Cub Cadet 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 18

0

9

Cub Cadet 791-181860

Carb Mount Screw

$

$

Not available

10

Cub Cadet 791-683974B

Primer & Hose Assembly

$22.99

$

In Stock, Qty 17

0

11

Cub Cadet 753-1196

Carb Mount Assembly

Note: (Incl. Ref No. 9, 12 & 13)

$

$

Not available

12

Cub Cadet 791-684451

Reed Assembly

$

$

Not available

13

Cub Cadet 721-04163

Carburetor O-Ring

$3.99

$

In Stock, Qty 6

0

14

Cub Cadet 791-612134

Rear Mounting Pad

$

$

Not available

15

Cub Cadet 791-182767

Fuel Tank Assembly

Note: (Incl. Ref No. 16)

$

$

Not available

16

Cub Cadet 753-04084

Fuel Cap Assembly

$22.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 791-145308

Front Mounting Pad

$

$

Not available

18

Cub Cadet 753-05091

Shroud Extension & Stand

Note: (Incl. Ref No. 25)

$19.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 753-05240

Flywheel Assembly

$76.99

$

In Stock, only 2 left!

0

20

Cub Cadet 791-181525

Spacer

$22.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 753-05492

Starter Housing Assembly

Note: (Incl. Ref No. 22 & 25)

$73.99

$

In Stock, only 1 left!

0

22

Cub Cadet 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

23

Cub Cadet 753-05860

Clutch Rotor Assembly

$25.99

$

In Stock, Qty 9

0

24

Cub Cadet 753-04889

Clutch Cover Assembly

Note: (Incl. Ref No. 25 & 26)

$21.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 791-181345

Cover Screw

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 4 left!

0

27

Cub Cadet 753-05025

Wire Leads and Sleeve

$13.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 753-04336

Module Assembly

$107.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 791-610311B

Spark Plug

$14.99

$

In Stock, only 2 left!

0

30

Cub Cadet 753-05169

Muffler Assembly

Note: (Incl. Ref No. 31 & 32)

$112.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 753-04619

Exhaust Gasket

$9.49

$

In Stock, only 3 left!

0

32

Cub Cadet 710-04188A

Muffler Mounting Bolts

$4.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 753-04814

Cylinder Assembly

Note: (Incl. Ref No. 35 & 36)

$83.99

$

In Stock, only 1 left!

0

34

Cub Cadet 753-04367

Piston and Rod Assembly

$

$

Not available

35

Cub Cadet 753-04182

Cylinder Gasket

$16.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

Cub Cadet 753-1209

Piston Ring Set

Note: (Not Shown)

$52.99

$

Usually ships in 3-6 days

0

Cub Cadet 753-04812

Short Block Assembly

Note: (Not Shown) (Incl. Ref No. 9, Crankcase, 24 & 33-36)

$208.99

$

Usually ships in 3-6 days

0
