CC 2025 (41ADC25C712) - Cub Cadet String Trimmer (2005) General Assembly Parts Diagram

String Trimmer

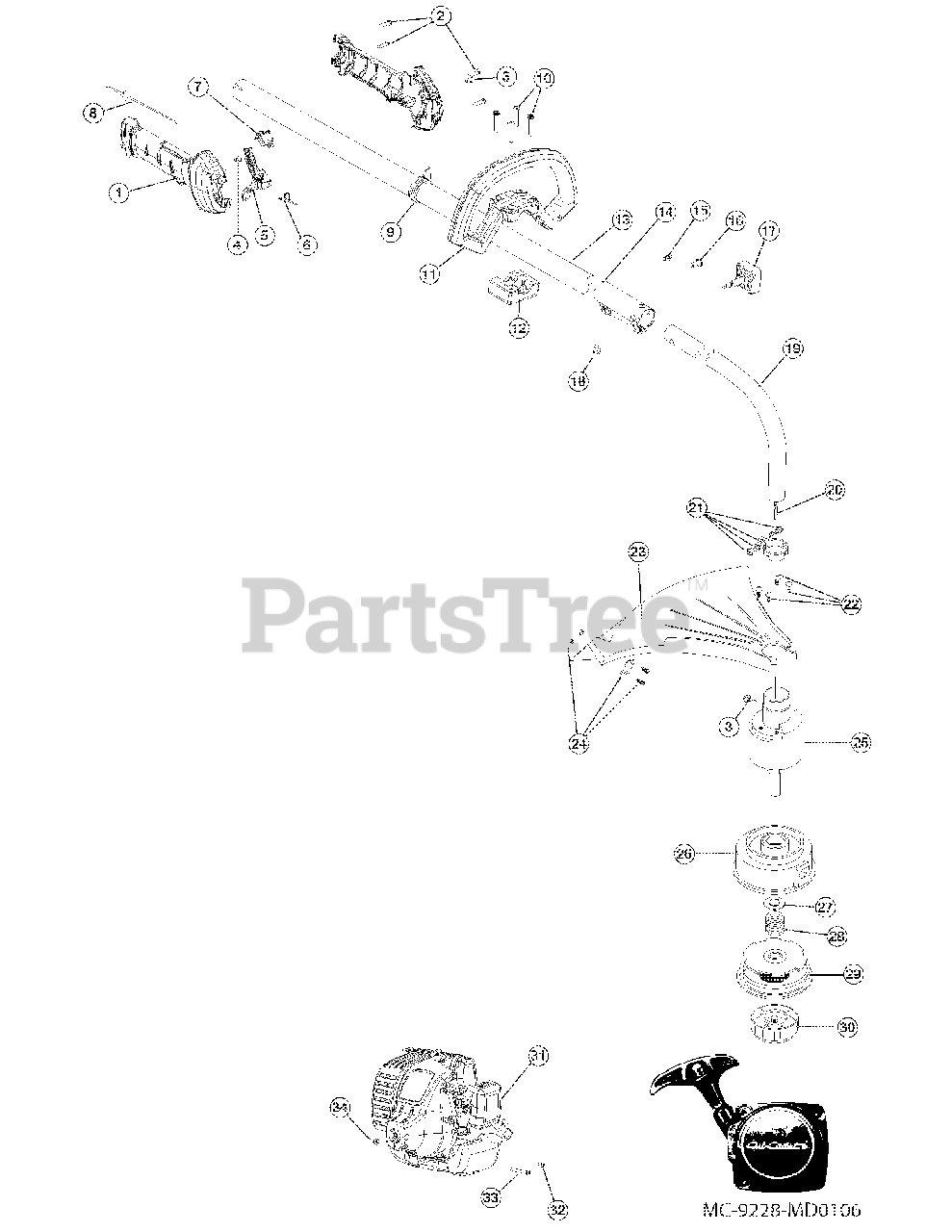

General Assembly Parts Diagram

  • Title

1

Cub Cadet 753-05296

Throttle Grip Assembly (includes2-7)
(Superseded to 753-09645)

$12.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 791-181345

Screw

$4.49

$

In Stock, only 4 left!

0

3

Cub Cadet 791-182519

Anti-Rotation Screw

$4.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 791-182474

Throttle Cable Mounting Screw
(Superseded to 3661)

$7.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 753-04991

Throttle Trigger
(Superseded to 731-04970B-10)

$9.49

$

In Stock, Qty 16

0

6

Cub Cadet 753-05007

Throttle Trigger Spring

$5.49

$

In Stock, only 2 left!

0

7

Cub Cadet 791-182673

Switch

$10.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 791-181688

Throttle Cable
(Superseded to 753-05088)

$20.99

$

In Stock, only 3 left!

0

9

Cub Cadet 791-610327

Harness Clip

$32.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 753-05008

D-Handle

$31.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 753-05009

D-Handle Base

$7.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 753-04236

Upper Drive Shaft Assembly

$94.99

$

In Stock, only 4 left!

0

14

Cub Cadet 791-182928

Split Boom Coupler Assembly (includes15-18)

$

$

Not available

15

Cub Cadet 791-182057

Screw

$4.49

$

In Stock, Qty 7

0

16

Cub Cadet 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

17

Cub Cadet 791-181951

Knob (includes18)
(Superseded to 791-181981)

$

$

Not available

18

Cub Cadet 753-04386

Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 5

0

19

Cub Cadet 753-1218

Lower Drive Shaft Housing Assembly

$105.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 791-181852

Lower Flex Shaft

$59.99

$

In Stock, only 1 left!

0

21

Cub Cadet 791-153597

Lower Clamp Assembly

$

$

Not available

22

Cub Cadet 791-181858

Shield Mounting Screws

$

$

Not available

23

Cub Cadet 791-181659

Shield Assembly (includes24)

$

$

Not available

24

Cub Cadet 791-181823

Blade Assembly

$12.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 791-181784

Bushing Housing Assembly w/shaft

$

$

Not available

25

Cub Cadet 791-153312

Bushing Housing w/o shaft

$

$

Not available

26

Cub Cadet 791-153619

Outer Spool assembly (includes27)

$27.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 791-610317B

Spring

$10.99

$

In Stock, Qty 8

0

29

Cub Cadet 753-1155

Inner Reel

$22.99

$

In Stock, Qty 6

0

30

Cub Cadet 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 20+

0

31

Cub Cadet 753-05006

Engine Assembly

$

$

Not available

32

Cub Cadet 791-182519

Anti-Rotation Screw

$4.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 753-04003

Clamping Screw
(Superseded to 9689A)

$11.99

$

In Stock, only 1 left!

0

34

Cub Cadet 791-180217

Nut
(Superseded to 712-0161)

$4.49

$

In Stock, only 1 left!

0

Cub Cadet 791-181757

Air Cleaner Filter

Note: Not shown

$3.99

$

In Stock, Qty 20+

0

Cub Cadet MC-9228-330602

Fuel Cap
(Superseded to 791-182612)

Note: Not shown

$20.99

$

In Stock, Qty 10

0

Cub Cadet 791-610311B

Spark Plug

Note: Not shown

$14.99

$

In Stock, only 3 left!

0

Cub Cadet MC-9228-MD0106

Recoil Assembly, includes includes pulley, rope & spring

$

$

Not available

Cub Cadet 791-180120

Replacement Line, 0.095" Diameter Optional Accessories, (Not Shown)
(Superseded to 953-1156)

Note: Optional Accessories, (Not Shown)

$31.99

$

In Stock, only 1 left!

0

Cub Cadet 753-1156

Reeland Line Assembly Optional Accessories, (Not Shown)
(Superseded to 953-1156)

Note: Optional Accessories, (Not Shown)

$31.99

$

In Stock, only 1 left!

0

Cub Cadet 791-682075B

Shoulder Strap

Note: Optional Accessories, (Not Shown)

$38.99

$

Usually ships in 3-6 days

0

Cub Cadet 753-1157

Bump Head Assembly

Note: Optional Accessory; Not Shown

$

$

Not available

Cub Cadet 753-04985

Head Assembly

Note: includes Ref 25 - 30, Optional Accessory; Not Shown

$27.99

$

Usually ships in 3-6 days

0
