CC 2000 (41ADC02G100) - Cub Cadet String Trimmer (2002) Boom And Trimmer (Bump Head) Parts Diagram

String Trimmer

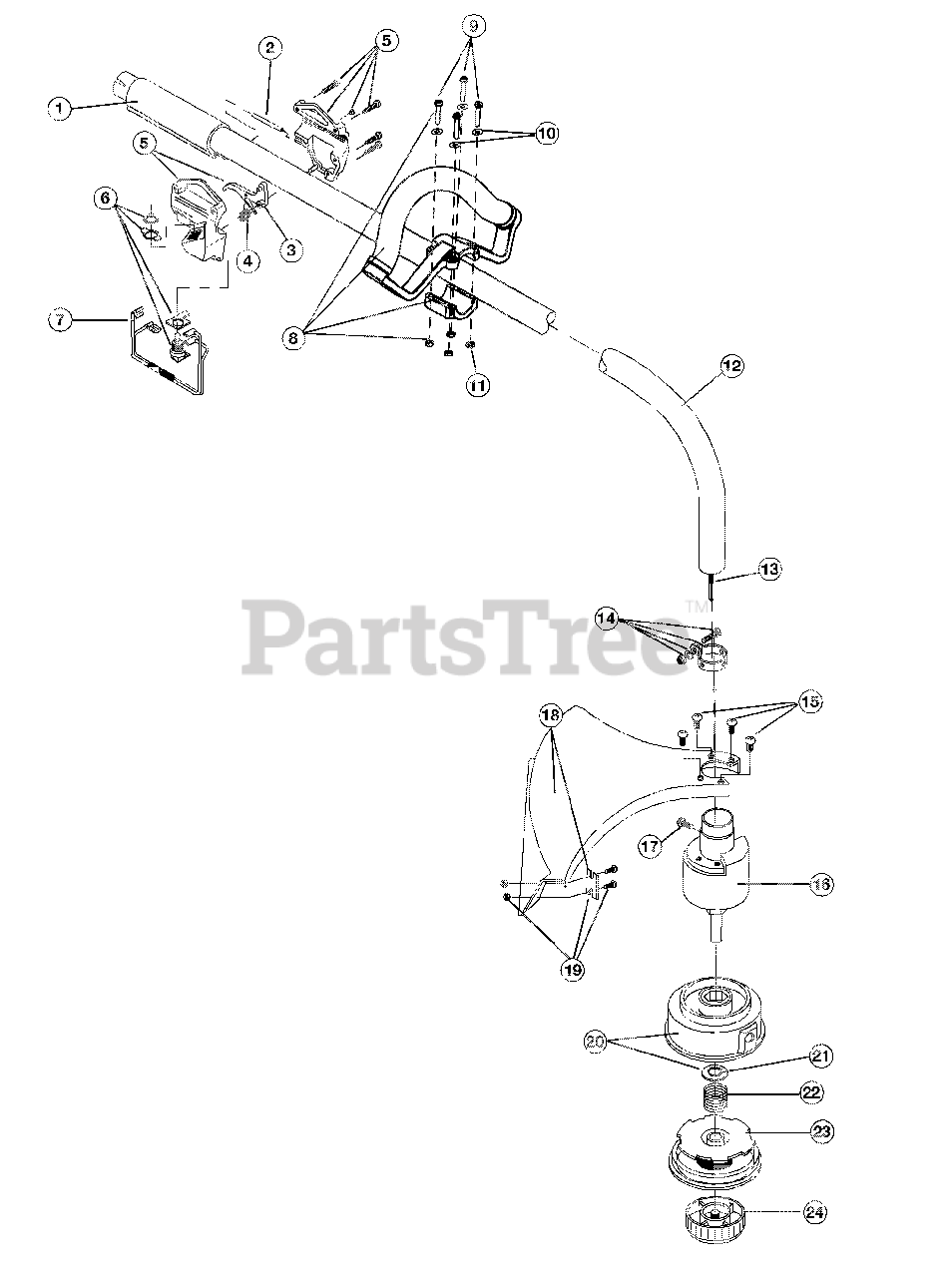

Boom And Trimmer (Bump Head) Parts Diagram

  • Title

1

Cub Cadet 791-180866

Grip

$

$

Not available

2

Cub Cadet 791-181688

Throttle Cable Assembly
(Superseded to 753-05088)

$20.99

$

In Stock, only 3 left!

0

3

Cub Cadet 791-180975

Throttle Trigger
(Superseded to 791-181807)

$9.99

$

In Stock, Qty 7

0

4

Cub Cadet 791-610314

Throttle Trigger Spring

$9.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 753-1150

Throttle Trigger Assembly

Note: (Includes 3 & 4)

$

$

Not available

6

Cub Cadet 791-180252

Switch Assembly

$

$

Not available

7

Cub Cadet 791-181690

Wire Lead Assembly

$

$

Not available

8

Cub Cadet 753-1151

Loop Handle Assembly

Note: (Includes 9-11)

$

$

Not available

9

Cub Cadet 753-1152

Screw

$

$

Not available

10

Cub Cadet 753-1153

Washer

$

$

Not available

11

Cub Cadet 753-1154

Nut
(Superseded to 9072)

$

$

Not available

12

Cub Cadet 791-182838

Drive Shaft Housing Assembly

$

$

Not available

13

Cub Cadet 791-182839

Flexible Drive Shaft
(Superseded to 753-04280)

$81.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 791-153597

Lower Clamp Assembly

$

$

Not available

15

Cub Cadet 791-180531

Shield Mounting Screw
(Superseded to 791-181858)

$

$

Not available

16

Cub Cadet 791-181784

Bushing Housing Assembly

$

$

Not available

17

Cub Cadet 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

18

Cub Cadet 791-181659

Shield and Blade Assembly

Note: (Includes 19)

$

$

Not available

19

Cub Cadet 791-682061

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

20

Cub Cadet 791-153619

Outer Spool w/ Retainer

Note: (Includes 21)

$27.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 791-610317B

Spring

$10.99

$

In Stock, Qty 6

0

23

Cub Cadet 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

24

Cub Cadet 791-153066B

Bump Knob Assembly

$13.99

$

In Stock, Qty 19

0

Cub Cadet 753-1156

Reel and Line Assembly New
(Superseded to 953-1156)

Note: Optional Accessory; Not Shown

$31.99

$

In Stock, only 1 left!

0

Cub Cadet 753-1157

Bump Head Assembly

Note: Optional Accessory; Not Shown

$

$

Not available

Cub Cadet 791-682075B

Shoulder Harness

Note: Optional Accessory; Not Shown

$38.99

$

Usually ships in 3-6 days

0
