CC 189 (11A-189Q256) - Cub Cadet Walk-Behind Mower (2008) Carburetor Parts Diagram

Walk-Behind Mower

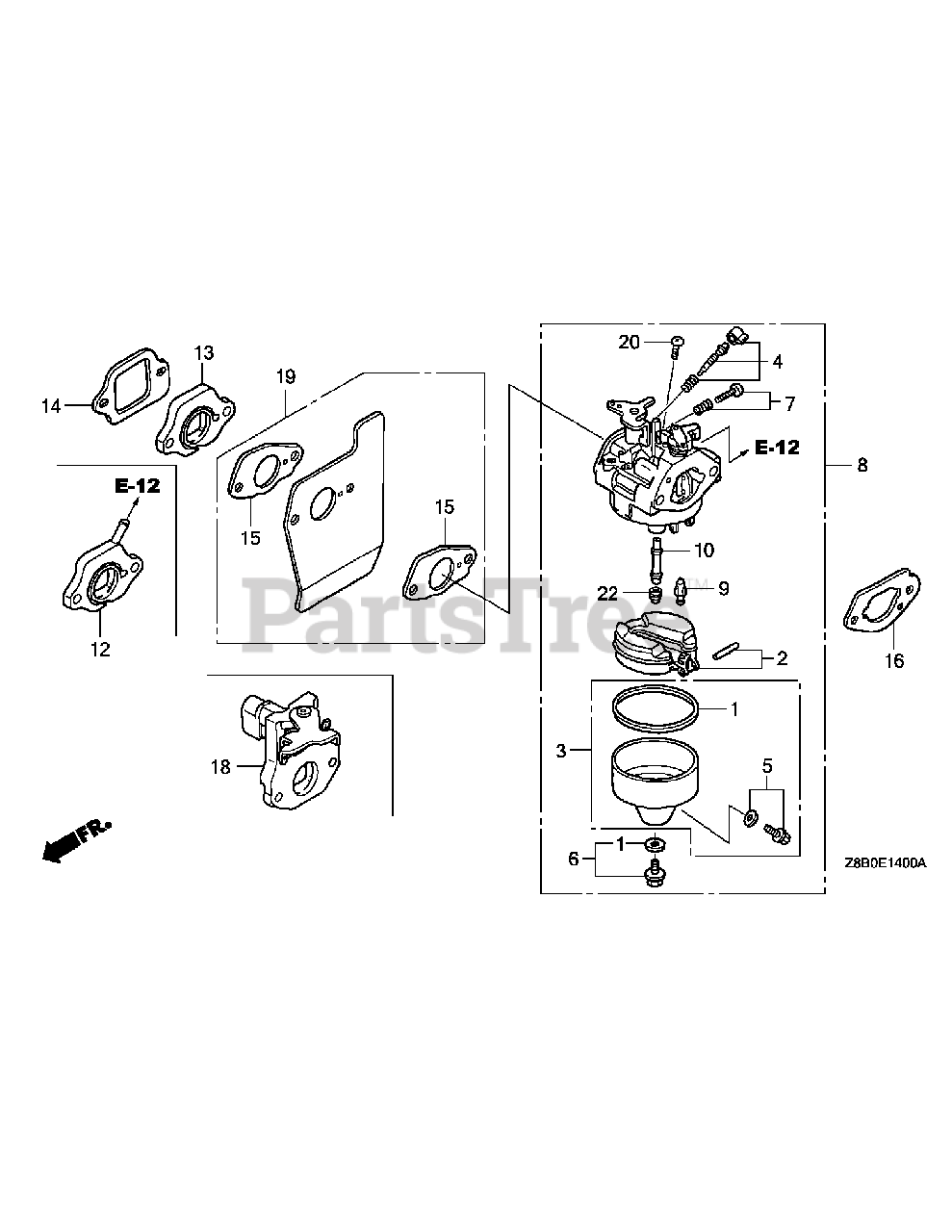

Carburetor Parts Diagram

  • Title

1

Honda 16010-883-015

PACKING KIT

Note: includes o-ring and washer

$12.99

$

In Stock, Qty 5

0

2

Honda 16013-ZL1-003

FLOAT SET

$31.99

$

In Stock, only 2 left!

0

3

Honda 16015-887-782

CHAMBER SET, FLOAT

$32.99

$

In Stock, only 1 left!

0

4

Honda 16016-ZG0-W00

SCREW SET

$12.99

$

In Stock, only 1 left!

0

5

Honda 16024-ZE1-811

SCREW SET, DRAIN

$10.99

$

In Stock, only 3 left!

0

6

Honda 16028-ZE0-005

SCREW SET
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

7

Honda 16029-ZG0-901

SCREW SET (THROTTLE STOP)

$11.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 16100-Z0L-851

CARBURETOR ASSY. (BB62Z A)
(Superseded to 16100-Z0L-853)

$21.99

$

In Stock, only 3 left!

0

9

Honda 16155-ZM0-013

VALVE, FLOAT

$34.99

$

In Stock, only 2 left!

0

10

Honda 16166-ZM0-003

NOZZLE, MAIN

$21.99

$

In Stock, only 1 left!

0

12

Cub Cadet N/A

INSULATOR, COMP. CARBURETOR

Note: Not used in this application

$

$

Currently unavailable

13

Honda 16211-ZL8-000

INSULATOR, CARBURETOR

$4.49

$

In Stock, Qty 20+

0

14

Honda 16212-ZL8-000

PACKING, INSULATOR

$7.99

$

In Stock, Qty 6

0

15

Honda 16221-883-800

PACKING, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

16

Honda 16228-ZL8-000

PACKING, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

18

Honda 16600-Z0L-840

CONTROL ASSY., CHOKE

$

$

Not available

19

Honda 19650-ZM0-000

GUIDE COMP., AIR

$8.99

$

In Stock, only 3 left!

0

20

Cub Cadet 93500-05006-1H

SCREW, PAN, 5X6

$

$

Not available

22

Honda 99101-124-0600

JET, MAIN, #60

$12.99

$

In Stock, Qty 6

0

22

Honda 99101-124-0620

JET, MAIN, #62

$11.99

$

Usually ships in 3-6 days

0

22

Honda 99101-124-0650

JET, MAIN, #65

$12.99

$

In Stock, only 2 left!

0
