CC-148 (21AK148G912) - Cub Cadet Tiller (2015) General Assembly Parts Diagram

Tiller

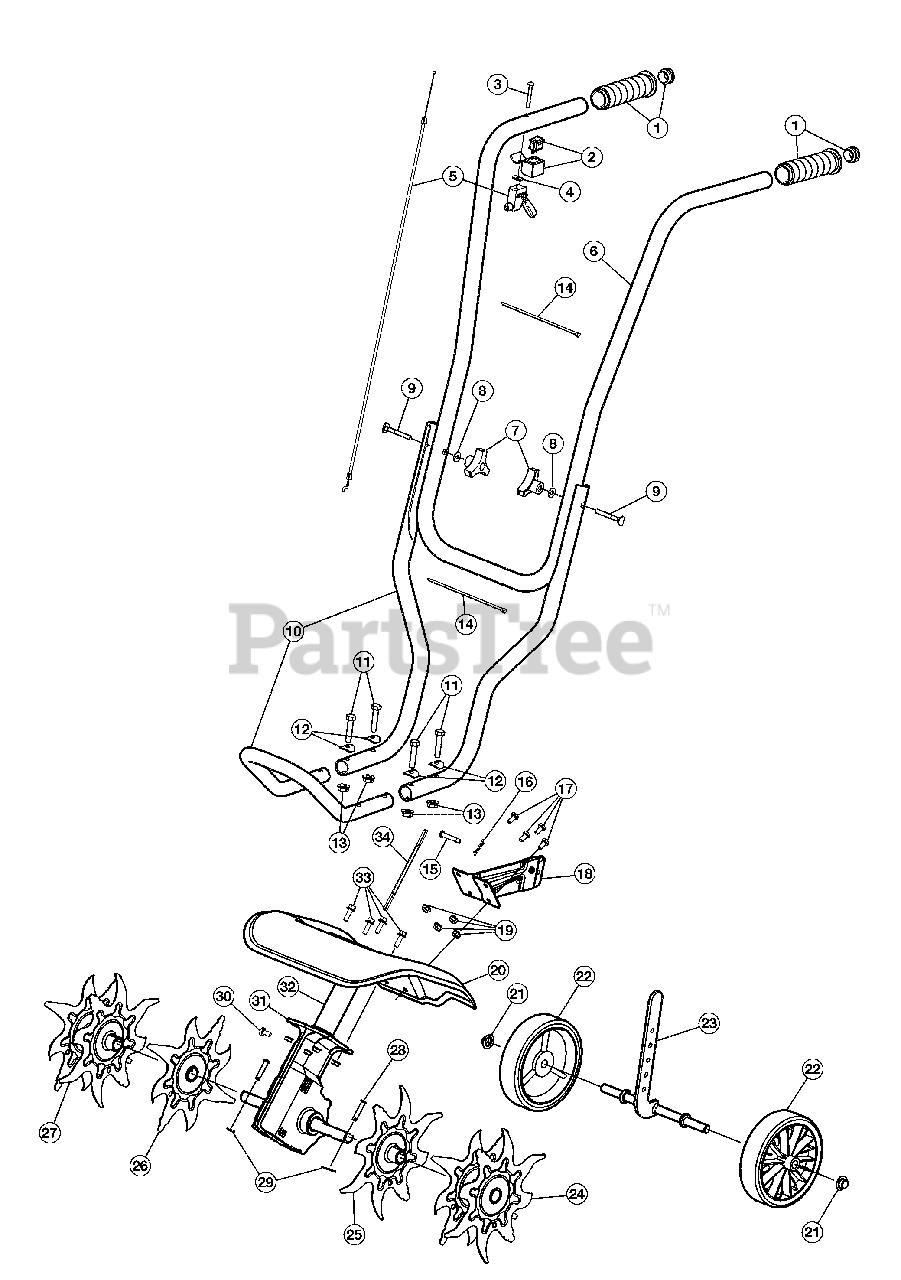

General Assembly Parts Diagram

  • Title

$

$

Not available

2

Cub Cadet 753-04003

Screw
(Superseded to 9689A)

$11.99

$

In Stock, Qty 16

0

3

Cub Cadet 753-06006

Switch Assembly

$13.99

$

Usually ships in 3-6 days

0

$

$

Not available

5

Cub Cadet 753-06007

Throttle Assembly

$28.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 791-182882

Upper Handle

$

$

Not available

$14.99

$

In Stock, only 2 left!

0

8

Cub Cadet 936-0451

Washer
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

9

Cub Cadet 753-182899

Bolt
(Superseded to 791-182899)

$7.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 941-080310S

Lower Handle Assembly

$32.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0805

Bolt
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 936-0451

Washer
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

13

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 711-1017

Clevis Pin

$7.49

$

In Stock, only 1 left!

0

16

Cub Cadet 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3013

Cap Screw

$4.99

$

In Stock, Qty 11

0

18

Cub Cadet 753-04058

Tailpiece Bracket Assembly

$41.99

$

Usually ships in 3-6 days

0

19

$4.49

$

In Stock, Qty 17

0

20

Cub Cadet 786-04393

Tine Shield
(Superseded to 986-04393-17)

$36.99

$

Usually ships in 3-6 days

0

21

$8.49

$

In Stock, Qty 20+

0

22

Cub Cadet 1917754

Wheel
(Superseded to 734-04261)

$21.99

$

In Stock, only 1 left!

0

23

Cub Cadet 753-04063

Wheel Support Bracket Assembly

$58.99

$

In Stock, only 1 left!

0

24

Cub Cadet 753-05986

Tine (Left Outer)

$40.99

$

In Stock, only 1 left!

0

25

Cub Cadet 753-05987

Tine (Left Inner)

$40.99

$

In Stock, only 1 left!

0

26

Cub Cadet 753-05986

Tine (Right Inner)

$40.99

$

In Stock, only 1 left!

0

27

Cub Cadet 753-06016

Tine (Right Outer)

$25.99

$

In Stock, only 4 left!

0

28

Cub Cadet 711-1017

Clevis Pin

$7.49

$

In Stock, only 1 left!

0

29

$4.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 710-0599

Sleeve Retaining Bolt

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 753-06063

Gear Box Assembly

$133.99

$

In Stock, Qty 5

0

32

Cub Cadet 753-06242

Drive Shaft Housing

$22.99

$

Usually ships in 3-6 days

0

33

$4.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 753-04499

Flex Shaft

$29.99

$

In Stock, Qty 6

0
