CC-148 (21AK148G912) - Cub Cadet Tiller (2015) Engine Assembly Parts Diagram

Tiller

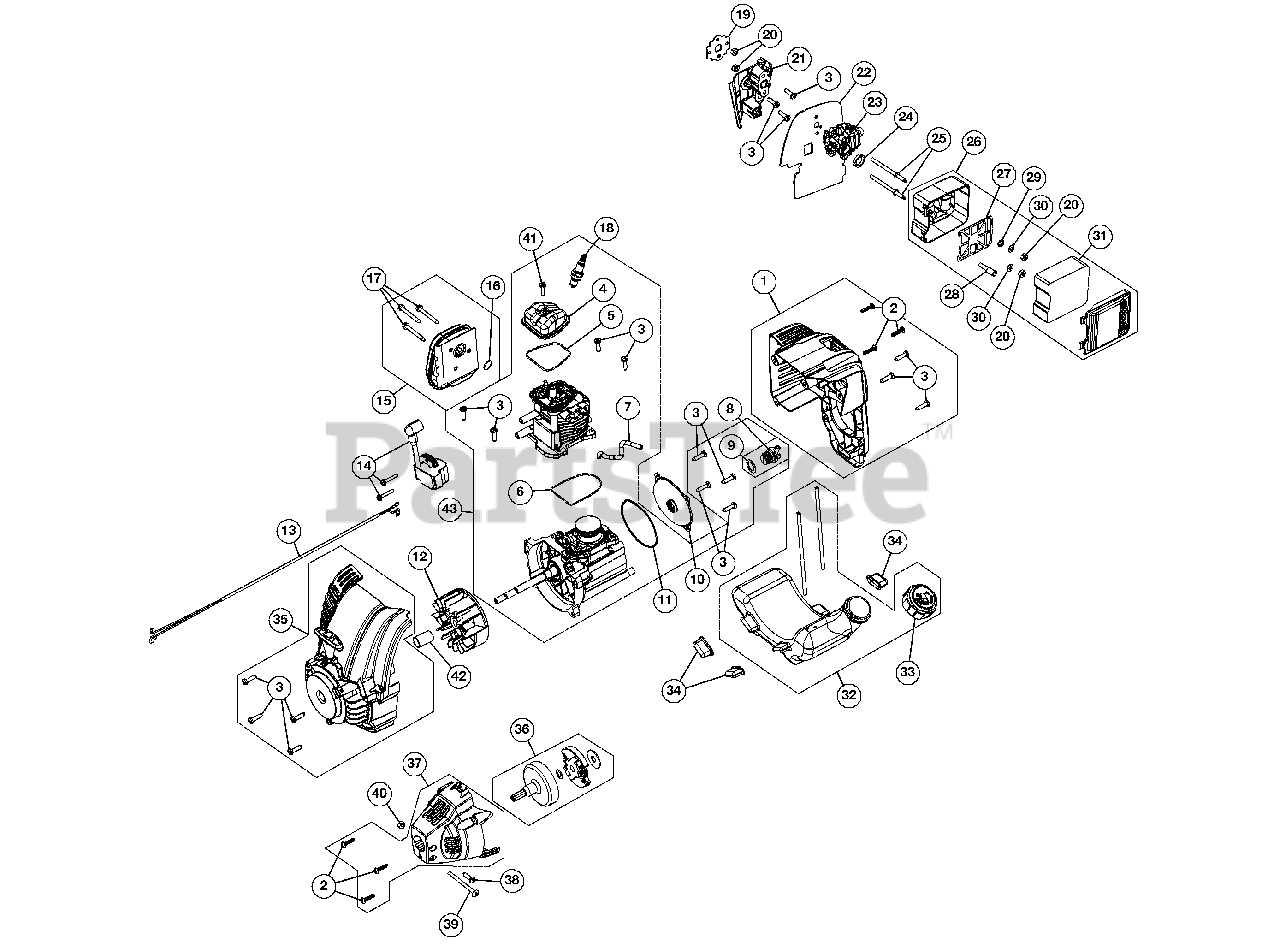

Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 753-06237

Engine Cover Assembly (Incl. 2 & 3)

$22.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-04194

Cover Screw

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-04604

Starter Screw

$4.49

$

In Stock, only 3 left!

0

4

Cub Cadet 753-05901

Rocker Cover

$8.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 753-05902

Rocker Cover O-Ring

$5.49

$

In Stock, only 2 left!

0

6

Cub Cadet 753-05910

Cylinder O-Ring

$3.49

$

In Stock, only 1 left!

0

7

Cub Cadet 791-182379

Breather Hose

$4.99

$

In Stock, only 1 left!

0

8

Cub Cadet 753-05408

Oil Plug (Incl. 9)

$29.99

$

In Stock, only 1 left!

0

9

Cub Cadet 791-182290

Oil Plug O-Ring

$4.99

$

In Stock, Qty 11

0

10

Cub Cadet 753-06111

Crankcase Cover
(Superseded to 841-020721S)

$13.99

$

In Stock, only 2 left!

0

11

Cub Cadet 753-05238

Crankcase Cover O-ring

$10.99

$

In Stock, only 1 left!

0

12

Cub Cadet 753-06221

Flywheel Assembly

$21.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 753-05785

Lead Wires

$10.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 753-05447

Module Assembly

$103.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 753-06238

Muffler Assembly (Incl. 16 & 17)

$30.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 753-05244

Muffler Gasket

$5.99

$

In Stock, Qty 8

0

17

Cub Cadet 710-04487

Muffler Screw
(Superseded to 710-04809)

$3.49

$

In Stock, only 1 left!

0

18

Cub Cadet 794-00043

Spark Plug
(Superseded to 794-00082)

$7.49

$

In Stock, Qty 6

0

19

Cub Cadet 753-05247

Insulator Gasket

$

$

Not available

20

Cub Cadet 712-04099

Nut

$6.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 753-05249

Insulator

$18.99

$

In Stock, only 1 left!

0

22

Cub Cadet 753-05366

Carburetor Gasket

$19.99

$

In Stock, Qty 7

0

23

Cub Cadet 753-06258A

Carburetor w/Primer

$60.99

$

In Stock, only 4 left!

0

24

Cub Cadet 753-04030

Carburetor O-Ring

$10.99

$

In Stock, Qty 5

0

25

Cub Cadet 710-04645

Air Filter Mounting Screw
(Superseded to 710-04517)

$5.49

$

In Stock, Qty 20+

0

26

Cub Cadet 753-06541

Air Cleaner Cover Assembly (Incl. 27-31)

$

$

Not available

27

Cub Cadet 791-182657

Air Filter Plate

$

$

Not available

28

Cub Cadet 791-182097

Breather Tube Assembly

$10.99

$

In Stock, only 1 left!

0

29

Cub Cadet 791-181000

Air Cleaner O-Ring

$

$

Not available

30

Cub Cadet 791-182409

Washer

$4.99

$

In Stock, Qty 5

0

31

Cub Cadet 753-05506

Air Filter

$4.49

$

In Stock, only 3 left!

0

32

Cub Cadet 753-06240

Fuel Tank Assembly w/Fuel Lines (Incl. 34)

$29.99

$

In Stock, only 4 left!

0

33

Cub Cadet 753-1229

Fuel Cap

$22.99

$

In Stock, only 1 left!

0

34

Cub Cadet 753-05259

Fuel Tank Pads

$6.99

$

In Stock, Qty 20+

0

35

Cub Cadet 841-020611

Starter Housing Assembly (Incl. 3)

$

$

Currently unavailable

36

Cub Cadet 753-06281

Clutch Assembly

$22.99

$

In Stock, only 3 left!

0

37

Cub Cadet 753-05263

Clutch Cover (Incl. 2)

$27.99

$

In Stock, only 1 left!

0

38

Cub Cadet 753-04466

Anti-Rotation Screw

$

$

Not available

39

Cub Cadet 753-04003

Clamp Screw
(Superseded to 9689A)

$11.99

$

In Stock, only 1 left!

0

40

Cub Cadet 712-0161

Nut

$4.49

$

In Stock, only 1 left!

0

41

Cub Cadet 791-181025

Rocker Cover Screw

$2.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 750-04434

Spacer

$6.99

$

In Stock, only 4 left!

0

43

Cub Cadet 753-06674

Shortblock Assembly

Note: (Incl. 3-9, 11, 14, 18 & 41)

$95.99

$

In Stock, only 3 left!

0
