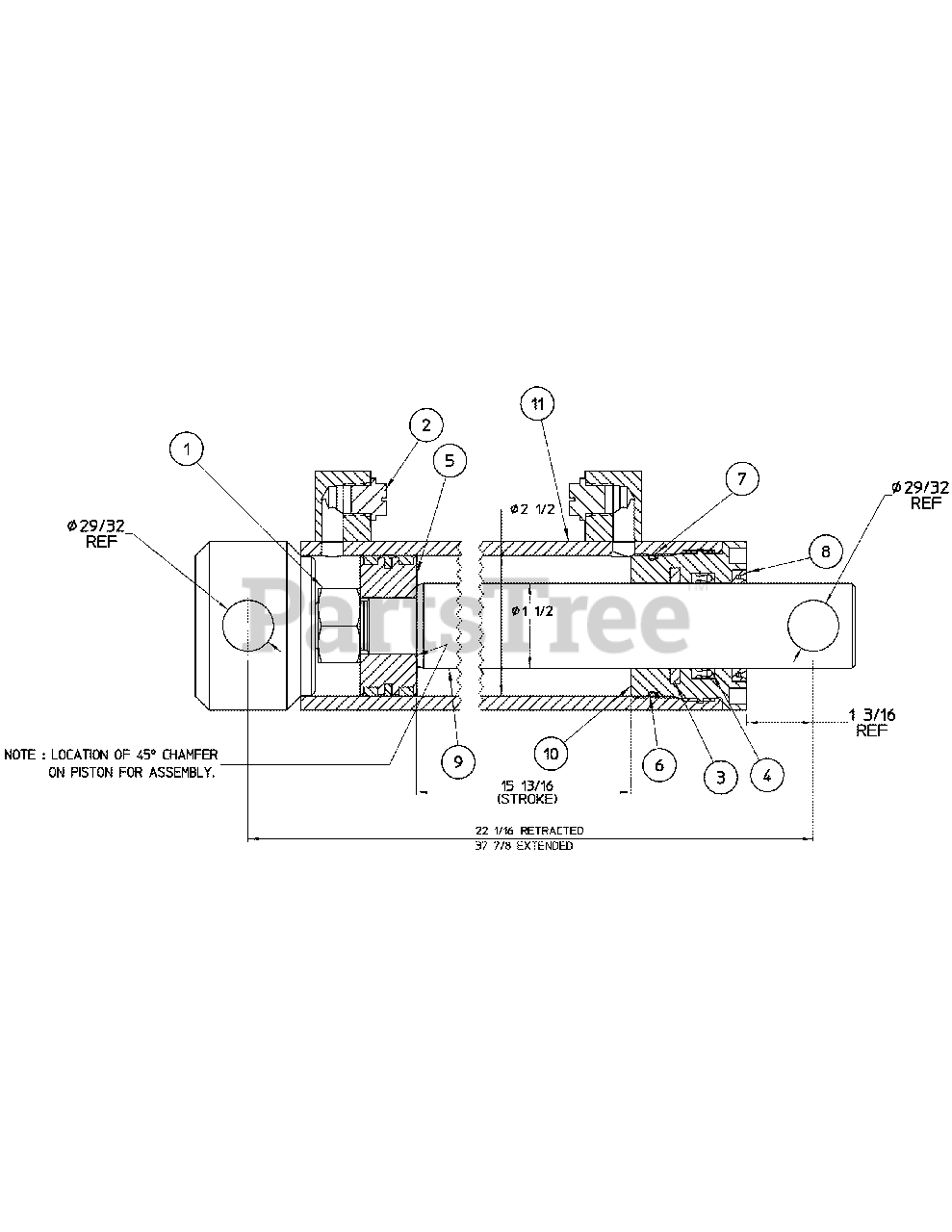

CB 85 (59A40054727) - Cub Cadet Yanmar Tractor Curved Boom Backhoe Attachment Stabilizer Cylinder Parts Diagram

Tractor Curved Boom Backhoe Attachment

Stabilizer Cylinder Parts Diagram

  • Title

1

Cub Cadet YS-007609

Nut, 7/8" Lock

$

$

Not available

2

Cub Cadet N/A

Plug

$

$

Currently unavailable

3

Cub Cadet N/A

Step Seal

Note: Order Either Seal Repair Kit Below

$

$

Currently unavailable

4

Cub Cadet N/A

Rod Seal

Note: Order Either Seal Repair Kit Below

$

$

Currently unavailable

5

Cub Cadet N/A

Piston

Note: Order YS-908365, Repair Kit with Piston

$

$

Currently unavailable

6

Cub Cadet N/A

O-Ring, 2-9/16" OD x 2-3/8" ID

Note: Order Either Seal Repair Kit Below

$

$

Currently unavailable

7

Cub Cadet N/A

Back-Up Ring, 2.565" OD x 2.393" ID

Note: Order Either Seal Repair Kit Below

$

$

Currently unavailable

8

Cub Cadet N/A

Rod Wiper

Note: Order Either Seal Repair Kit Below

$

$

Currently unavailable

9

Cub Cadet YS-908061

Piston Rod

$

$

Currently unavailable

10

Cub Cadet YS-908355

Gland with O-rings, Back-Up, etc.

$

$

Currently unavailable

11

Cub Cadet N/A

Cylinder Tube Weldment

Note: Order Complete Cylinder

$

$

Currently unavailable

Cub Cadet YS-908360

Seal Repair Kit (Without Piston)

Note: Not shown

$

$

Currently unavailable

Cub Cadet YS-908365

Seal Repair Kit (With Piston)

Note: Not shown

$

$

Currently unavailable

Cub Cadet YS-000248

For Complete Hydraulic Cylinder, order

Note: Not shown

$

$

Not available
