CB 85 (59A40054727) - Cub Cadet Yanmar Tractor Curved Boom Backhoe Attachment Control Valve Parts Diagram

Tractor Curved Boom Backhoe Attachment

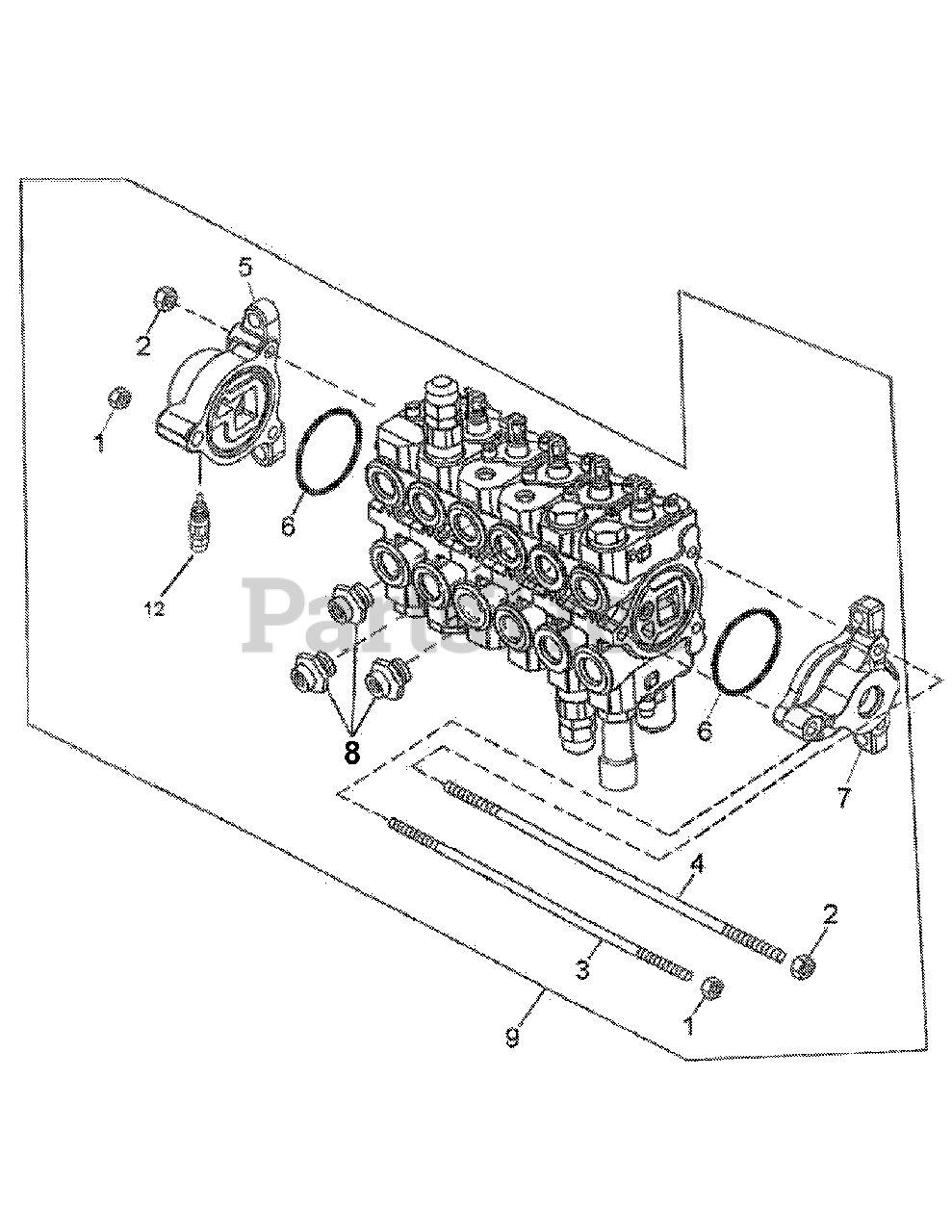

Control Valve Parts Diagram

  • Title

1

Cub Cadet N/A

Nut, 3/8

Note: Order Ref No. 10

$

$

Currently unavailable

2

Cub Cadet N/A

Nut, 5/16"

Note: Order Ref No. 10

$

$

Currently unavailable

3

Cub Cadet N/A

Tie Rod

Note: Order Ref No. 10

$

$

Currently unavailable

4

Cub Cadet N/A

Tie Rod

Note: Order Ref No. 10

$

$

Currently unavailable

5

Cub Cadet YS-023157

Outlet Cover

$

$

Currently unavailable

6

Cub Cadet N/A

O-Ring, Section Seal

Note: Order REf No. 11

$

$

Currently unavailable

7

Cub Cadet YS-023150

Inlet Cover with O-Ring

$

$

Not available

8

Cub Cadet YS-023148

Restrictor Assembly - .073" Diameter

$

$

Currently unavailable

9

Cub Cadet YS-023283

Control Valve Assembly

$

$

Not available

10

Cub Cadet YS-023146

Tie Rod Kit

Note: (Contains Ref No. 1(x2), 4(x2), 3(x1), 2(x4))

$

$

Not available

11

Cub Cadet YS-023239

Valve Seal Kit

Note: (Contains all O-Rings & Back-Up Rings for a six spool valve)

$

$

Not available

12

Cub Cadet YS-023173

Main Relief - 2550 PSI

$

$

Currently unavailable

13

Cub Cadet YS-023144

Main Relief Spring and Seal Kit

$

$

Not available

14

Cub Cadet YS-023145

Main Relief Seal Kit

$

$

Not available
