CB 85 (59A40054727) - Cub Cadet Yanmar Tractor Curved Boom Backhoe Attachment Bucket Cylinder Parts Diagram

Tractor Curved Boom Backhoe Attachment

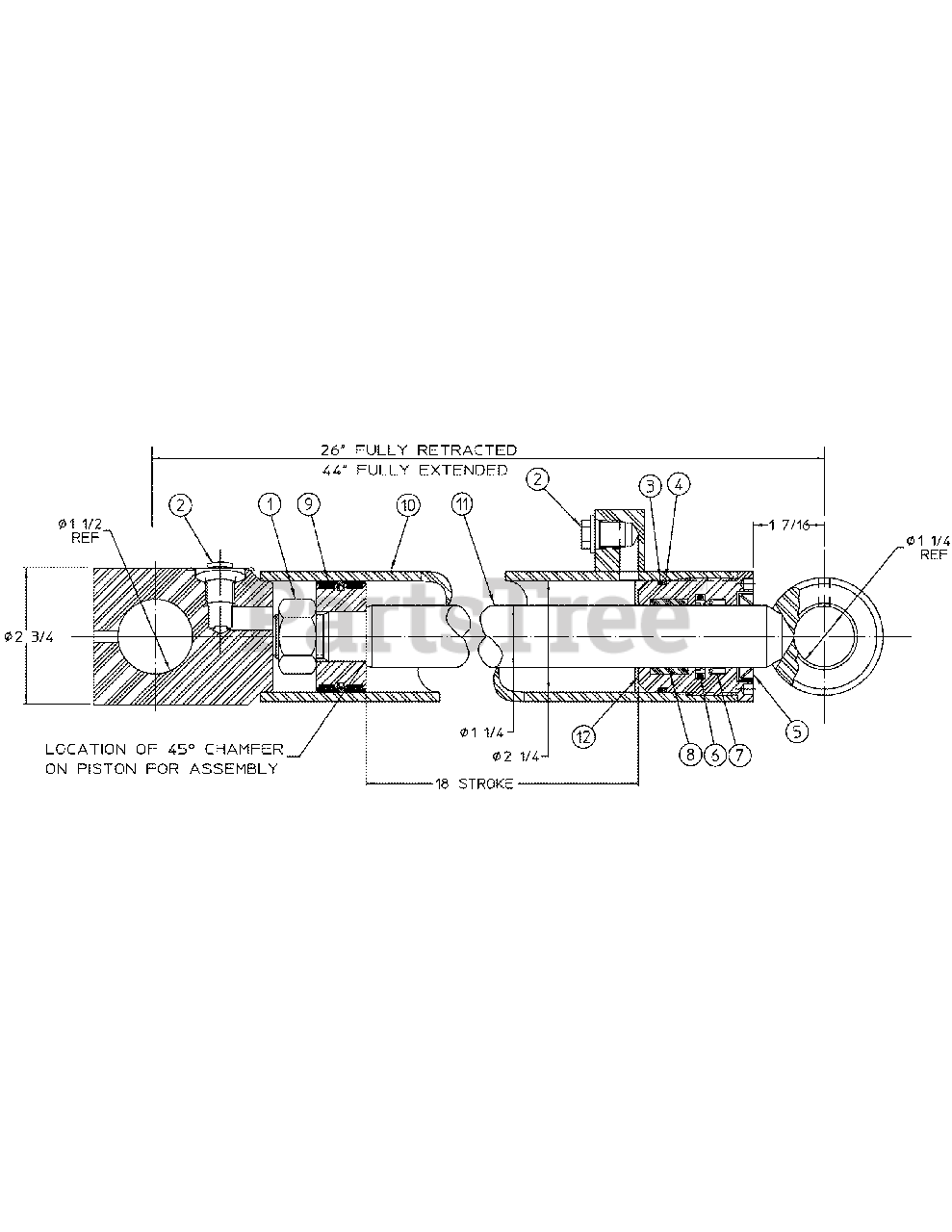

Bucket Cylinder Parts Diagram

  • Title

1

Cub Cadet YS-007609

Nut, 7/8" NF Lock

$

$

Not available

2

Cub Cadet N/A

Plug

$

$

Currently unavailable

3

Cub Cadet N/A

O-Ring, 2-1/4" OD x 2-1/16" ID

Note: Order Either Seal Repair Kit Below

$

$

Currently unavailable

4

Cub Cadet N/A

Back-Up Ring, 2.253" OD x 2.081 ID

Note: Order Either Seal Repair Kit Below

$

$

Currently unavailable

5

Cub Cadet N/A

Rod Wiper

Note: Order Either Seal Repair Kit Below

$

$

Currently unavailable

6

Cub Cadet N/A

Step Seal

Note: Order Either Seal Repair Kit Below

$

$

Currently unavailable

7

Cub Cadet N/A

Rod Seal

Note: Order Either Seal Repair Kit Below

$

$

Currently unavailable

8

Cub Cadet N/A

Wear Ring

Note: Order Either Seal Repair Kit Below

$

$

Currently unavailable

9

Cub Cadet N/A

Piston Assembly

Note: Order YS-904985, Repair Kit with Piston

$

$

Currently unavailable

10

Cub Cadet N/A

Cylinder Tube Weldment

Note: Order Complete Cylinder

$

$

Currently unavailable

11

Cub Cadet YS-904945

Piston Rod Weldment

$

$

Currently unavailable

12

Cub Cadet YS-904980

Gland with O-Rings, Back-Up, etc.

$

$

Currently unavailable

Cub Cadet YS-904955

Seal Repair Kit (Without Piston)

Note: Not shown

$

$

Currently unavailable

Cub Cadet YS-904985

Seal Repair Kit (With Piston)

Note: Not shown

$

$

Currently unavailable

Cub Cadet YS-000183

For Complete Hydraulic Cylinder, order

Note: Not shown

$

$

Not available
