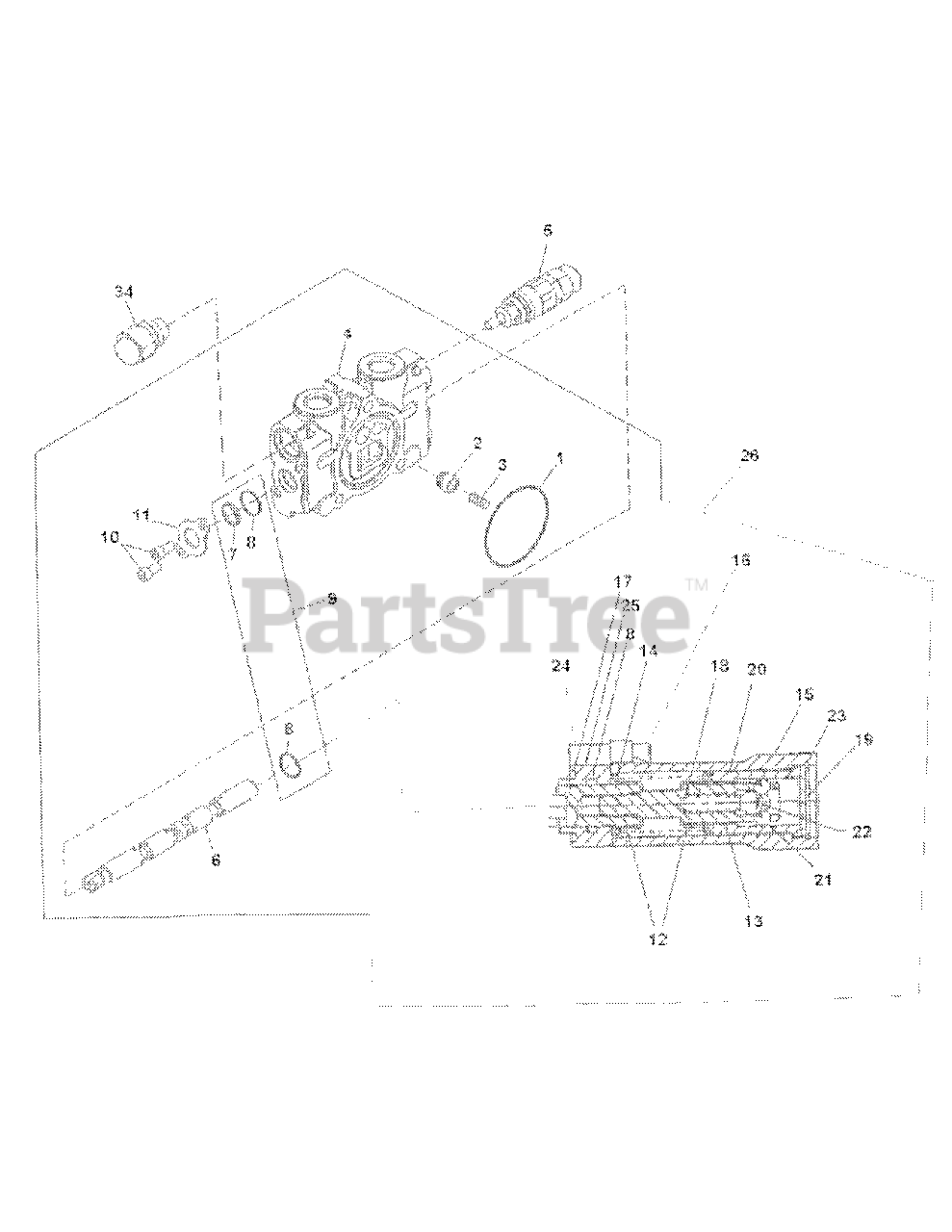

CB 85 (59A40054727) - Cub Cadet Yanmar Tractor Curved Boom Backhoe Attachment Boom Section With Non-Detented Float Parts Diagram

Tractor Curved Boom Backhoe Attachment

Boom Section With Non-Detented Float Parts Diagram

  • Title

1

Cub Cadet N/A

O-Ring

$

$

Currently unavailable

2

Cub Cadet N/A

Poppet, Load Check

$

$

Currently unavailable

3

Cub Cadet N/A

Spring, Load Check

$

$

Currently unavailable

4

Cub Cadet N/A

Valve Section

$

$

Currently unavailable

5

Cub Cadet YS-023154

Relief, Work Port 2800 psi

$

$

Currently unavailable

6

Cub Cadet N/A

Spool

$

$

Currently unavailable

7

Cub Cadet N/A

Wiper, Spool

$

$

Currently unavailable

8

Cub Cadet N/A

O-Ring, Spool

$

$

Currently unavailable

9

Cub Cadet N/A

Seal Kit, Minor (contains two of Item 7 & 8)

Note: Order Seal Kit, Major

$

$

Currently unavailable

10

Cub Cadet N/A

Cap Screws, Socket Head

$

$

Currently unavailable

11

Cub Cadet N/A

Plate, Retainer

$

$

Currently unavailable

12

Cub Cadet N/A

Seat, Spring

$

$

Currently unavailable

13

Cub Cadet N/A

Screw, Spring Seat

$

$

Currently unavailable

14

Cub Cadet N/A

Spring, Spool Centering

$

$

Currently unavailable

15

Cub Cadet N/A

Cap, Spring Spool

$

$

Currently unavailable

16

Cub Cadet N/A

Cap Screws, Socket Head

$

$

Currently unavailable

17

Cub Cadet N/A

O-Ring

$

$

Currently unavailable

18

Cub Cadet N/A

Spring, Detent

$

$

Currently unavailable

19

Cub Cadet N/A

Spacer, Cap

$

$

Currently unavailable

20

Cub Cadet N/A

Sleeve, Non-Detent

$

$

Currently unavailable

21

Cub Cadet N/A

Ball

$

$

Currently unavailable

22

Cub Cadet N/A

Ball

$

$

Currently unavailable

23

Cub Cadet N/A

Ring, Retaining

$

$

Currently unavailable

24

Cub Cadet N/A

Spacer, Cap Screw

$

$

Currently unavailable

25

Cub Cadet N/A

Spacer

$

$

Currently unavailable

26

Cub Cadet YS-023234

Valve Section Assembly (less Item 5 & 34)

$

$

Not available

27

Cub Cadet YS-023156

Seal Kit, Major

Note: Contains Ref No. 1(x1) & 7(x2),8(x2)

$

$

Not available

28

Cub Cadet YS-023149

Load Check Poppet Kit

Note: Contains Ref No. 2(x1) & 3(x1)

$

$

Not available

29

Cub Cadet YS-023240

Spring Centered Spool Positioner Kit

Note: Contains Ref No. 8(x1),12(x1),13(x1),14(x1),15(x1),16(x1),17(x1),18(x1),19(x1), 20(x1),21(x1),22(x1),23(x1),25(x1) & 12(x2),16(x2),24(x2)

$

$

Not available

31

Cub Cadet YS-023145

Seal Kit, Work Port Relief

$

$

Not available

33

Cub Cadet YS-023148

Restrictor Assembly - .073" Diameter

$

$

Currently unavailable

34

Cub Cadet YS-023147

Plug, Shut Off

$

$

Not available
