CB 75 (59A40006727) - Cub Cadet Yanmar Tractor Curved Boom Backhoe Attachment SWING VALVE Parts Diagram

Tractor Curved Boom Backhoe Attachment

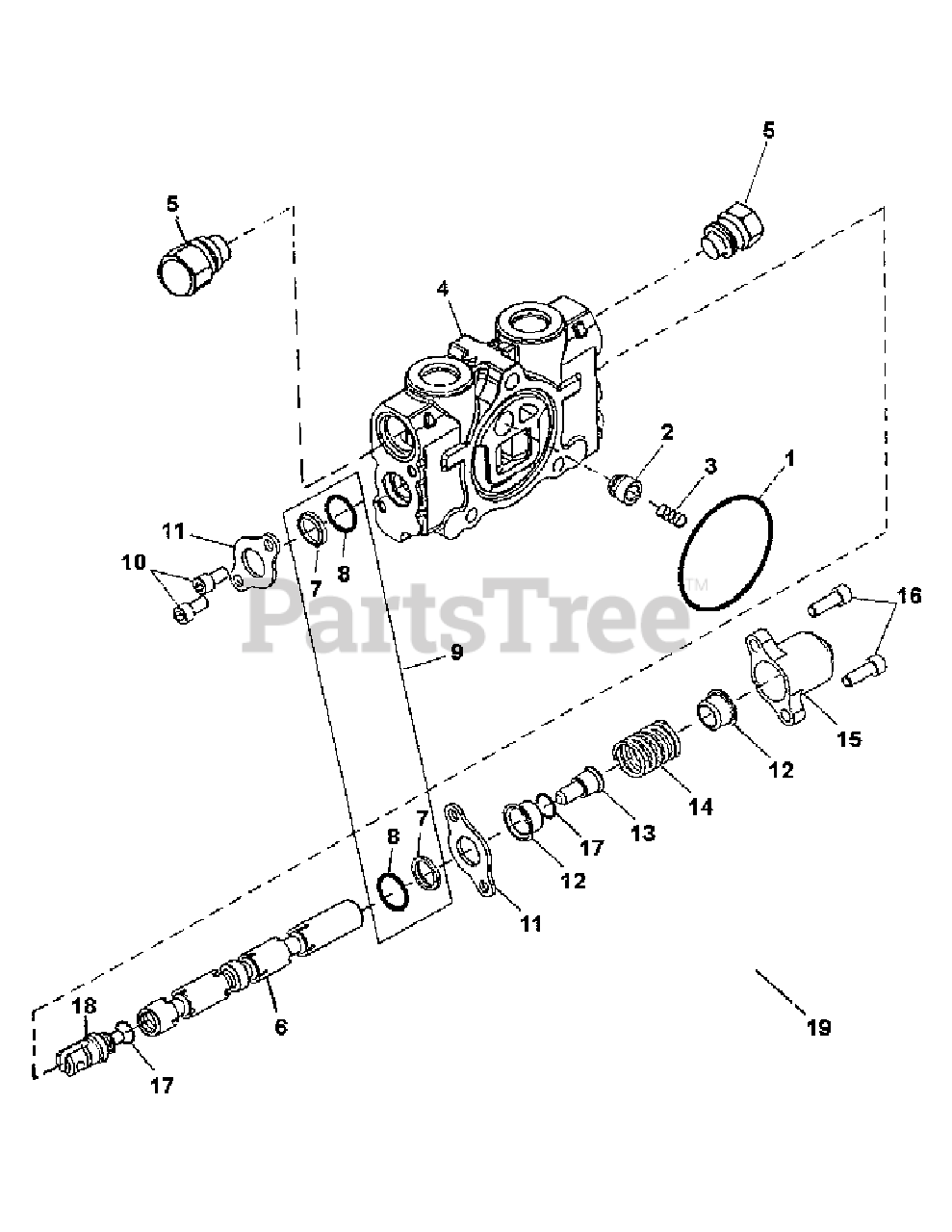

SWING VALVE Parts Diagram

  • Title

1

Cub Cadet N/A

O-RING

$

$

Currently unavailable

2

Cub Cadet N/A

POPPET, LOAD CHECK

$

$

Currently unavailable

3

Cub Cadet N/A

SPRING, LOAD CHECK

$

$

Currently unavailable

4

Cub Cadet N/A

VALVE SECTION

$

$

Currently unavailable

5

Cub Cadet YS-023147

PLUG, SHUT OFF

$

$

Not available

6

Cub Cadet N/A

SPOOL

$

$

Currently unavailable

7

Cub Cadet N/A

WIPER, SPOOL

$

$

Currently unavailable

8

Cub Cadet N/A

O-RING SPOOL

$

$

Currently unavailable

9

Cub Cadet YS-023156

SEAL KIT, MINOR

Note: furnish major seal kit

$

$

Not available

10

Cub Cadet N/A

CAP SCREWS, SOCKET HEAD

$

$

Currently unavailable

11

Cub Cadet N/A

PLATE, RETAINER

$

$

Currently unavailable

12

Cub Cadet N/A

SEAT, SPRING

$

$

Currently unavailable

13

Cub Cadet N/A

SCREW, SPRING SEAT

$

$

Currently unavailable

14

Cub Cadet N/A

SPRING, SPOOL CENTERING

$

$

Currently unavailable

15

Cub Cadet N/A

CAP, SPRING SPOOL

$

$

Currently unavailable

16

Cub Cadet N/A

CAP SCREWS, SOCKET HEAD

$

$

Currently unavailable

17

Cub Cadet N/A

O-RING

$

$

Currently unavailable

18

Cub Cadet YS-023165

CLEVIS END

$

$

Not available

19

Cub Cadet YS-023170

VALVE SECTION ASSEMBLY

Note: (less item 5)

$

$

Not available

Cub Cadet YS-023156

SEAL KIT, MAJOR

Note: (Contains one of item 1 and two of item 7&8), not shown

$

$

Not available

Cub Cadet YS-023149

LOAD CHECK POPPET KIT

Note: (Contains one of items 2 & 3), not shown

$

$

Not available

Cub Cadet YS-023142

SPRING CENTERED SPOOL POSITIONER KIT

Note: (Contains one of items 7,8,11,13,14,15&18 and two of items 12,16&17), not shown

$

$

Not available
