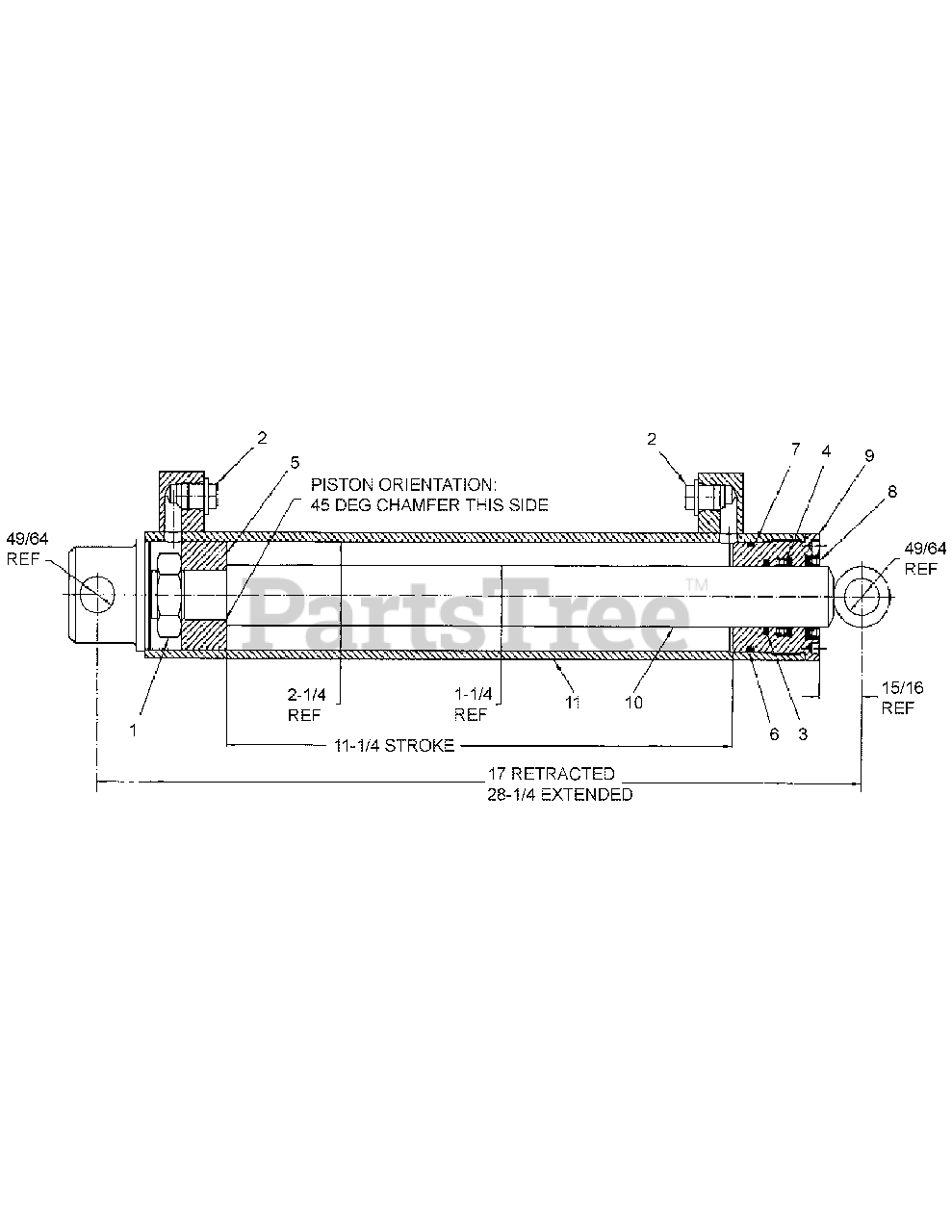

CB 75 (59A40006727) - Cub Cadet Yanmar Tractor Curved Boom Backhoe Attachment STABILIZER CYLINDER Parts Diagram

Tractor Curved Boom Backhoe Attachment

STABILIZER CYLINDER Parts Diagram

  • Title
1

Cub Cadet AQ-007712

NUT, 1'' NFJAM LOCK

$

$

Not available

2

$

$

Currently unavailable

3

Cub Cadet N/A

STEP SEAL

Note: included in kit

$

$

Currently unavailable

4

Cub Cadet N/A

U-CUP SEAL

Note: included in kit

$

$

Currently unavailable

$

$

Currently unavailable

6

Cub Cadet N/A

O-RING

Note: included in kit

$

$

Currently unavailable

7

Cub Cadet N/A

BACK-UP RING

Note: included in kit

$

$

Currently unavailable

8

Cub Cadet N/A

ROD WIPER

Note: included in kit

$

$

Currently unavailable

9

Cub Cadet AQ-902584

THREADED GLAND

$

$

Not available

10

Cub Cadet AQ-902585

PISTON ROD WELDMENT

$

$

Not available

11

Cub Cadet AQ-902590

CYLINDER TUBE WELDMENT

$

$

Currently unavailable

Cub Cadet AQ-902583

SEAL REPAIR KIT less Piston

$

$

Not available

Cub Cadet AQ-902582

SEAL REPAIR KIT with Piston

$

$

Not available

Cub Cadet AQ-000242

COMPLETE HYDRAULIC CYLINDER

$

$

Not available
