CB 75 (59A40006727) - Cub Cadet Yanmar Tractor Curved Boom Backhoe Attachment HOSE CLAMPS Parts Diagram

Tractor Curved Boom Backhoe Attachment

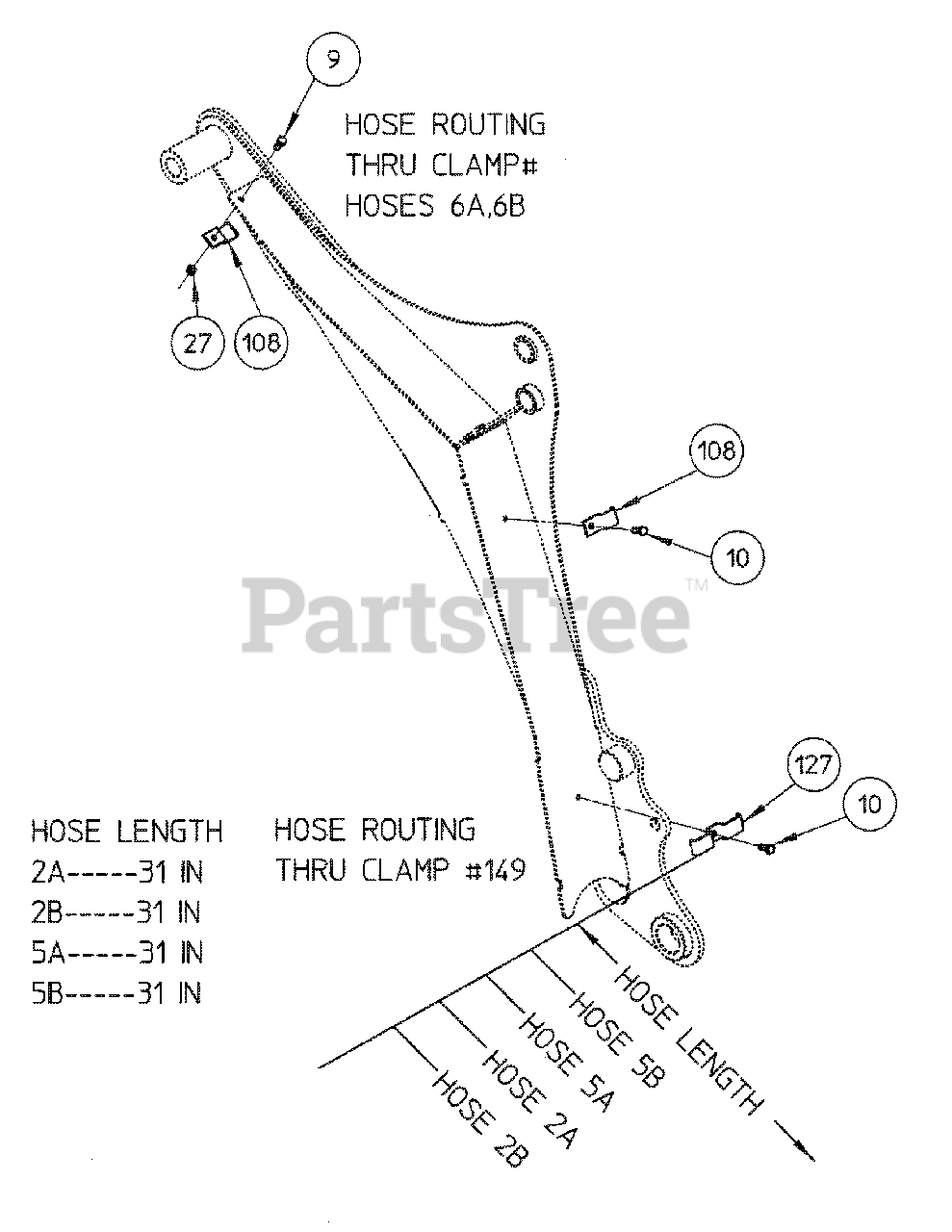

HOSE CLAMPS Parts Diagram

  • Title

1

Cub Cadet YS-000187

Hydraulic Cylinder - Swing

$

$

Not available

2

Cub Cadet YS-000188

Hydraulic Cylinder - Bucket

$

$

Not available

3

Cub Cadet YS-000242

Hydraulic Cylinder - Stabilizer

$

$

Not available

4

Cub Cadet YS-000240

Hydraulic Cylinder - Boom

$

$

Not available

5

Cub Cadet YS-000241

Hydraulic Cylinder - Dipper

$

$

Not available

6

Cub Cadet YS-006574

Bolt, Carriage 5/16 NC x 3/4"

$

$

Not available

7

Cub Cadet YS-006580

Bolt, Carriage 5/16 NC x 1-1/4"

$

$

Not available

8

Cub Cadet YS-006740

Bolt, 1/4 NC x 3/4"

$

$

Not available

9

Cub Cadet YS-006787

Bolt, 5/16 NC x 3/4"

$

$

Not available

10

Cub Cadet YS-006788

Bolt, 5/16 NC x 3/4" Thread Forming

$

$

Not available

11

Cub Cadet YS-006789

Bolt, 5/16 NF x 3/4"

$

$

Not available

12

Cub Cadet YS-006790

Bolt, 5/16 NF x 7/8"

$

$

Not available

13

Cub Cadet YS-006795

Bolt, 5/16 NF x 1" Gr. 5

$

$

Not available

14

Cub Cadet YS-006808

Bolt, 5/16 NF x 2-1/4" Gr. 5

$

$

Not available

15

Cub Cadet YS-006817

Bolt, 5/16 NF x 2-1/2" Gr.5

$

$

Not available

16

Cub Cadet YS-006823

Bolt, 5/16 NF x 4" Gr. 8

$

$

Not available

17

Cub Cadet YS-006830

Bolt, 3/8 NF x 3/4"

$

$

Not available

18

Cub Cadet YS-006851

Bolt, 3/8 NF x 1"

$

$

Not available

19

Cub Cadet YS-006859

Bolt, 3/8 NF x 1-1/4"

$

$

Not available

20

Cub Cadet YS-006870

Bolt, 3/8 NF x 1-3/4"

$

$

Not available

21

Cub Cadet YS-006878

Bolt, 3/8 NF x 2-1/4"

$

$

Not available

22

Cub Cadet YS-006887

Bolt, 3/8 NF x 2-3/4"

$

$

Not available

23

Cub Cadet YS-006906

Bolt, 3/8 NC x 5-1/2" Long Gr.5

$

$

Not available

24

Cub Cadet YS-007005

Bolt, 1/2 NF x 7/8"

$

$

Not available

25

Cub Cadet YS-007401

Nut, 1/4 NC

$

$

Not available

26

Cub Cadet YS-007431

Nut, 5/16NC

$

$

Not available

27

Cub Cadet YS-007433

Locknut, 5/16 NC

$

$

Not available

28

Cub Cadet YS-007436

Nut, 5/16 NF

$

$

Not available

29

Cub Cadet YS-007437

Locknut, 5/16 NF

$

$

Not available

30

Cub Cadet YS-007458

Lock Nut, 3/8NC

$

$

Not available

31

Cub Cadet YS-007466

Locknut, 3/8 NF

$

$

Not available

32

Cub Cadet YS-008061

Lockwasher, 1/4

$

$

Not available

33

Cub Cadet YS-008071

Lockwasher, 5/16

$

$

Not available

34

Cub Cadet YS-008151

Flat Washer. 5/16 STD

$

$

Not available

35

Cub Cadet YS-008152

Washer, 5/16 SAE

$

$

Not available

36

Cub Cadet YS-008158

Flat Washer, 3/8 SAE

$

$

Not available

37

Cub Cadet YS-008164

Flat Washer, 1/2" Hardened

$

$

Not available

38

Cub Cadet YS-008272

Machine Bushing, 1-1/4 OD x 3/4 ID x 14Ga.

$

$

Not available

39

Cub Cadet YS-008283

Machine Bushing 1-1/2" OD x 1" ID x 18Ga.

$

$

Not available

40

Cub Cadet YS-008290

Machine Bushing 1-7/8" OD x 1-1/4" ID x 18Ga.

$

$

Not available

41

Cub Cadet YS-008304

Machine Bushing, 2-1/2 OD x 1-3/4ID x 18Ga

$

$

Not available

42

Cub Cadet YS-008554

Cotter Pin, 3/32" Dia x 3/4"

$

$

Not available

43

Cub Cadet YS-008582

Cotter Pin, 3/16 x 1-1/4"

$

$

Not available

44

Cub Cadet YS-008602

Cotter Pin, 1/4 x 1-1/2"

$

$

Not available

45

Cub Cadet YS-008617

Hair Pin Cotter, 3/64" Dia x 11/16"

$

$

Not available

46

Cub Cadet YS-009442

SMV Sign

$

$

Not available

47

Cub Cadet YS-011091

Adapter Union, 9/16-18M x 3/8NPTF

$

$

Not available

48

Cub Cadet YS-011095

Hydraulic Tee

$

$

Not available

49

Cub Cadet YS-011118

Adapter Union, 3/4-16M x 3/8NPTF x Straight

$

$

Not available

50

Cub Cadet YS-011127

Adapter Union, 3/8NPTM x 3/8NPTF x 90 degree

$

$

Not available

51

Cub Cadet YS-011140

Adapter Union, 9/16-18M x 3/8NPTF x 90 degree

$

$

Not available

52

Cub Cadet YS-011141

Adapter Union, 7/8-14M x 3/8 NPTF x 90 degree

$

$

Not available

53

Cub Cadet YS-011143

Adapter Union, 3/4-16M x 3/8NPTF x 90 degree

$

$

Not available

54

Cub Cadet YS-011274

Coupler Body 3/4-16F Thread

$

$

Not available

55

Cub Cadet YS-011275

Coupler Nose 3/4-16F Thread

$

$

Not available

56

Cub Cadet YS-011971

Garlock Bearing, 028DXR020

$

$

Not available

57

Cub Cadet YS-011973

Bronze Bearing

$

$

Not available

58

Cub Cadet YS-011978

Garlock Bearing, 028DXR016

$

$

Not available

59

Cub Cadet YS-868140

Stabilizer Pad Weldment

$

$

Not available

60

Cub Cadet YS-012531

Guide Link

$

$

Not available

61

Cub Cadet YS-012532

Bucket Link

$

$

Not available

62

Cub Cadet YS-012899

Street Pad

$

$

Not available

63

Cub Cadet YS-013430

Clevis Pin, 3/16" Dia x 5/8"

$

$

Not available

64

Cub Cadet YS-013436

Clevis Pin, 1/4" Dia x 7/8"

$

$

Not available

65

Cub Cadet YS-013473

Pin Retainer

$

$

Not available

66

Cub Cadet YS-013474

Pin Retainer

$

$

Not available

67

Cub Cadet YS-013501

Boom Lock Pin

$

$

Not available

68

Cub Cadet YS-013505

Swing Lock Pin

$

$

Not available

69

Cub Cadet YS-013683

SMV Socket

$

$

Not available

70

Cub Cadet YS-013684

SMV Bracket
(Superseded to AQ-013684)

$

$

Not available

71

Cub Cadet YS-013857

Seat

$

$

Not available

72

Cub Cadet YS-014022

Ball Joint - Shouldered

$

$

Not available

73

Cub Cadet YS-014023

Ball Joint

$

$

Not available

74

Cub Cadet YS-014058

Control Knob

$

$

Not available

75

Cub Cadet YS-014087

Rubber Cap

$

$

Not available

76

Cub Cadet YS-014128

Plastic Tie T150L

$

$

Not available

77

Cub Cadet YS-014132

Plastic Tie T120 L

$

$

Not available

78

Cub Cadet YS-014133

Plastic Tie T50L

$

$

Not available

79

Cub Cadet YS-014140

Clamp

$

$

Not available

80

Cub Cadet YS-014147

Hose Sleeve FC425-16 X 30" Long

$

$

Not available

81

Cub Cadet YS-014148

Hose Sleeve FC425-16 X 19" Long

$

$

Not available

82

Cub Cadet YS-014181

Hose Sleeve FC425-16 X 48" Long

$

$

Not available

83

Cub Cadet YS-014187

Hose Sleeve FC425-16 X 63" Long

$

$

Not available

84

Cub Cadet YS-014189

Hose Sleeve FC425-16 X 79" Long

$

$

Not available

85

Cub Cadet YS-014500

Grease Fitting

$

$

Not available

86

Cub Cadet YS-014505

Grease Fitting (Two are part of #000187 Cyl.)

$

$

Not available

87

Cub Cadet YS-014521

Grease Fitting (Two are part of #000187 Cyl.)

$

$

Not available

88

Cub Cadet YS-017015

Hydraulic Hose, 3/8NPTM x 3/8NPTM x 20" long

$

$

Not available

89

Cub Cadet YS-017017

Hydraulic Hose, 3/8NPTM x 3/8NPTM x 23" long

$

$

Not available

90

Cub Cadet YS-017047

Hydraulic Hose, 3/8NPTM x 3/8NPTM x 30" long

$

$

Not available

91

Cub Cadet YS-017072

Hydraulic Hose, 3/8NPTM x 3/8NPTM x 58" long

$

$

Not available

92

Cub Cadet YS-017114

Hydraulic Hose, 3/8NPTM x 3/8NPTM x 76" long

$

$

Not available

93

Cub Cadet YS-017180

Hydraulic Hose, 3/8NPTM x 3/8NPTM x 92" long

$

$

Not available

94

Cub Cadet YS-017211

Hydraulic Hose, 3/8NPTM x 3/8NPTM x 110" long

$

$

Not available

95

Cub Cadet YS-017436

Hyd. Hose, 3/8ID 3/8NPTF M x 3/4-16 Str O x 49"

$

$

Not available

96

Cub Cadet YS-017437

Hyd. Hose, 3/8ID 3/8NPTF M x 3/4-16 Str O x 34"

$

$

Not available

97

Cub Cadet YS-023257

Control Valve

$

$

Not available

98

Cub Cadet YS-024019

Adapter Union, 7/16-20M x 3/8NPTF

$

$

Not available

99

Cub Cadet YS-064317

Rear Shroud

$

$

Not available

100

Cub Cadet YS-066022

Stabilizer Lever Control Rods

$

$

Not available

101

Cub Cadet YS-066023

Control Rod

$

$

Not available

102

Cub Cadet YS-851118

Pivot Pin, Boom Cyl. Rod 1-1/4" Dia. x 6" Long

$

$

Not available

103

Cub Cadet YS-851136

Thrust Washer

$

$

Not available

104

Cub Cadet YS-855151

Pivot Pin, Bucket 1"Dia. x 7-3/8" Long

$

$

Not available

105

Cub Cadet YS-857921

SMV Socket Mount

$

$

Not available

106

Cub Cadet YS-859425

Stabilizer Control Lever

$

$

Not available

107

Cub Cadet YS-859429

Lever Bracket

$

$

Not available

108

Cub Cadet YS-860399

Hose Clamp - Short

$

$

Not available

109

Cub Cadet YS-860456

Pivot Pin, 3/4" Diameter x 4-1/16" Long

$

$

Not available

110

Cub Cadet YS-860458

Pivot Pin, Dipperstick 1-1/4" Dia. x 7-15/16" Long

$

$

Not available

111

Cub Cadet YS-860459

Pivot Pin, Stabilizer Leg

$

$

Not available

112

Cub Cadet YS-860460

Pivot Pin Weldment

$

$

Not available

113

Cub Cadet YS-860466

Pivot Pin, Stabilizer Pad 3/4" Dia. x 4-15/16" Long

$

$

Not available

114

Cub Cadet YS-860467

Pivot Pin, Stabilizer Cyl. Rod

$

$

Not available

115

Cub Cadet YS-860472

Pivot Pin, Bucket Cyl. Base 1" Dia. x 5-7/8" Long

$

$

Not available

116

Cub Cadet YS-860474

Pivot Pin, Boom Cyl. Base 1-1/4" Dia. x 7-1/4" Long

$

$

Not available

117

Cub Cadet YS-861680

Lower Pivot Pin Weldment

$

$

Not available

118

Cub Cadet YS-866165

Seat Plate Weldment

$

$

Not available

119

Cub Cadet YS-863175

RH Pivot Weldment

$

$

Not available

120

Cub Cadet YS-863180

LH Pivot Weldment

$

$

Not available

121

Cub Cadet YS-863184

Bushing

$

$

Not available

122

Cub Cadet YS-864010

Stabilizer Leg Weldment

$

$

Not available

123

Cub Cadet YS-864605

Upper Pivot Pin Weldment

$

$

Not available

124

Cub Cadet YS-866055

Pivot Pin Weldment, Boom 1-3/4" Dia. X 2-3/4" Lg

$

$

Not available

125

Cub Cadet YS-866096

RH Toe Shield

$

$

Not available

126

Cub Cadet YS-866097

LH Toe Shield

$

$

Not available

127

Cub Cadet YS-866104

Hose Clamp - Long

$

$

Not available

128

Cub Cadet YS-868025

Grab Bar Weldment

$

$

Not available

129

Cub Cadet YS-868055

Mainframe Weldment

$

$

Not available

130

Cub Cadet YS-868070

Valve Mount Weldment

$

$

Not available

131

Cub Cadet YS-868075

Swing Frame Weldment

$

$

Not available

132

Cub Cadet YS-868110

Front Shroud Weldment with Decals

$

$

Not available

133

Cub Cadet YS-868090

Dipperstick Weldment

$

$

Not available

134

Cub Cadet YS-868095

Boom Weldment

$

$

Not available

135

Cub Cadet YS-868115

Right Hand Joystick Weldment

$

$

Not available

136

Cub Cadet YS-868120

Left Hand Joystick Weldment

$

$

Not available
