CB 75 (59A40006727) - Cub Cadet Yanmar Tractor Curved Boom Backhoe Attachment GENERAL VALVE Parts Diagram

Tractor Curved Boom Backhoe Attachment

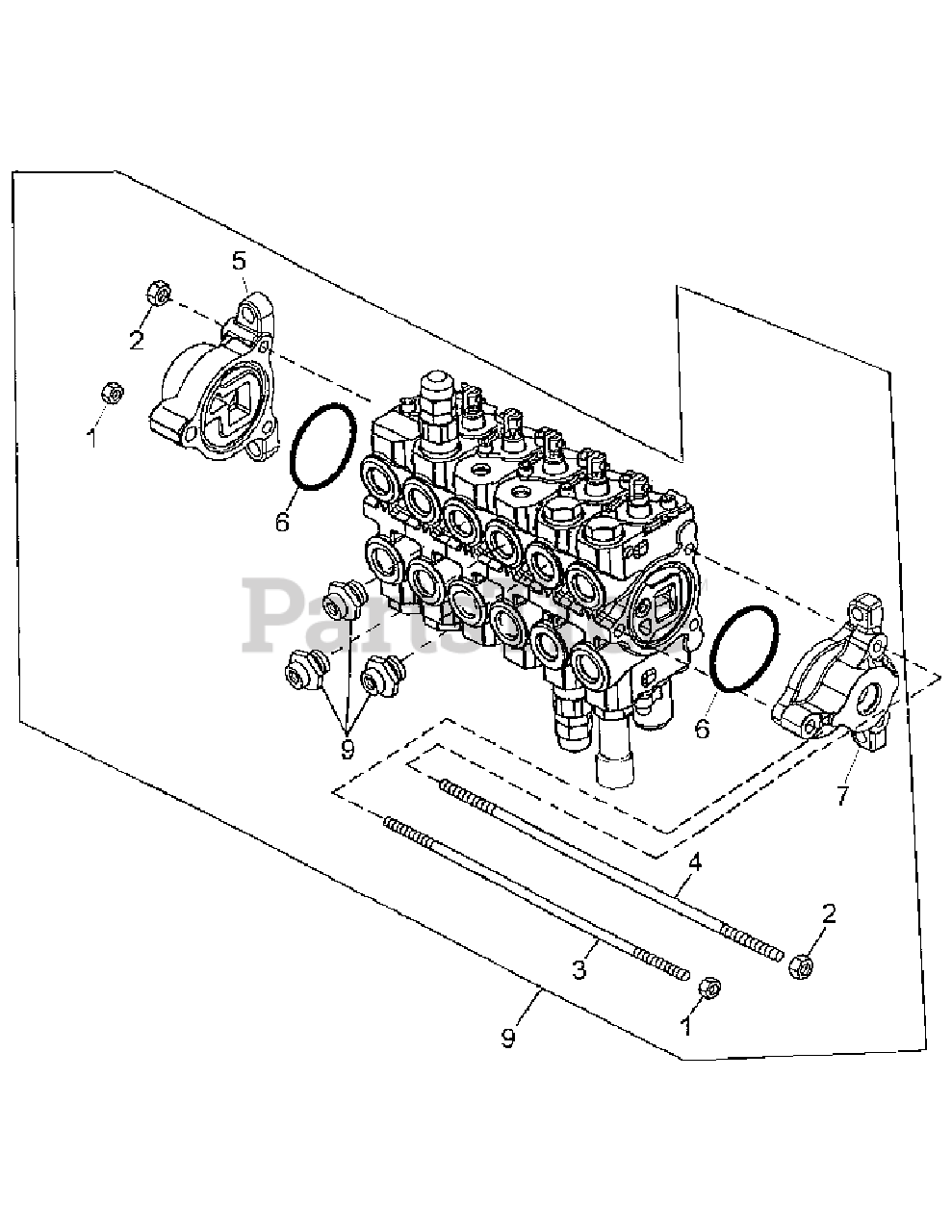

GENERAL VALVE Parts Diagram

  • Title

1

Cub Cadet N/A

NUT, 3/8

$

$

Currently unavailable

2

Cub Cadet N/A

NUT, 5/16

$

$

Currently unavailable

3

Cub Cadet N/A

TIE ROD

$

$

Currently unavailable

4

Cub Cadet N/A

TIE ROD

$

$

Currently unavailable

5

Cub Cadet YS-023265

OUTLET COVER

$

$

Not available

6

Cub Cadet N/A

O-RING, SELECTION SEAL

$

$

Currently unavailable

7

Cub Cadet YS-023150

INLET COVER WITH O-RING

$

$

Not available

8

Cub Cadet YS-023167

RESTRICTOR ASSEMBLY-.064'' DIA

$

$

Not available

9

Cub Cadet YS-023257

CONTROL VALVE ASSEMBLY

$

$

Not available

Cub Cadet YS-023146

TIE ROD KIT

Note: (Contains two of items 1 & 4, one of item 3 and four of item 2), not shown

$

$

Not available

Cub Cadet YS-023239

VALVE SEAL KIT

Note: (Contains all O-Rings and Back-Up Rings for a six spool valve), not shown

$

$

Not available
