CB 75 (59A40006727) - Cub Cadet Yanmar Tractor Curved Boom Backhoe Attachment DIPPERSTICK CYLINDER Parts Diagram

Tractor Curved Boom Backhoe Attachment

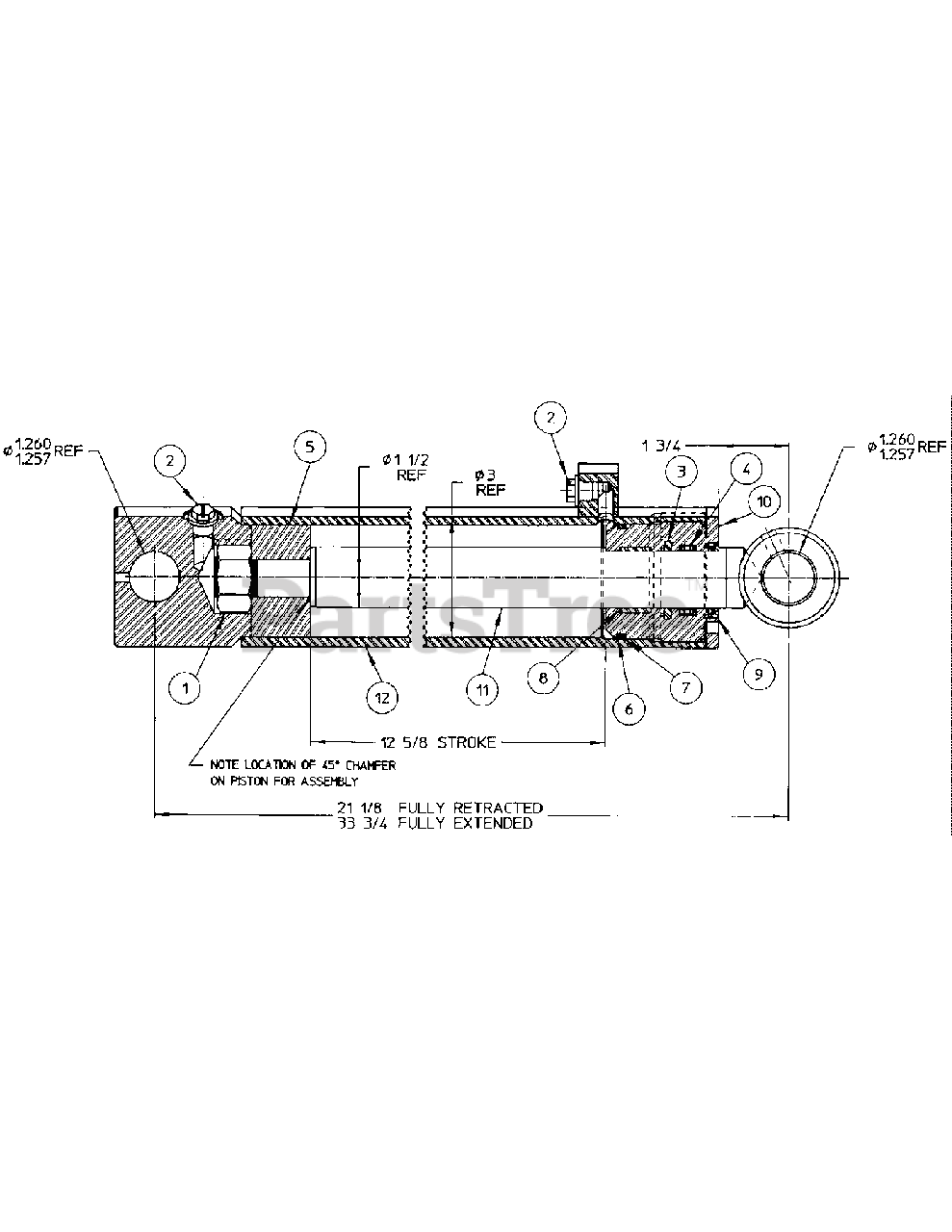

DIPPERSTICK CYLINDER Parts Diagram

  • Title

1

Cub Cadet YS-007616

NUT, 1'' NF LOCK

$

$

Not available

2

Cub Cadet N/A

PLUG

Note: (Included in Seal Repair Kit)

$

$

Currently unavailable

3

Cub Cadet N/A

STEP SEAL

Note: (Included in Seal Repair Kit)

$

$

Currently unavailable

4

Cub Cadet N/A

ROD SEAL

Note: (Included in Seal Repair Kit)

$

$

Currently unavailable

5

Cub Cadet YS-906275

PISTON

$

$

Not available

6

Cub Cadet N/A

O-RING, 3''OD X 2-3/4'' ID

Note: (Included in Seal Repair Kit)

$

$

Currently unavailable

7

Cub Cadet N/A

BACK-UP RING

Note: (Included in Seal Repair Kit)

$

$

Currently unavailable

8

Cub Cadet N/A

WEAR RING

Note: (Included in Seal Repair Kit)

$

$

Currently unavailable

9

Cub Cadet N/A

ROD WIPER

Note: (Included in Seal Repair Kit)

$

$

Currently unavailable

10

Cub Cadet YS-906265

GLAND WITH O-RINGS, BACK-UP, ETC

$

$

Not available

11

Cub Cadet YS-906300

PISTON ROD WELDMENT

$

$

Not available

12

Cub Cadet YS-000241

CYLINDER TUBE WELDMENT

Note: furnish complete cylinder

$

$

Not available

Cub Cadet YS-906270

SEAL REPAIR KIT(INCLUDES ITEMS 3,4,6-9)

$

$

Not available

Cub Cadet YS-906275

SEAL REPAIR KIT(INCLUDES ITEMS 3-9)

$

$

Not available

Cub Cadet YS-000241

COMPLETE HYDRAULIC CYLINDER

$

$

Not available
