CB 75 (59A40006727) - Cub Cadet Yanmar Tractor Curved Boom Backhoe Attachment BOOM CYLINDER Parts Diagram

Tractor Curved Boom Backhoe Attachment

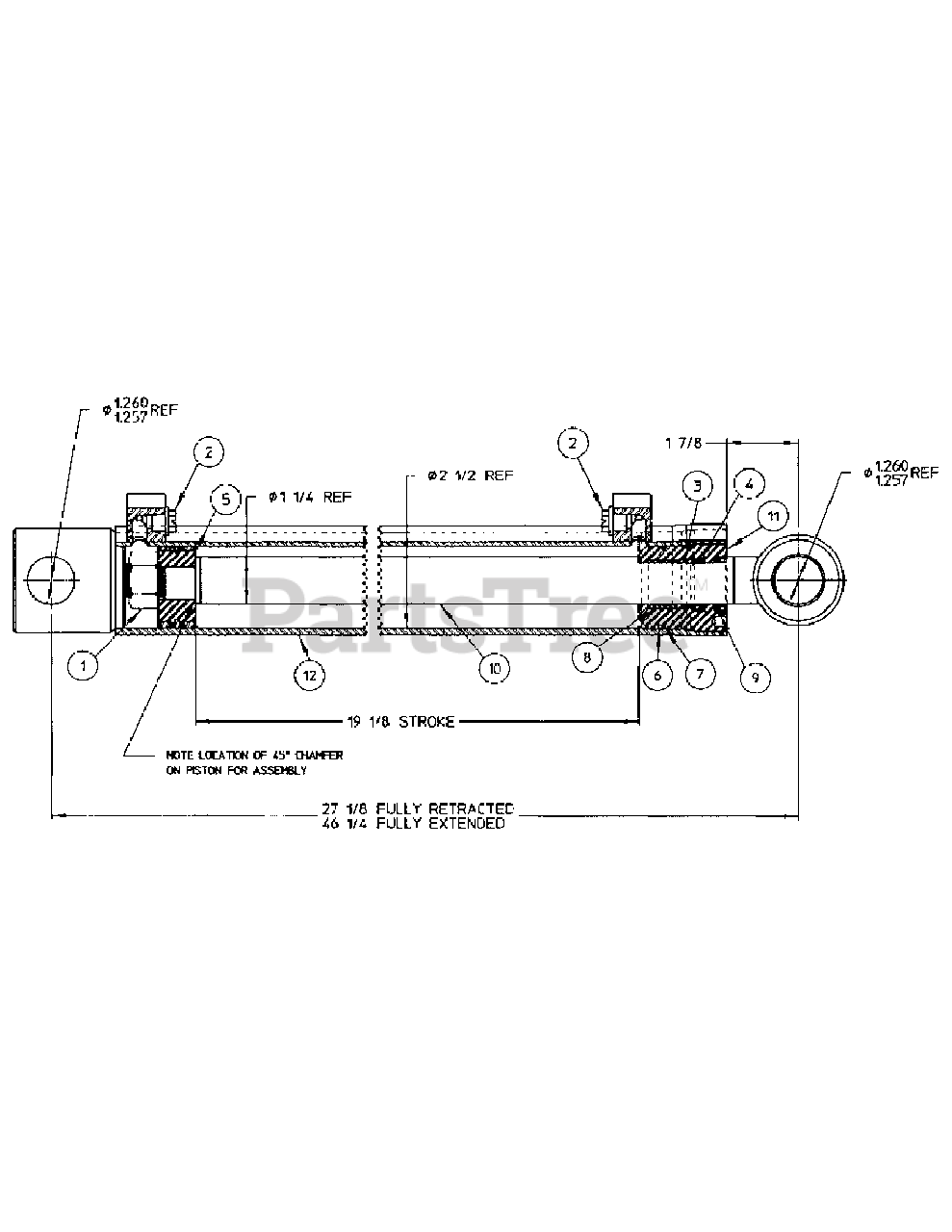

BOOM CYLINDER Parts Diagram

  • Title

1

Cub Cadet YS-007609

NUT, 7/8 NF LOCK

$

$

Not available

2

Cub Cadet N/A

PLUG

$

$

Currently unavailable

3

Cub Cadet N/A

O-RING, 2-9/16''OD X 2-3/8''ID

Note: (Included in Seal Repair Kit)

$

$

Currently unavailable

4

Cub Cadet N/A

BACK-UP RING, 2.565''OD X 2.393'' ID

Note: (Included in Seal Repair Kit)

$

$

Currently unavailable

5

Cub Cadet YS-908115

PISTON

$

$

Not available

6

Cub Cadet N/A

STEP SEAL

Note: (Included in Seal Repair Kit)

$

$

Currently unavailable

7

Cub Cadet N/A

ROD SEAL

Note: (Included in Seal Repair Kit)

$

$

Currently unavailable

8

Cub Cadet N/A

WEAR RING

Note: (Included in Seal Repair Kit)

$

$

Currently unavailable

9

Cub Cadet N/A

ROD WIPER

Note: (Included in Seal Repair Kit)

$

$

Currently unavailable

10

Cub Cadet YS-905645

PISTON ROD WELDMENT

$

$

Not available

11

Cub Cadet YS-908110

GLAND WITH O-RINGS , BACK-UP, ETC.

$

$

Not available

12

Cub Cadet YS-000240

CYLINDER TUBE WELDMENT

$

$

Not available

Cub Cadet YS-908085

SEAL REPAIR KIT(ITEMS 3-8)

$

$

Not available

Cub Cadet YS-908115

SEAL REPAIR KIT(ITEMS 3-9)

$

$

Not available

Cub Cadet YS-000240

COMPLETE HYDRAULIC CYLINDER

$

$

Not available
