CB 65 (59A40005727) - Cub Cadet Yanmar Tractor 7.5' Curved Boom Backhoe Attachment Control Tower Area Parts Diagram

Tractor 7.5' Curved Boom Backhoe Attachment

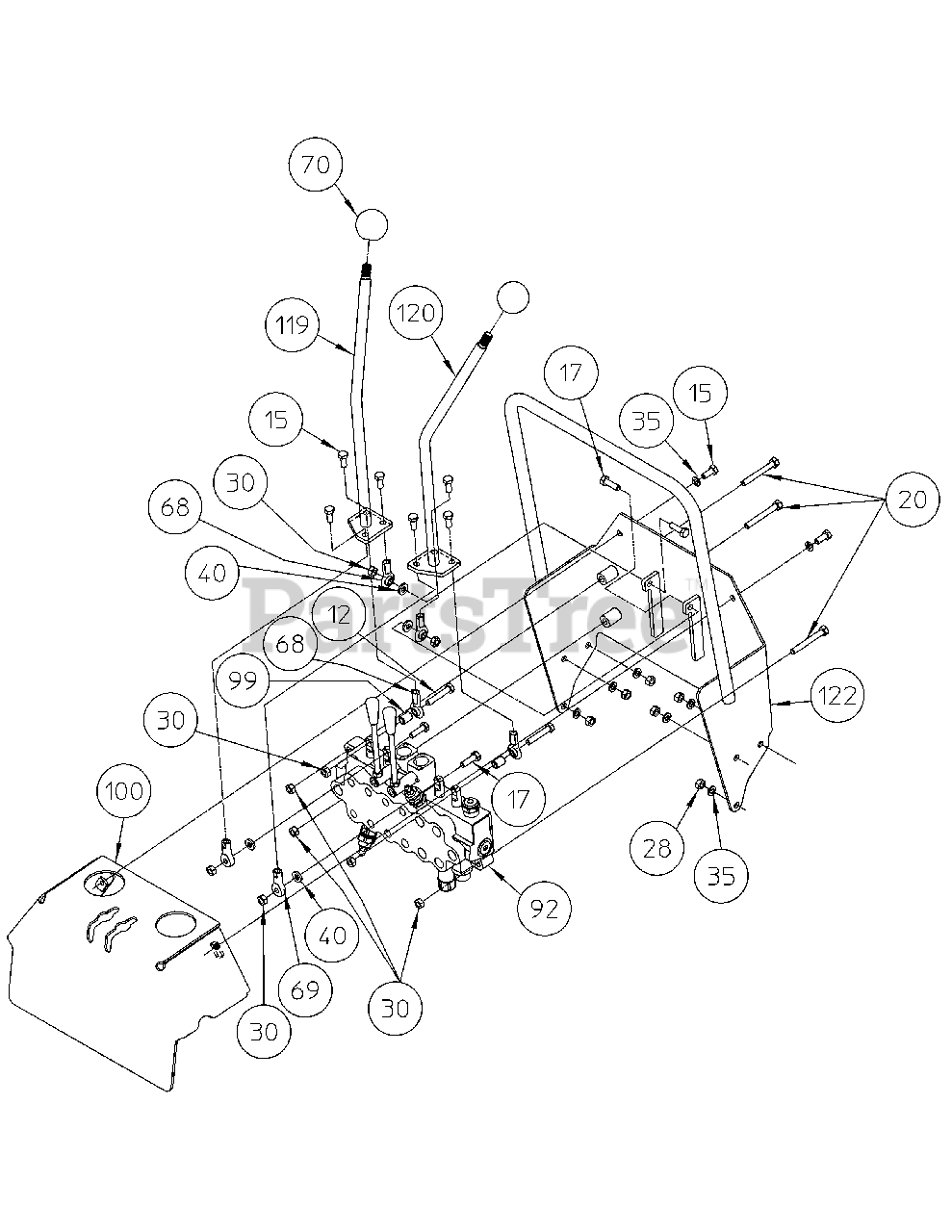

Control Tower Area Parts Diagram

  • Title

12

Cub Cadet AQ-006776

HEX HEAD CAP SCREW, 5/16-24 X 1.75 GR 5 SAE

$

$

Not available

15

Cub Cadet AQ-006789

HEX HEAD CAP SCREW, 5/16-24 X .75 GR 5 SAE

$

$

Not available

17

Cub Cadet AQ-006799

HEX HEAD CAP SCREW, 5/16-24 X 1.25 GR 5

$

$

Not available

20

Cub Cadet AQ-006817

HEX HEAD CAP SCREW, 5/16-24 X 2.50 GR 5 SAE

$

$

Not available

28

Cub Cadet AQ-007431

NUT, HEX 5/16-18 GR 5

$

$

Not available

30

Cub Cadet AQ-007437

NUT, HEX 5/16-24 LOCK

$

$

Not available

35

Cub Cadet AQ-008071

LOCK WASHER, 5/16

$

$

Not available

40

Cub Cadet AQ-008154

FLAT WASHER, 5/16 SAE THK

$

$

Not available

68

Cub Cadet AQ-014023

BALL JOINT, STAMPED

$

$

Not available

69

Cub Cadet AQ-014027

BALL JOINT, CAST

$

$

Not available

70

Cub Cadet AQ-014058

CONTROL KNOB

$

$

Not available

92

Cub Cadet AQ-023271

VALVE, CONTROL

$

$

Not available

99

Cub Cadet AQ-849119

SPACER, LONG

$

$

Not available

100

Cub Cadet AQ-849390

VALVE COVER WELDMENT

$

$

Not available

119

Cub Cadet AQ-865355

RH CONTROL HANDLE WELDMENT

$

$

Not available

120

Cub Cadet AQ-865360

LH CONTROL HANDLE WELDMENT

$

$

Not available

122

Cub Cadet AQ-865505

CONTROL TOWER WELDMENT

$

$

Not available
