CB 65 (59A40005727) - Cub Cadet Yanmar Tractor 7.5' Curved Boom Backhoe Attachment Boom Area Parts Diagram

Tractor 7.5' Curved Boom Backhoe Attachment

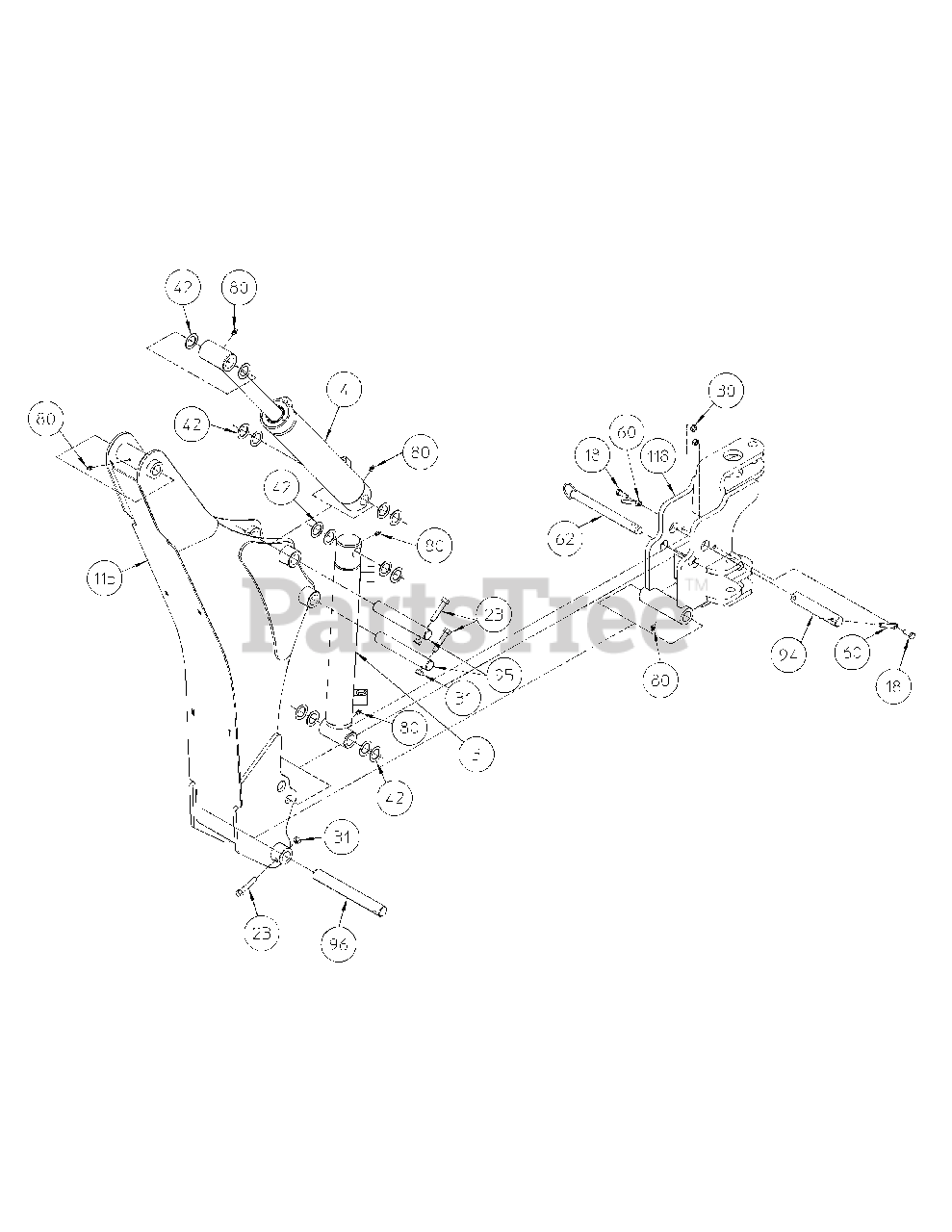

Boom Area Parts Diagram

  • Title

3

Cub Cadet AQ-000237

HYDRAULIC CYLINDER, BOOM

$

$

Not available

4

Cub Cadet AQ-000238

HYDRAULIC CYLINDER, DIPPER

$

$

Not available

18

Cub Cadet AQ-006795

HEX HEAD 5/16-24 X 1.000 GR 5

$

$

Not available

23

Cub Cadet AQ-006877

HEX HEAD CAP SCREW, 3/8-24 X 2.0 GR 8 SAE

$

$

Not available

30

Cub Cadet AQ-007437

NUT, HEX 5/16-24 LOCK

$

$

Not available

31

Cub Cadet AQ-007466

NUT, HEX 3/8-24 LOCK

$

$

Not available

42

Cub Cadet AQ-008283

MACHINE BUSHING, 1 X 1-1/2 X 18GA

$

$

Not available

60

Cub Cadet AQ-013473

RETAINER PIN-SMALL

$

$

Not available

62

Cub Cadet AQ-013501

FASPIN, 3/4 DIA X 7-1/4

$

$

Not available

80

Cub Cadet AQ-014505

GREASE FITTING, 1/4-28, STRT

$

$

Not available

94

Cub Cadet AQ-849101

PIN, 1 DIA X 5-11/16

$

$

Not available

95

Cub Cadet AQ-849104

PIN, 1 DIA X 6-9/16

$

$

Not available

96

Cub Cadet AQ-849106

PIN, 1 DIA X 8-1/2

$

$

Not available

115

Cub Cadet AQ-865310

BOOM WELDMENT

$

$

Not available

118

Cub Cadet AQ-865350

SWING FRAME WELDMENT

$

$

Not available
