CB 2900 (24AE687F710) - Cub Cadet Walk-Behind Blower (2017) Housing Parts Diagram

Walk-Behind Blower

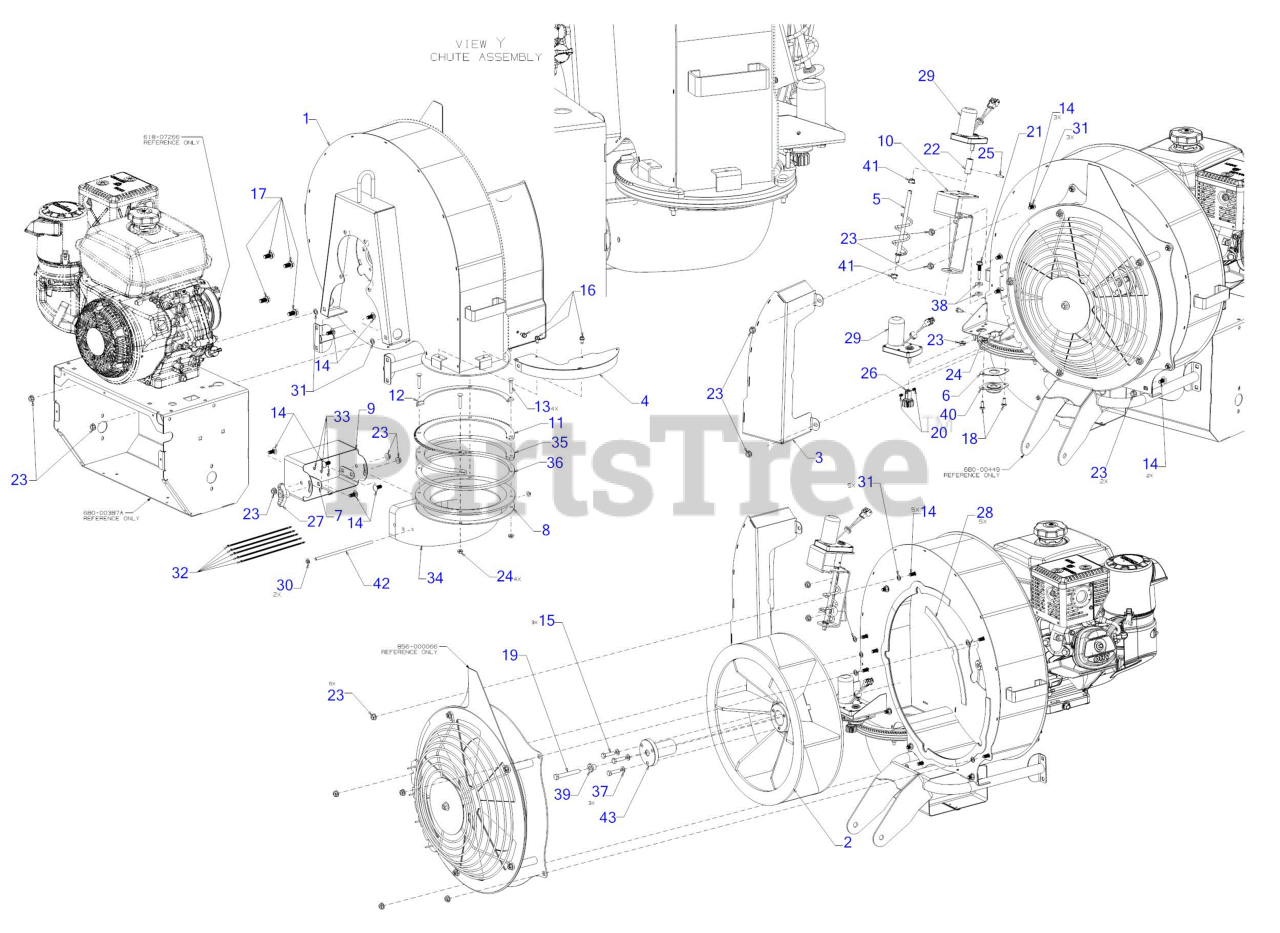

Housing Parts Diagram

  • Title

1

Cub Cadet 680-00391C-4021

IMPELLER/BLOWER HOUSING ASSEMBLY

$420.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-00392A

IMPELLER ASSEMBLY
(Superseded to 759-05842)

$302.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-00443A

RADIAL ACTUATOR COVER ASSEMBLY

Variations

Cub Cadet 680-00443A-4021

RADIAL ACTUATOR CO - CUB YELLOW 2 (4021)

$82.99

$

Usually ships in 3-6 days

0

$72.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-00471A

CHUTE COVER ASSEMBLY

Variations

Cub Cadet 680-00471A-4021

CHUTE COVER ASSEMB - CUB YELLOW 2 (4021)

$63.99

$

Usually ships in 3-6 days

0

$54.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 684-04308A

CHUTE CRANK ASSEMBLY

$39.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-08814

RETAINING PLATE
(Superseded to 703E08814)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-08814-0637

PLATE-RETAINING - POWDER BLACK (0637)

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet 703-08814-4021

PLATE-RETAINING - CUB YELLOW 2 (4021)

$6.49

$

Usually ships in 3-6 days

0

$6.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-10355

CHUTE PIVOT PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10355-0637

CHUTE PIVOT PLATE - POWDER BLACK (0637)

$5.99

$

Usually ships in 3-6 days

0

$5.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703E10429

CHUTE RING GUIDE

$60.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-10492

CHUTE DEFLECTOR NOZZLE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10492-0637

CHUTE DEFLECTOR NO - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-10565A

CRANK MOUNTING BRACKET BLOWER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10565A-4021

CRANK MOUNTING BRA - CUB YELLOW 2 (4021)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703E10608

NOZZLE RING GEAR

$46.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-10611A

CHUTE GEAR STOP PLATE
(Superseded to 703E10611A)

$19.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0256

CARRIAGE BOLT 1/4-20 x 1.50

$4.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0573

SCREW 5/16-18 x 1.25 GR5

$6.49

$

In Stock, Qty 12

0

16

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-06551

BOLT - 3/8-16:.75:GR5:PATCH LOCK

$5.49

$

In Stock, only 2 left!

0

18

Cub Cadet 710-0751

SCREW 1/4-20 x .620 GR5

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-1273

SCREW 3/8-24 x 2.75 GR5

$7.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-1842A

SCREW 1/4-20 x .38

$5.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 711-06112

BELT KEEPER ROD .25 x 1.585

$4.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 711-06562

ADAPTER SHAFT

$45.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 712-04339

FLANGE NUT

$3.99

$

In Stock, only 1 left!

0

24

Cub Cadet 912-3027

LOCK NUT 1/4

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 715-04095

ROLL PIN

$5.49

$

In Stock, only 2 left!

0

26

Cub Cadet 717-05336

MOTOR GEAR

$32.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 720-04122

WING KNOB 5/16-18

$6.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 921-04907

BLOWER HOUSING SEAL

$8.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 724-04210

CHUTE ROTATION MOTOR (NO PITCH)

$180.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 926-0106

PUSH NUT
(Superseded to 726-0106)

$

$

Not available

31

Cub Cadet 726-0201

PUSH NUT

$6.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 726-0317

TIE CABLE 8.5 LG

$4.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 728-04005A

RIVET

$2.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 731-11934A

BLOWER DISCHARGE CHUTE

$111.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 731-12006

CHUTE TOP GUIDE RING

$72.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 731-12130

CHUTE RING GUIDE

$81.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 936-0264

FLAT WASHER

$6.99

$

In Stock, only 3 left!

0

38

Cub Cadet 936-3008

FLAT WASHER

$6.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 738-05213

SHOULDER SPACER .875 X .38 X .55

$27.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 741-04566

BALL BEARING

$15.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 941-0475

BUSHING .380 ID

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 747-06837

CHUTE ROD

$16.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 748-05131

BLOWER IMPELLER LOCK FLANGE

$193.99

$

Usually ships in 3-6 days

0
