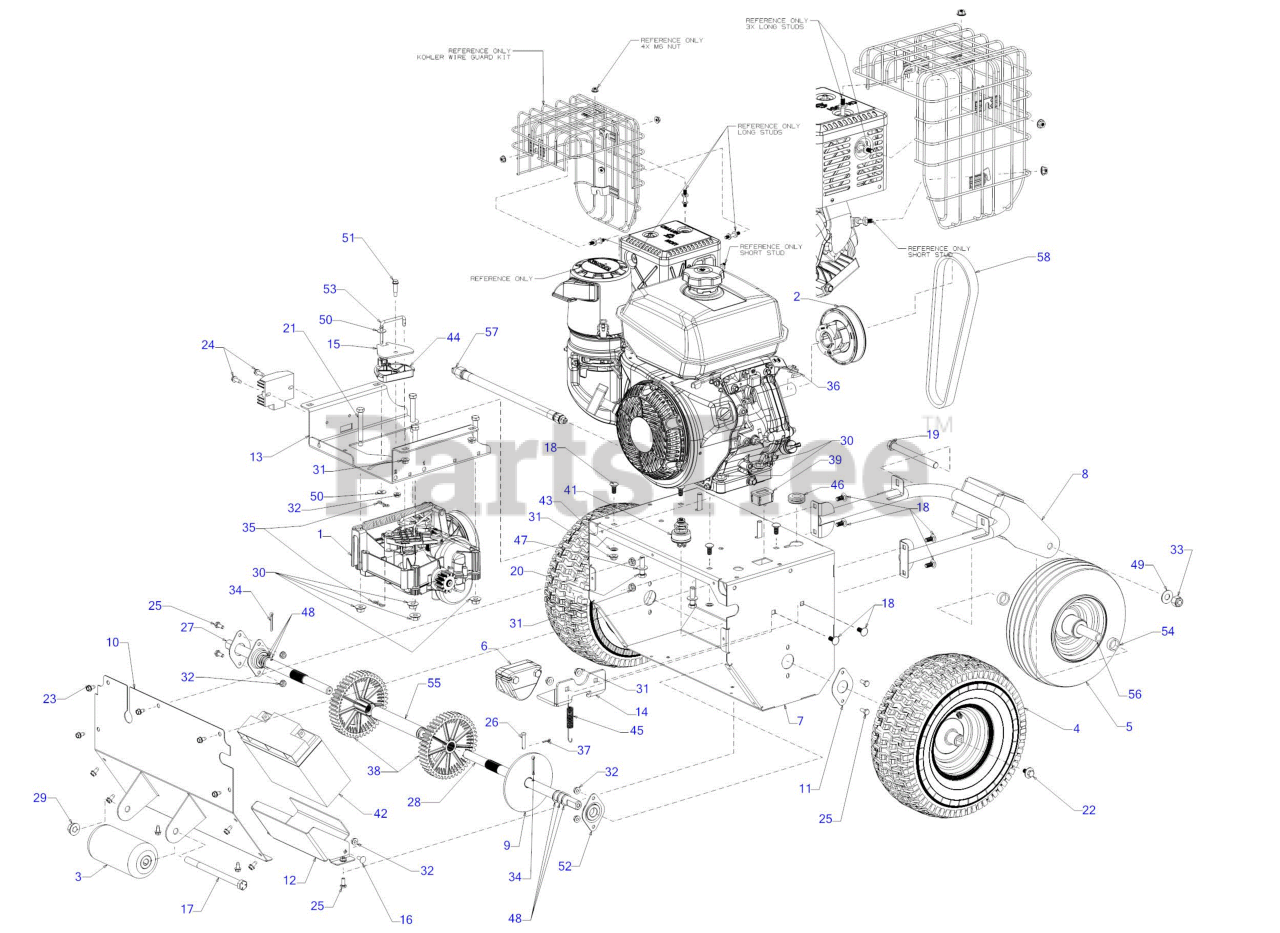

CB 2900 (24AE687F710) - Cub Cadet Walk-Behind Blower (2017) Frame Parts Diagram

Walk-Behind Blower

Frame Parts Diagram

  • Title
1

Cub Cadet 918-07265

TRANSMISSION ASSEMBLY BLOWER

$415.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-07266

PULLEY ASSEMBLY

$89.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 631-05115

ROLLER ASSEMBLY

$26.99

$

In Stock, only 3 left!

0

4

Cub Cadet 634-05248-0499

WHEEL ASSEMBLY COMPLETE

$155.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 734-05199

TIRE 13 X 5 X 6 DELI

Note: (Not Shown)

$61.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 634-04172A-0499

RIM ASSEMBLY (6 x 3.25) W/VALVE

Note: (Not Shown)

$54.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 934-0255

TUBELESS VALVE

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 634-3163

WHEEL ASSEMBLY 11 x 4 x 5

$226.99

$

In Stock, only 1 left!

0

6

Cub Cadet 661-04019

TRANSFER CASE BRAKE ASSEMBLY

$141.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 680-00387A

TRANSMISSION HOUSING ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00387A-4021

TRANSMISSION HOUSI - CUB YELLOW 2 (4021)

$138.99

$

Usually ships in 3-6 days

0

$138.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 680-00449

FRONT WHEEL BRACKET ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00449-4021

FRONT WHEEL BRACKE - CUB YELLOW 2 (4021)

$99.99

$

Usually ships in 3-6 days

0

$99.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 680-00454

ROTOR HUB ASSEMBLY
(Superseded to 680P00454A)

$70.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 680-00473A

FRONT COVER ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00473A-4021

FRONT COVER ASSEMB - CUB YELLOW 2 (4021)

$75.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-08814

RETAINING PLATE
(Superseded to 703E08814)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-08814-0637

PLATE-RETAINING - POWDER BLACK (0637)

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet 703-08814-4021

PLATE-RETAINING - CUB YELLOW 2 (4021)

$6.49

$

Usually ships in 3-6 days

0

$6.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 703E10433A

BATTERY TRAY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703E10433A-4021

BATTERY TRAY - CUB YELLOW 2 (4021)

$35.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-10580A

TRANSMISSION MOUNTING PLATE BLOWER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10580A-4021

TRANSMISSION MOUNT - CUB YELLOW 2 (4021)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 703-10589A

CALIPER MOUNTING BRACKET BLOWER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10589A-4021

CALIPER MOUNTING B - CUB YELLOW 2 (4021)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 703-11014-0637

CABLE GUIDE COVER PLATE

$7.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-0134

CARRIAGE BOLT 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-04012

SCREW 1/2-13 x 7 GR5

$16.99

$

In Stock, only 1 left!

0

18

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0506

SCREW 1/2-20 x 5.50 GR5

$10.99

$

In Stock, only 2 left!

0

20

Cub Cadet 710-0520

SCREW 3/8-16 x 1.50

$4.49

$

In Stock, Qty 6

0

21

Cub Cadet 710-0521

SCREW 3/8-16 x 3 GR8

$5.49

$

In Stock, Qty 11

0

22

Cub Cadet 710-05339A

SCREW 5/16-24 x .750 GR5

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 710-0642

SCREW 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 710-0751

SCREW 1/4-20 x .620 GR5

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 711-05527

CLEVIS PIN

$4.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 711-06630A

13.10" AXLE (LH)

$71.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 711-06631A

14.50" AXLE (RH)

$62.99

$

Usually ships in 3-6 days

0

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 17

0

31

Cub Cadet 712-04339

FLANGE NUT

$3.99

$

In Stock, only 1 left!

0

32

Cub Cadet 912-3027

LOCK NUT 1/4

$4.49

$

In Stock, Qty 17

0

33

Cub Cadet 912-3058

HEX NUT CENTER

$5.99

$

In Stock, Qty 16

0

34

Cub Cadet 714-0162

COTTER PIN-5/32 DIA

$4.99

$

In Stock, Qty 20+

0

35

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

36

Cub Cadet 714-05033

HEX KEY 1/4 X 3/16 X 0.75

$9.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 714-3010

COTTER PIN-3/32X62

$4.99

$

In Stock, only 1 left!

0

38

Cub Cadet 917-05372

NYLON GEAR 45 TOOTH

$32.99

$

Usually ships in 3-6 days

0

39

$95.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 925-06757

ELECTRIC START WIRING HARNESS

Note: (Not Shown)

$94.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 925-06854

KEY SWITCH (3 POSITION) (Add 925-06908)

$138.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 925-06863

SEALED BATTERY 12 VOLT

$137.99

$

Usually ships in 3-6 days

0

43

$6.99

$

In Stock, only 2 left!

0

44

Cub Cadet 731-1313C

CABLE GUIDE

$11.99

$

In Stock, Qty 20+

0

45

Cub Cadet 732-05322

EXTENSION SPRING

$6.49

$

In Stock, only 1 left!

0

46

Cub Cadet 735-0277A

RUBBER GROMMET

$10.99

$

In Stock, only 2 left!

0

47

Cub Cadet 936-0267

FLAT WASHER
(Superseded to 736-0267)

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 736-04161

FLAT WASHER .750X1.000X.060:HD

$6.99

$

In Stock, only 1 left!

0

49

Cub Cadet 736-3084

FLAT WASHER

$4.99

$

In Stock, Qty 20+

0

50

Cub Cadet 736-3090

FLAT WASHER

$6.99

$

In Stock, Qty 11

0

51

Cub Cadet 738-04356

SHOULDER SCREW

$3.49

$

Usually ships in 3-6 days

0

52

Cub Cadet 741-04569

BALL BEARING

$25.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 747-06706

SPEED CONTROL ROD LINK

$18.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 950-0456

SPACER .790 ID 1
(Superseded to 750-0456)

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 750-06573

AXLE SUPORT TUBE

$20.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 750-3197A

WHEEL SPACER

$21.99

$

In Stock, Qty 13

0

57

Cub Cadet 751-15504

OIL DRAIN HOSE

$38.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0
