CB 2900 (24AE687F710) - Cub Cadet Walk-Behind Blower (2016) Blower Parts Diagram

Walk-Behind Blower

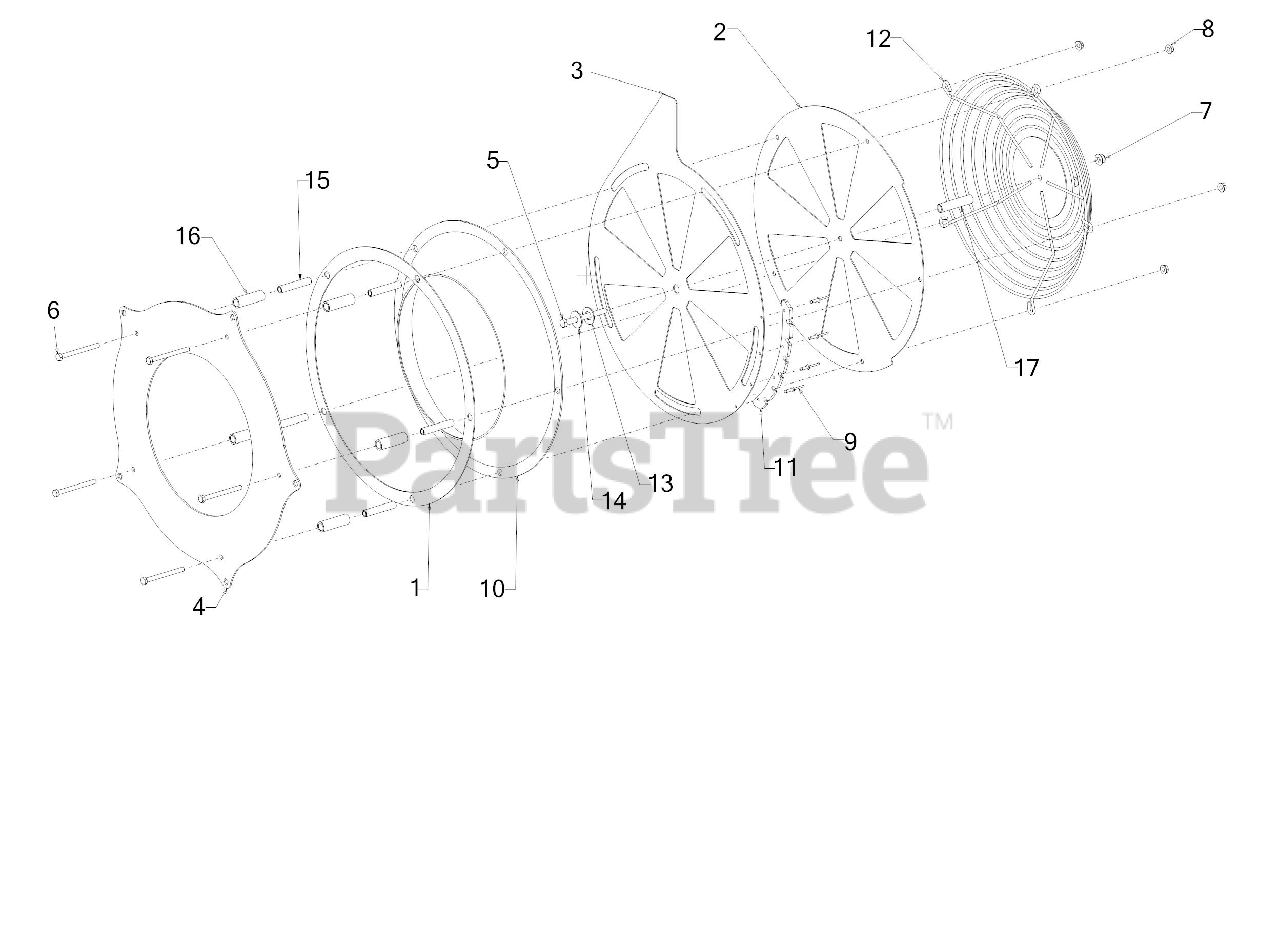

Blower Parts Diagram

  • Title

1

Cub Cadet 703-10235-0637

BELL SUPPORT RING

$33.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-10258-0637

BLOWER STATIC IRIS INTAKE PLATE

$52.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-10259-0637

BLOWER IRIS INTAKE PLATE

$87.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-10581A-0637

BLOWER MOUNT INTAKE PLATE

$50.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-04576

SCREW 3/8-16 x 3.75 GR5

$4.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-1266

SCREW 5/16-18X3.5 GR5

$9.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04339

FLANGE NUT

$3.99

$

In Stock, only 1 left!

0

9

Cub Cadet 728-04021

POP RIVET .187 DIA

$3.99

$

In Stock, only 1 left!

0

10

Cub Cadet 731-11475

BLOWER INLET BELL

$107.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 731-12000

BLOWER IRIS RING GEAR

$26.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 732-05433-0637

BLOWER INTAKE GRILL

$134.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 736-04602

FLAT WASHER NYLON 5/8

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 738-04363

SHOULDER SPACER

$5.99

$

In Stock, only 3 left!

0

15

Cub Cadet 750-06460

SPACER .5 X .334 X 2.75

$5.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 750-06461

TUBE SPACER .75 X .525 X 2.375

$6.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 750-06527

SPACER .625 X 4.06 X 2.87

$7.99

$

Usually ships in 3-6 days

0
