CB 2800 (24A-667A710) - Cub Cadet Walk-Behind Blower (2017) Impeller Housing Parts Diagram

Walk-Behind Blower

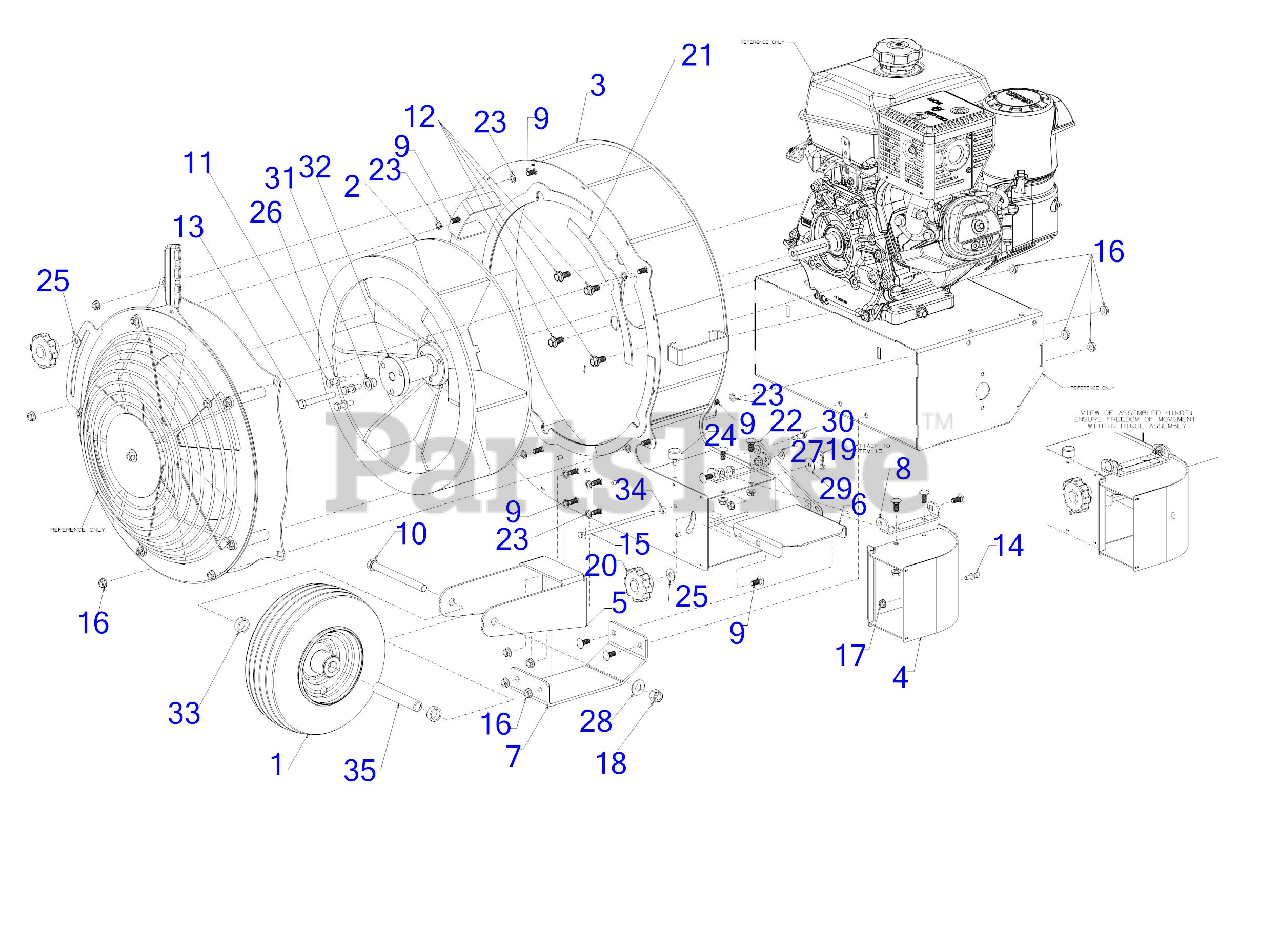

Impeller Housing Parts Diagram

  • Title

1

Cub Cadet 634-3163

WHEEL ASSEMBLY 11 x 4 x 5

$226.99

$

In Stock, only 1 left!

0

2

Cub Cadet 680-00392A

IMPELLER ASSEMBLY
(Superseded to 759-05842)

$302.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-00463C

IMPELLER/BLOWER HOUSING ASSEMBLY

Note: (Choose Color When Ordering)

Variations

Cub Cadet 680-00463C-4021

IMPELLER/BLOWER HO - CUB YELLOW 2 (4021)

$375.99

$

Usually ships in 3-6 days

0

$375.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-00470A

CHUTE ELBOW ASSEMBLY

Note: (Choose Color When Ordering)

Variations

Cub Cadet 680-00470A-0637

CHUTE ELBOW ASSEMB - POWDER BLACK (0637)

$99.99

$

Usually ships in 3-6 days

0

$99.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-10685A

FRONT WHEEL BRACKET MOUNT

Note: (Choose Color When Ordering)

Variations

Cub Cadet 703-10685A-4021

FRONT WHEEL BRACKE - CUB YELLOW 2 (4021)

$63.99

$

Usually ships in 3-6 days

0

$63.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-10695

BLOWER DEFLECTOR PLATE

Note: (Choose Color When Ordering)

Variations

Cub Cadet 703-10695-0637

BLOWER DEFLECTOR P - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-11090

BRACKET-HOUSING SUPPORT
(Superseded to 703-11090-4021)

Variations

Cub Cadet 703-11090-4021

YELLOW BRACKETHOUSING - CUB YELLOW 2 (4021)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-11121

BRACKET-BLOWER HINGE
(Superseded to 703-11121-0637)

Variations

Cub Cadet 703-11121-0637

BLACK BRACKETBLOWER H - POWDER BLACK (0637)

$22.99

$

Usually ships in 3-6 days

0

$22.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0506

SCREW 1/2-20 x 5.50 GR5

$10.99

$

In Stock, only 2 left!

0

11

Cub Cadet 710-0573

SCREW 5/16-18 x 1.25 GR5

$6.49

$

In Stock, Qty 13

0

12

Cub Cadet 710-06551

BOLT - 3/8-16:.75:GR5:PATCH LOCK

$5.49

$

In Stock, only 2 left!

0

13

Cub Cadet 710-1273

SCREW 3/8-24 x 2.75 GR5

$7.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 911-04069

PIN 1/4-20

$8.49

$

In Stock, Qty 20+

0

15

Cub Cadet 711-06730

PIN CLEVIS .25 X 6.50
(Superseded to 911-06730)

$37.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 712-04339

FLANGE NUT

$3.99

$

In Stock, only 1 left!

0

17

Cub Cadet 912-3027

LOCK NUT 1/4

$4.49

$

In Stock, Qty 18

0

18

Cub Cadet 912-3058

HEX NUT CENTER

$5.99

$

In Stock, Qty 16

0

19

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

20

Cub Cadet 720-05057

KNOB-5/16-18

$19.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 721-04907

SEAL BLOWER HOUSING
(Superseded to 921-04907)

$8.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 723-04008A

CHUTE STRAP

$9.99

$

In Stock, Qty 20+

0

23

Cub Cadet 726-0201

PUSH NUT

$6.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 735-05006

BUMPER .62 DIA x .50

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 936-0159

FLAT WASHER
(Superseded to 736-0159)

$

$

Not available

26

Cub Cadet 936-0264

FLAT WASHER

$6.99

$

In Stock, only 3 left!

0

27

Cub Cadet 736-0278

FLAT WASHER

$5.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 736-3084

FLAT WASHER

$4.99

$

In Stock, Qty 20+

0

29

Cub Cadet 736-3092

FLAT WASHER

$3.99

$

In Stock, Qty 9

0

30

Cub Cadet 738-04395

SHOULDER SCREW

$4.49

$

In Stock, only 1 left!

0

31

Cub Cadet 738-05213

SHOULDER SPACER .875 X .38 X .55

$27.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 748-05131

BLOWER IMPELLER LOCK FLANGE

$193.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 950-0456

SPACER .790 ID 1
(Superseded to 750-0456)

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 750-05297

SPACER

$4.49

$

In Stock, Qty 5

0

35

Cub Cadet 750-3197A

WHEEL SPACER

$21.99

$

In Stock, Qty 13

0
