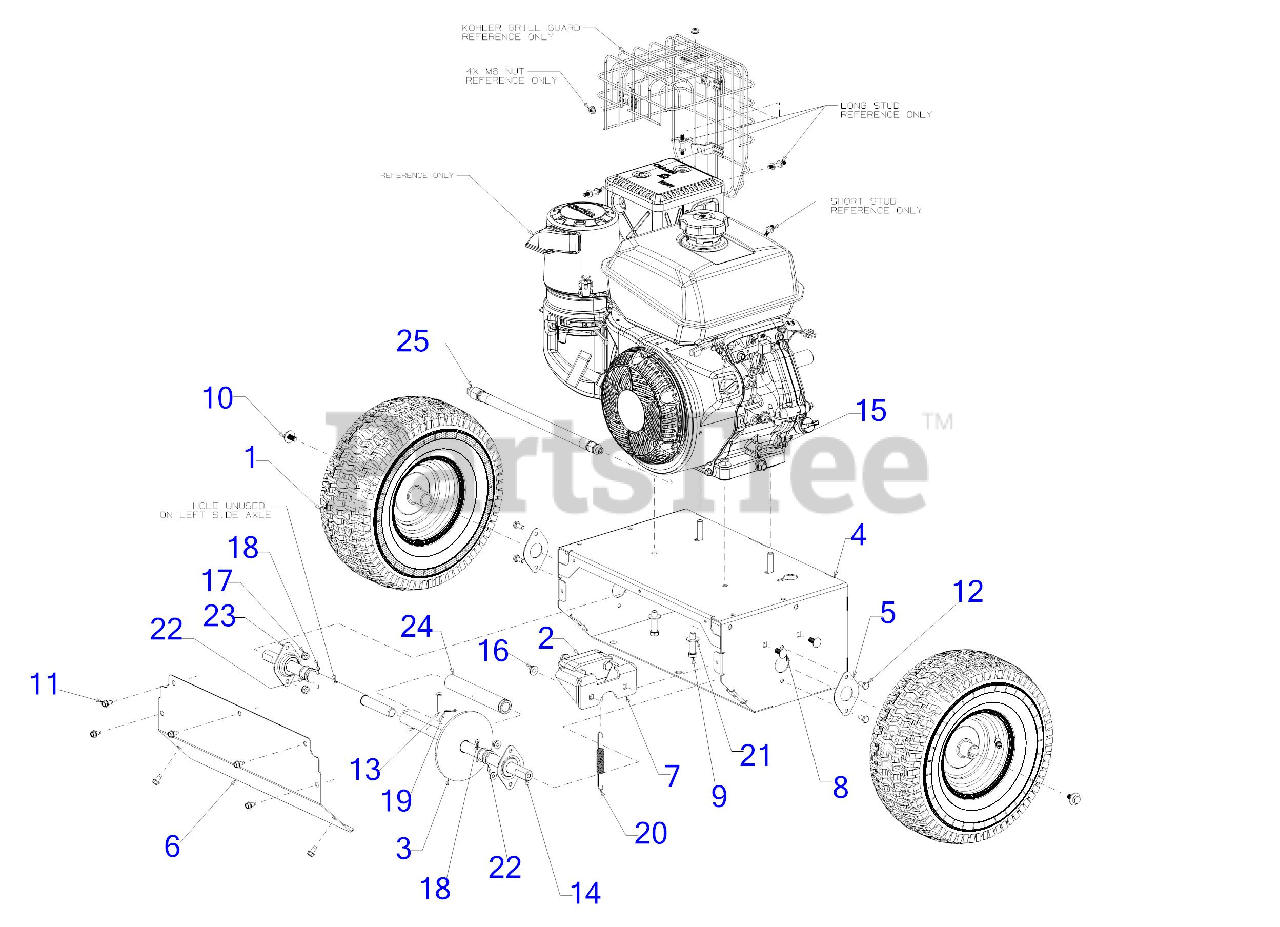

CB 2800 (24A-667A710) - Cub Cadet Walk-Behind Blower (2016) Frame Parts Diagram

Walk-Behind Blower

Frame Parts Diagram

  • Title

1

WHEEL ASSEMBLY

$

$

Not available

1

Cub Cadet 734-05199

TIRE 13 X 5 X 6 DELI

Note: (Not Shown)

$61.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 634-04172A

RIM ASSEMBLY (6 x 3.25) W/VALVE

Note: *CHOOSE COLOR WHEN ORDERING*(Not Shown)

Variations

Cub Cadet 634-04172A-0499

RIM ASM 6X3.25 - CUB BEIGE (0499)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04172A-0662

RIM ASM 6X3.25 W/V - OYSTER GRAY (0662)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04172A-0674

RIM ASM 6X3.25 W/V - YARDMAN YELLOW (0674)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04172A-4028

RIM ASM 6X3.25 W/V - SEARS YELLOW (4028)

$50.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04172A-4042

RIM ASM 6X3.25 W/V - CRAFTSMAN GRAY (4042)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04172A-4044

RIM ASM 6X3.25 W/V - CRAFTSMAN RED (4044)

$50.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 934-0255

TUBELESS VALVE

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 661-04019

TRANSFER CASE BRAKE ASSEMBLY

$141.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-00454

ROTOR HUB ASSEMBLY
(Superseded to 680P00454A)

$70.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-00462B

BLOWER BASE ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00462B-4021

BLOWER BASE ASSEMB - CUB YELLOW 2 (4021)

$109.99

$

Usually ships in 3-6 days

0

$109.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08814

RETAINING PLATE
(Superseded to 703E08814)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-08814-0637

PLATE-RETAINING - POWDER BLACK (0637)

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet 703-08814-4021

PLATE-RETAINING - CUB YELLOW 2 (4021)

$6.49

$

Usually ships in 3-6 days

0

$6.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-10421A

BLOWER BACKING COVER PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10421A-4021

BLOWER BACKING COV - CUB YELLOW 2 (4021)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-10589A

CALIPER MOUNTING BRACKET BLOWER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10589A-4021

CALIPER MOUNTING B - CUB YELLOW 2 (4021)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0520

SCREW 3/8-16 x 1.50

$4.49

$

In Stock, Qty 7

0

10

Cub Cadet 710-05339A

SCREW 5/16-24 x .750 GR5

$4.49

$

In Stock, Qty 19

0

11

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0751

SCREW 1/4-20 x .620 GR5

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 711-05527

CLEVIS PIN

$4.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 711-06669A

AXLE

$

$

Not available

15

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04339

FLANGE NUT

$3.99

$

In Stock, only 1 left!

0

17

Cub Cadet 912-3027

LOCK NUT 1/4

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 714-0162

COTTER PIN-5/32 DIA

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 714-3010

COTTER PIN-3/32X62

$4.99

$

In Stock, only 1 left!

0

20

Cub Cadet 732-05322

EXTENSION SPRING

$6.49

$

In Stock, only 1 left!

0

21

Cub Cadet 936-0267

FLAT WASHER
(Superseded to 736-0267)

$4.49

$

In Stock, only 1 left!

0

22

Cub Cadet 736-04161

FLAT WASHER .750X1.000X.060:HD

$6.99

$

In Stock, only 1 left!

0

23

Cub Cadet 741-04569

BALL BEARING

$25.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 750-06573

AXLE SUPORT TUBE

$20.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 751-15504

OIL DRAIN HOSE

$38.99

$

Usually ships in 3-6 days

0
