CAP 21509R (80325) - Snapper 21" Walk-Behind Mower, 5hp Front Wheel Parts Diagram

21" Walk-Behind Mower, 5hp

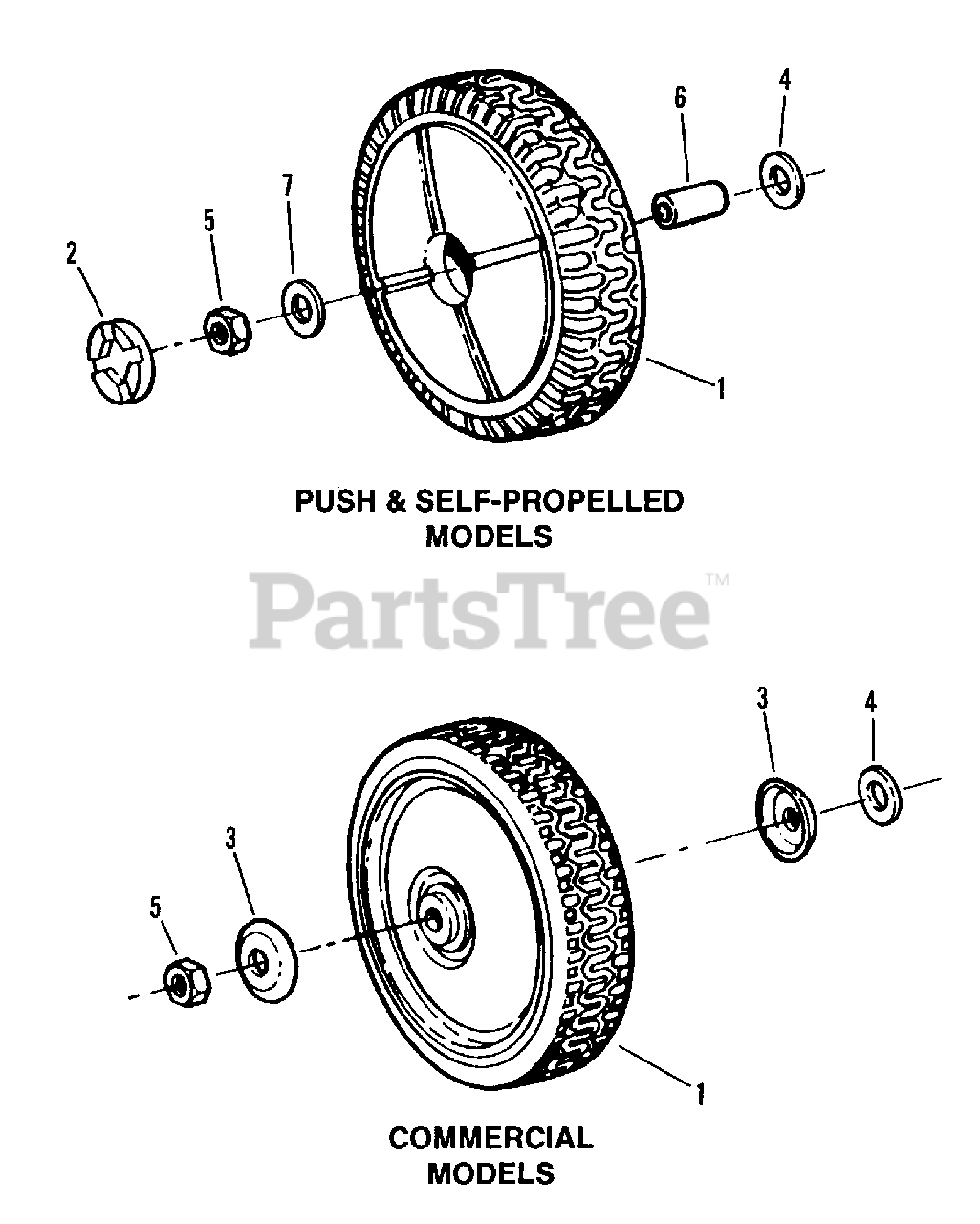

Front Wheel Parts Diagram

  • Title
1

Snapper 7019195

WHEEL, 7 x 1.75 Plastic Rim (Standard)

Note: Was 19419

$

$

Not available

Snapper 7022799

WHEEL, 7 x 1.75 Steel Rim (Commercial)

$

$

Currently unavailable

2

Snapper 7017829

PLUG, Wheel
(Superseded to 7017829YP)

$3.99

$

In Stock, Qty 6

0

3

Snapper 7031121

HUB-CAP
(Superseded to 7031121YP)

$6.99

$

In Stock, Qty 10

0

4

Snapper 7031961

WASHER, 7/16 Flat
(Superseded to 703964)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7090377

NUT, 7/16-20 Hex Center Lock
(Superseded to 7090377SM)

$5.49

$

In Stock, Qty 20+

0

6

Snapper 7012309

BUSHING, Axle
(Superseded to 7012309YP)

$5.99

$

In Stock, only 4 left!

0

7

Snapper 7090500

WASHER, 7/16" ID x 1" OD SAE

Note: Was 91172, 7/8"

$2.99

$

In Stock, Qty 7

0
