CAP 21509R (80325) - Snapper 21" Walk-Behind Mower, 5hp Drive System Self-Propelled Parts Diagram

21" Walk-Behind Mower, 5hp

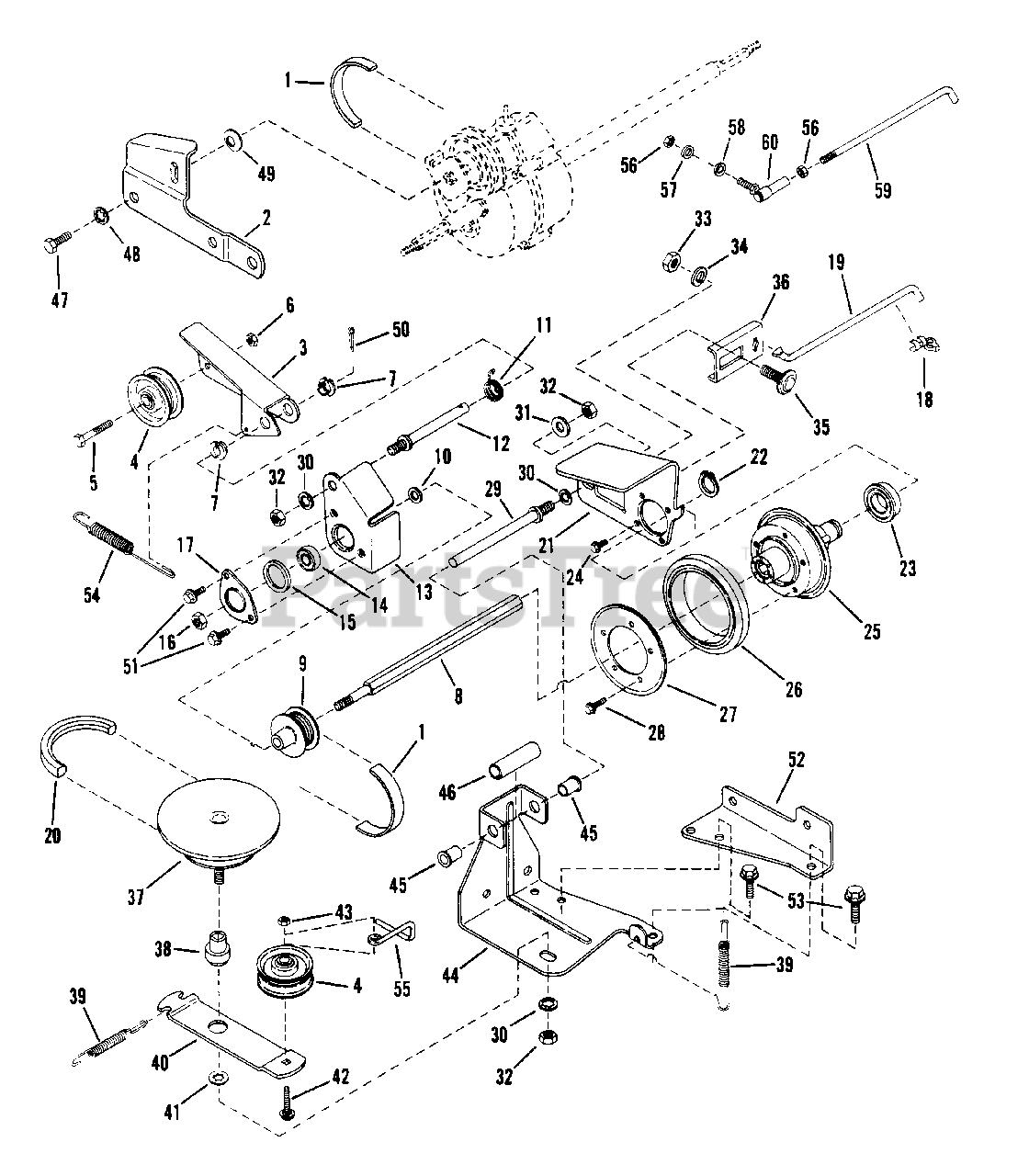

Drive System Self-Propelled Parts Diagram

  • Title

1

Snapper 7012354

BELT, Poly-Vee
(Superseded to 7012354YP)

$13.99

$

In Stock, Qty 18

0

2

Snapper 7034179

LINK, Differential
(Superseded to 7034179BMYP)

Note: Was 31880

$20.99

$

Usually ships in 2-12 days

0

Snapper 7051921

ASSEMBLY, Clutch Idler
(Superseded to 7051921YP)

Note: (Includes items 3 thru 7)

$108.99

$

In Stock, only 1 left!

0

3

Snapper 7032832

ARM, Clutch Idler
(Superseded to 7032832AYP)

$22.99

$

Usually ships in 2-12 days

0

4

Snapper 7012124

PULLEY, Idler
(Superseded to 7012124YP)

$18.99

$

In Stock, only 3 left!

0

5

Snapper 7090552

SCREW, 1/4-28 x 1-3/8" Hex Head Cap
(Superseded to 703828)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 7090303

NUT, 1/4-28 Hex Lock
(Superseded to 703972)

$3.49

$

In Stock, Qty 8

0

7

Snapper 7012117

BUSHING, 3/8 I.D. Nylon
(Superseded to 7012117SM)

$4.49

$

In Stock, Qty 13

0

8

Snapper 7072284

SHAFT, Hex
(Superseded to 7072284YP)

Note: Was 23744

$

$

Not available

9

Snapper 7024521

PULLEY, Poly-V
(Superseded to 7019383YP)

Note: Was 17736 (For Standard Models)

$54.99

$

In Stock, Qty 12

0

Snapper 7019383

PULLEY, Poly-V
(Superseded to 7019383YP)

Note: (For Commercial Models)

$54.99

$

In Stock, Qty 12

0

10

Snapper 7012316

WASHER
(Superseded to 703946)

$3.99

$

In Stock, Qty 20+

0

11

Snapper 7012126

SPRING, Torsion
(Superseded to 7012126YP)

$4.49

$

In Stock, only 1 left!

0

12

Snapper 7012111

STUD
(Superseded to 703836)

$8.49

$

In Stock, only 1 left!

0

13

Snapper 7031873

HOLDER, Bearing (Inner Half)
(Superseded to 7031873YP)

$

$

Not available

14

Snapper 7028014

BEARING, Ball
(Superseded to 7028014YP)

Note: Was 12304

$17.99

$

In Stock, Qty 20+

0

15

Snapper 7011025

O-RING
(Superseded to 704008)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7090289

NUT, 3/8 Hex Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

17

Snapper 7031809

HOLDER, Bearing (Outer Half)
(Superseded to 7031809YP)

$4.49

$

In Stock, Qty 10

0

18

Snapper 7010937

CLIP, 1/4 Right Arc (Transfer Rod)
(Superseded to 7010937YP)

$7.49

$

In Stock, Qty 5

0

19

Snapper 7023790

ROD, Transfer
(Superseded to 7023790YP)

Note: (For Standard Models)

$9.49

$

In Stock, Qty 11

0

20

Snapper 7012508

BELT, Engine Drive
(Superseded to 7012508YP)

$16.99

$

In Stock, Qty 20+

0

Snapper 7501000

ASSEMBLY, Driven Disc
(Superseded to 7600109YP)

Note: Was 7053225 or 57444 (Includes 21 thru 28)

$143.99

$

Usually ships in 2-12 days

0

21

Snapper 7038486

PLATE, Thrust

$

$

Not available

22

Snapper 7010746

RING, Retaining
(Superseded to 703975)

$3.99

$

In Stock, Qty 20+

0

23

Snapper 7026693

BEARING, Ball
(Superseded to 707608)

Note: Was 15474

$9.49

$

In Stock, Qty 20+

0

24

Snapper 7090981

SCREW, #10-32 x 1/4" Self-Tapping Machine
(Superseded to 704061)

$3.99

$

In Stock, Qty 16

0

25

Snapper 7061276

ASSEMBLY, Hub
(Superseded to 7061276YP)

Note: Was 51616 (Includes 11108 Bushing & 90913 Screws)

$75.99

$

In Stock, Qty 11

0

26

Snapper 7023364

RING, Driven
(Superseded to 704059)

$14.99

$

In Stock, Qty 20+

0

27

Snapper 7031013

PLATE, Ring Retaining
(Superseded to 7031013YP)

$5.99

$

In Stock, Qty 13

0

28

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 11

0

29

Snapper 7012125

GUIDE, Thrust Plate
(Superseded to 703837)

$8.49

$

In Stock, only 1 left!

0

30

Snapper 7090390

WASHER, 3/8 Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

31

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

32

Snapper 7091630

NUT, 3/8-24 Hex
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, only 2 left!

0

33

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196 (For Standard Models)

$3.49

$

In Stock, Qty 20+

0

34

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

Note: (For Standard Models)

$3.49

$

In Stock, Qty 20+

0

35

Snapper 7090316

BOLT, 5/16-18 x 3/4" Carriage
(Superseded to 703225)

Note: Was 91097 (For Standard Models)

$3.99

$

In Stock, Qty 20+

0

36

Snapper 7032831

CONNECTOR, Transfer Rod
(Superseded to 7032831YP)

Note: (For Standard Models)

$12.99

$

Usually ships in 2-12 days

0

37

ASSEMBLY, Drive Disc

Note: Order Kit P/N 6-0710 for replacement

$

$

Not available

38

BUSHING

$

$

Not available

39

Snapper 7029025

SPRING (Wheel Drive & Idler)
(Superseded to 7029025YP)

Note: Was 17326

$5.99

$

In Stock, only 4 left!

0

40

Snapper 7032116

ARM, Idler
(Superseded to 7032116YP)

$13.99

$

In Stock, Qty 9

0

41

Snapper 7013847

RETAINER, 3/8 Bolt
(Superseded to 703986)

$4.49

$

In Stock, only 1 left!

0

42

Snapper 7090947

BOLT, 1/4-20 x 1-3/8" Carriage
(Superseded to 7090947YP)

$5.99

$

In Stock, Qty 5

0

43

Snapper 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$

$

Not available

Snapper 7050751

ASSEMBLY, Deck Bracket
(Superseded to 7050751YP)

Note: (Includes items 44 thru 46)

$29.99

$

Usually ships in 2-12 days

0

44

Snapper 7033774

BRACKET, Deck
(Superseded to 7033774YP)

Note: Was 31919 (Now 17696 + 33774)

$

$

Not available

45

Snapper 7012306

BUSHING, Flange
(Superseded to 703973)

$5.99

$

In Stock, Qty 15

0

46

Snapper 7021758

SPACER
(Superseded to 703941)

$27.99

$

In Stock, only 4 left!

0

47

Snapper 7090534

SCREW, 5/16-18 x 1/2" Hex Head Cap
(Superseded to 704317)

$4.49

$

Usually ships in 2-12 days

0

48

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

49

Snapper 7011079

WASHER, Spring
(Superseded to 7011079YP)

$4.99

$

In Stock, Qty 20+

0

50

Snapper 7091597

PIN, 3/32 x 1/2" Cotter
(Superseded to 703312)

Note: Was 90555

$3.99

$

In Stock, Qty 20+

0

51

Snapper 7091122

SCREW, 1/4-20 x 1/2" Self-Tapping
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 11

0

52

Snapper 7037732

BRACKET, Strap
(Superseded to 7037732YP)

Note: (For Commercial)

$40.99

$

Usually ships in 2-12 days

0

53

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

54

Snapper 7012122

SPRING, Clutch
(Superseded to 7012122YP)

$9.49

$

In Stock, Qty 20+

0

55

Snapper 7016380

SCRAPER, Drive Pulley
(Superseded to 7016380YP)

$22.99

$

Usually ships in 2-12 days

0

56

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

Note: (For Commercial Models)

$3.49

$

Usually ships in 2-12 days

0

57

Snapper 7091294

WASHER, 1/4 Flat
(Superseded to 703332)

Note: Was 90055 (For Commercial Models)

$4.49

$

In Stock, Qty 20+

0

58

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: (For Commercial Models)

$4.49

$

In Stock, Qty 7

0

59

Snapper 7015753

JOINT, Ball
(Superseded to 7015753YP)

Note: (For Commercial Models)

$10.99

$

In Stock, only 1 left!

0

60

Snapper 7015752

LINK, Transfer
(Superseded to 7015752YP)

Note: (For Commercial Models)

$22.99

$

Usually ships in 2-12 days

0
